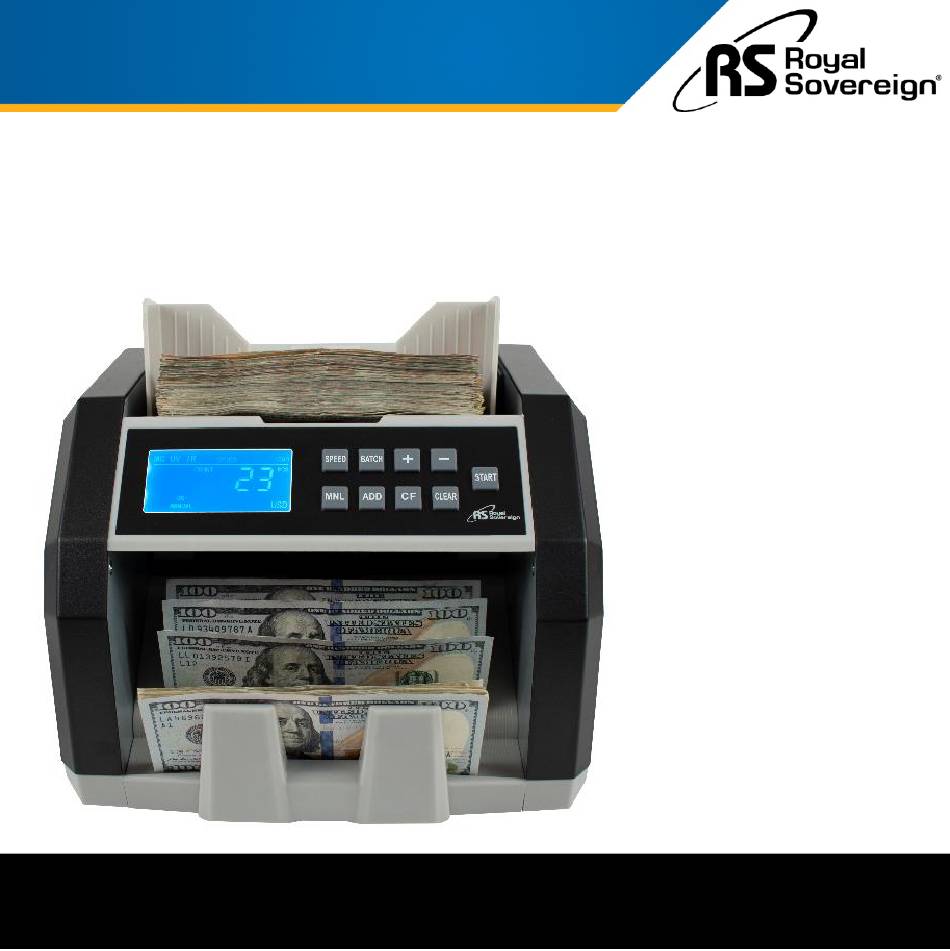

- Page 1 Owner's Manual BILL COUNTER WITH COUNTERFEIT DETECTION RBC-ED200 Please read and retain these instructions. Royal Sovereign International, Inc. To register your product, please go to www.royalsovereign.com...
- Page 2 Thank you for purchasing the Royal Sovereign Bill Counter with Counterfeit Detection - RBC-ED200. This manual will provide you with safety information, instructions for optimal use, and proper care and maintenance for your product. Please read this manual carefully before operating.
-
Page 3: Safety Instructions
Do not take apart the machine. When service or repairs are needed, bring to a qualified service repair technician or contact Royal Sovereign Customer Service. When unplugging the power cord from the outlet, grip the plug to pull it out. -
Page 4: Box Contents
BOX CONTENTS Bill Counter Power Cord PRODUCT VIEW Carrying Handle Hopper Control Panel Bill Receiving Vanes... - Page 5 QUICK START GUIDE Plug the power cable into the back of the unit and into the wall power outlet (A). On the back of the machine, flip the power switch to power on (B). The machine will go through an automatic self-diagnostics test to ensure accurate bill counting.
-
Page 6: Control Panel
CONTROL PANEL Counterfeit Speed Counterfeit Batch Start Indicators Indicators Button Buttons Button Auto/Manual Speed Clear Button Button Button Button... -
Page 7: Product Operation
PRODUCT OPERATION Attach the power cable to the back of the machine, plug into a three-prong outlet, and turn the switch on. • The unit will conduct an automatic self-diagnostics to ensure accurate counts. • After five seconds of the counting wheels spinning, the screen will display “0”. •... -
Page 8: Maintenance Of The Machine
If necessary, the glass surfaces of the detectors may be wiped with a soft cloth damped with alcohol. To get the best results out of your bill counter, Royal Sovereign recommends using Royal Sovereign Cleaning Cards (RBC-CLN) to remove dirt, dust, oils, and other contaminates from bill counters. With the machine on, simply run the cleaning card through the machine like a bill. -
Page 9: Troubleshooting
Refer to the chart below to solve the errors. Error Code Reason Solutions Clean the sensor or contact Royal Sovereign to UV Sensor replace sensor if error code persists. Clean the sensor or contact Royal Sovereign to Left Counting Sensor replace sensor if error code persists. - Page 10 Remove last note from stacker. Note flagged due to dimensional error Press “START” button to continue. If you are receiving error codes above, check the machine for dust. If you continue to receive error codes, please contact Royal Sovereign’s Service Center at 1-800-397-1025.
-
Page 11: Specifications
SPECIFICATIONS Model RBC-ED200 AC 100V ~ 240V 50/60 Hz Power < 70W Power Consumption Temperature Range of 32~104 °F / 0~40 °C Operation 500 notes Hopper Capacity 1,500 bills per minute Counting Speed 4.3” x 2.0” ~ 7.0” x 3.3” / 110 x 50 ~ 180 x 85 (mm) -
Page 12: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only. This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided.
