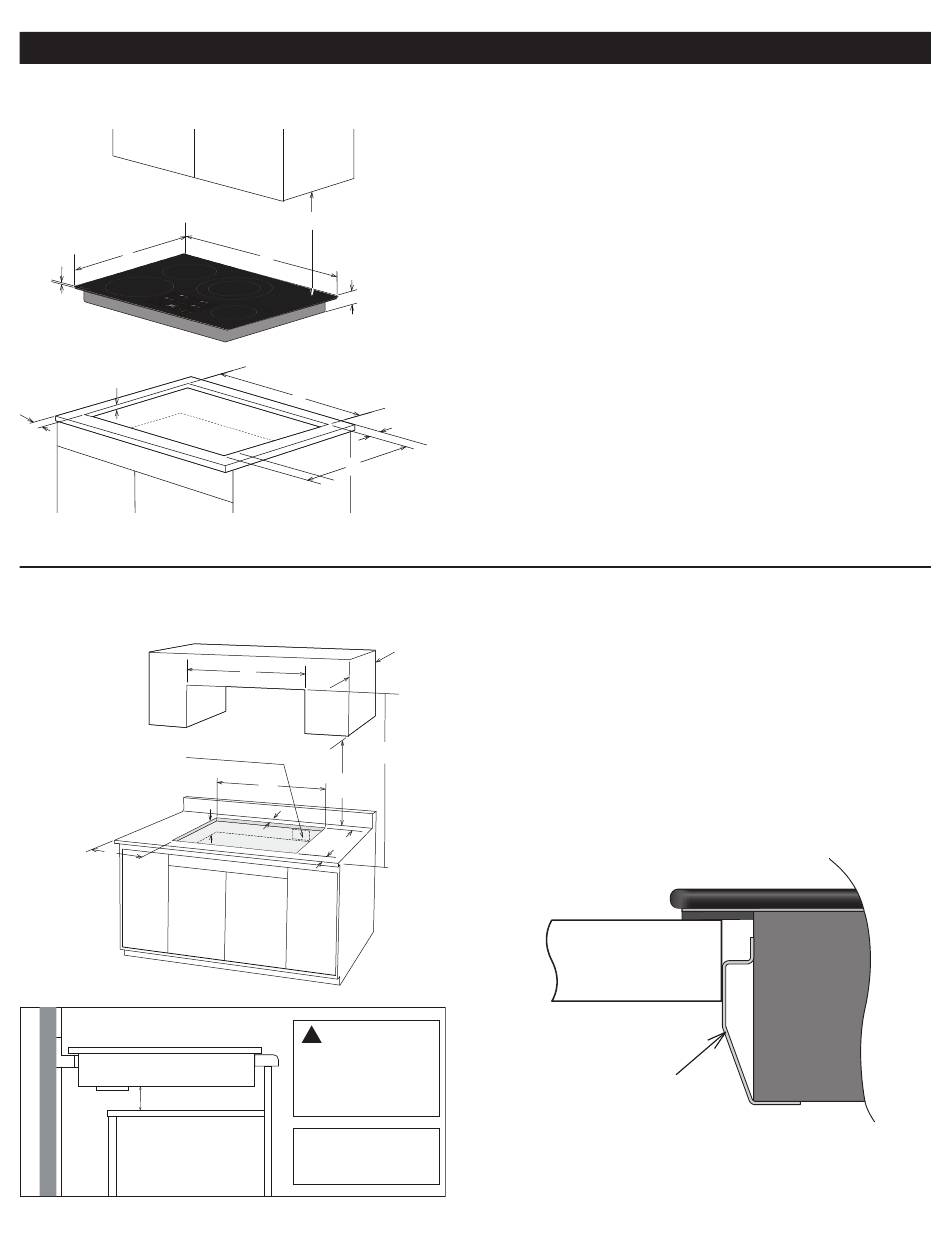

INSTALLATION – 30" MODEL SDH3042DB
COOKTOP AND CUTOUT DIMENSIONS
B
C
G
H
Figure 3
COOKTOP CUTOUT OPENING DIMENSIONS
Approximate location
of junction box,
min. 12" (304.8 mm)
below cooktop
G
H
Figure 4
2-1/2" (63.5 mm)
OVEN
Figure 5
(See Figure 3)
30" (76.2 cm) min. for cabinet
I*
* Do not obstruct these areas.
A
D
E
J
F
(See Figure 4)
B
A
C
E
D
I
F
!
CAUTION
It is very important to
keep 2-1/2" (63.5 mm)
distance between the
cooktop and the oven.
Note: do not put a
divider between the
oven and cooktop
A. 30" (762 mm)
B. 21" (533 mm)
C. 5/32" (4 mm)
D. 2-5/32" (55 mm)
E. 29-5/8" (753 mm)
F. 19-7/8" (505 mm)
G. Minimum: 13/32" (10 mm)
Maximum: 25/32" (20mm)
H. Minimum: 2" (51 mm)
I. Minimum: 30" (762 mm)
J. Minimum: 2" (51 mm)
A. 30" (762 mm)
B. 13" (330 mm)
C. 30" (762 mm) min to unprotected wood
D. 18" (457 mm)
E. 29-5/8" (753 mm)
F. 19-7/8" (505 mm)
G. 4-1/2 (114mm)
H. Minimum: 2" (51 mm)
I. Minimum: 2" (51 mm)
Spacer Graphic Profile
Countertop
Do not remove spacer
Figure 6
NOTE: The cooktops include spacers on both sides to ensure proper
airflow once installed. Do not remove the spacers. See Figure 6 above.
3
