The cable from the appliance is equipped with
3-wire.
IMPORTANT: Use the 3-wire cable from Home Power Supply
where local codes permit a 3-wire connection.
Use the 4-wire cable from Home Power Supply where local codes
do not allow grounding through neutral.
Connecting to a 3-wire power OR 4-wire power supply cable
electrical system
1. Disconnect the power supply.

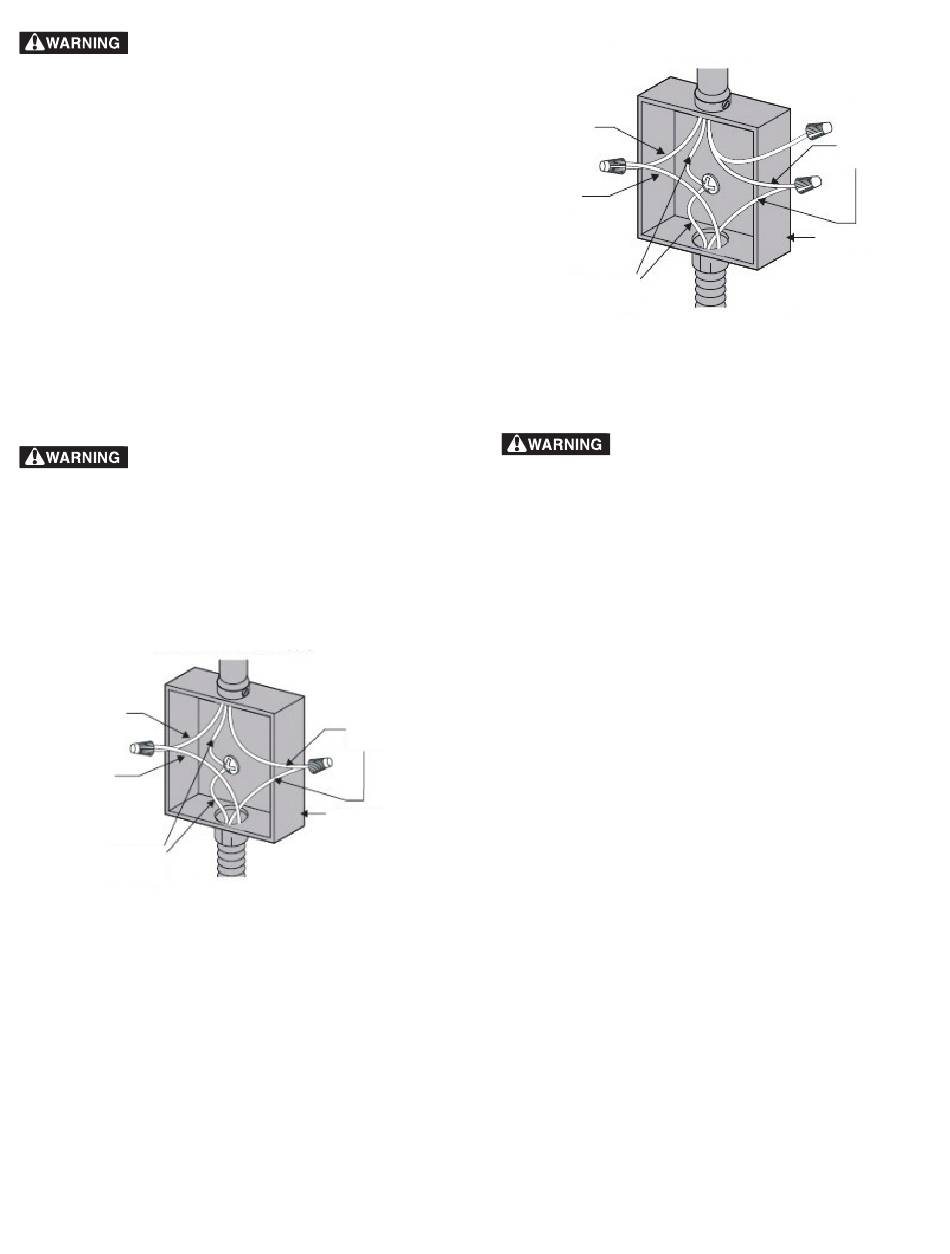

2. In the circuit breaker, fuse box, or junction box, connect appliance
and power supply cable wires as shown below (3-wire, Figure 1;
4-wire, Figure 2).
3. Circuit breaker fuse rating must be above 40 A, and wire should
be 2/8 or 3/8 copper.
4. Minimum acceptable size of conductors should be no less than
10AWG, copper only, and no less than 167°F.
5. A wire-binding screw or stud used in the wire terminal should
be 10 or larger.
• The electrical power to the cooktop must be shut off while line
connections are being made. Failure to do so could result in
serious injury or death.
• An extension cord must not be used with this appliance. Such
use may result in a fire, electrical shock or other personal injury.
Cable from Power Supply
Red Wire
Red Wire
Green Wire
(Grounding)
Cable from Appliance
3-Wire Cable from Home Power Supply
Figure 1
Figure 2
per wire connection only, if you have aluminum house wiring, use
only special connectors which are approved for joining copper and
aluminum wires conform with local codes and ordinances. Follow the
electrical connector manufacturer's recommended procedure closely.
IMPORTANT - Save for the local electrical inspector's use.
Black Wire
Junction Box
2
Cable from Power Supply
Red Wire
Red Wire
Green Wire
(Grounding)
Cable from Appliance
4-Wire Cable from Home Power Supply
The cooktop conduit wiring is approved for cop-
White Wire
Black Wire
Junction Box
