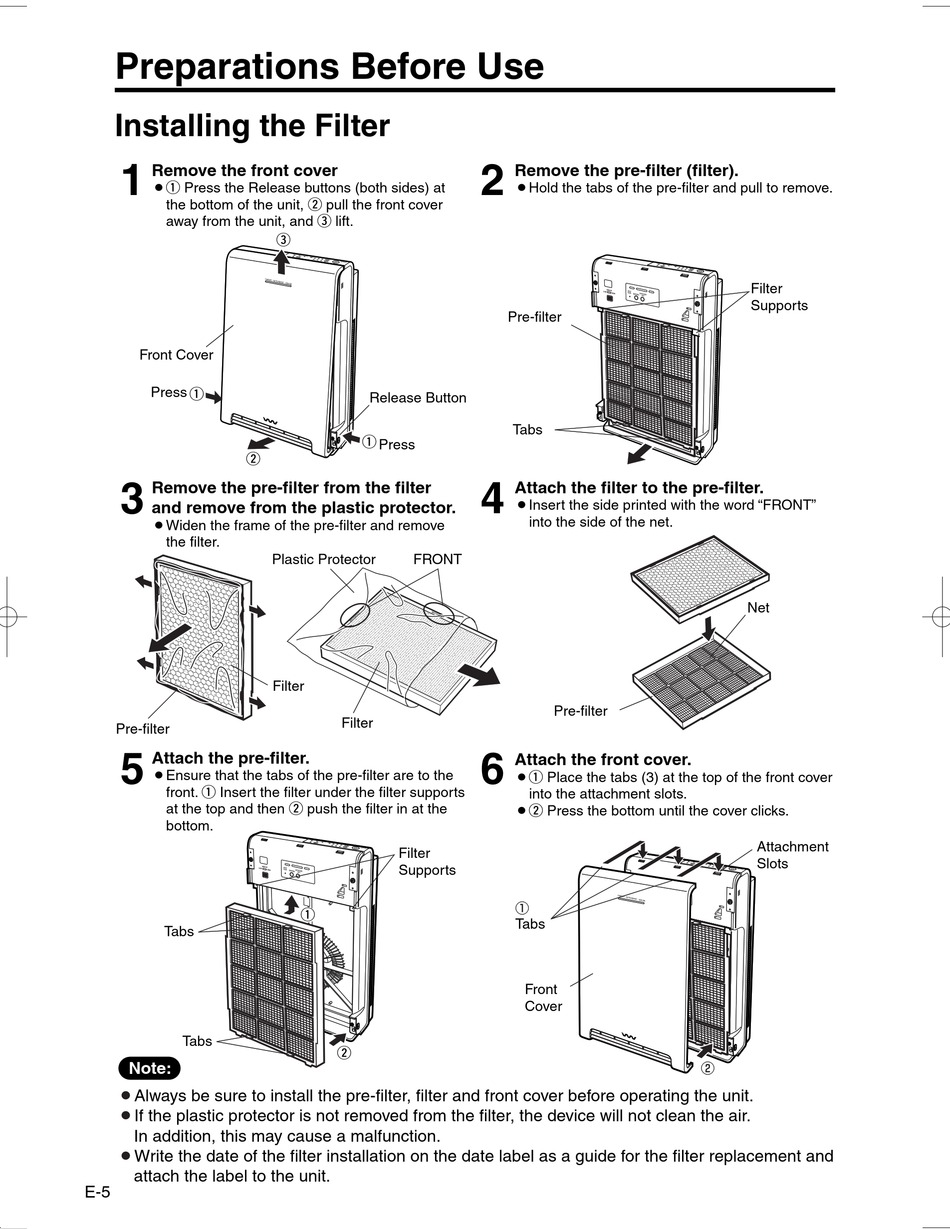

Preparations Before Use

Installing the Filter

1 Remove the front cover
¡q Press the Release buttons (both sides) at
the bottom of the unit, w pull the front cover
away from the unit, and e lift.
Front Cover
Press q
Remove the pre-filter from the filter
3
and remove from the plastic protector.
¡Widen the frame of the pre-filter and remove
the filter.
Pre-filter
Attach the pre-filter.
5
¡Ensure that the tabs of the pre-filter are to the
front. q Insert the filter under the filter supports
at the top and then w push the filter in at the
bottom.
Tabs
Tabs
Note:
¡Always be sure to install the pre-filter, filter and front cover before operating the unit.
¡If the plastic protector is not removed from the filter, the device will not clean the air.
In addition, this may cause a malfunction.
¡Write the date of the filter installation on the date label as a guide for the filter replacement and
attach the label to the unit.
E-5
e
Release Button
q
Press
w
Plastic Protector
Filter
Filter
Filter
Supports
q
w
2 Remove the pre-filter (filter).
¡Hold the tabs of the pre-filter and pull to remove.
Pre-filter
Tabs
Attach the filter to the pre-filter.
4
¡Insert the side printed with the word "FRONT"
into the side of the net.
FRONT
Pre-filter
6
Attach the front cover.
¡q Place the tabs (3) at the top of the front cover
into the attachment slots.
¡w Press the bottom until the cover clicks.
Tabs
Front
Cover
Filter
Supports
Net
Attachment
Slots
