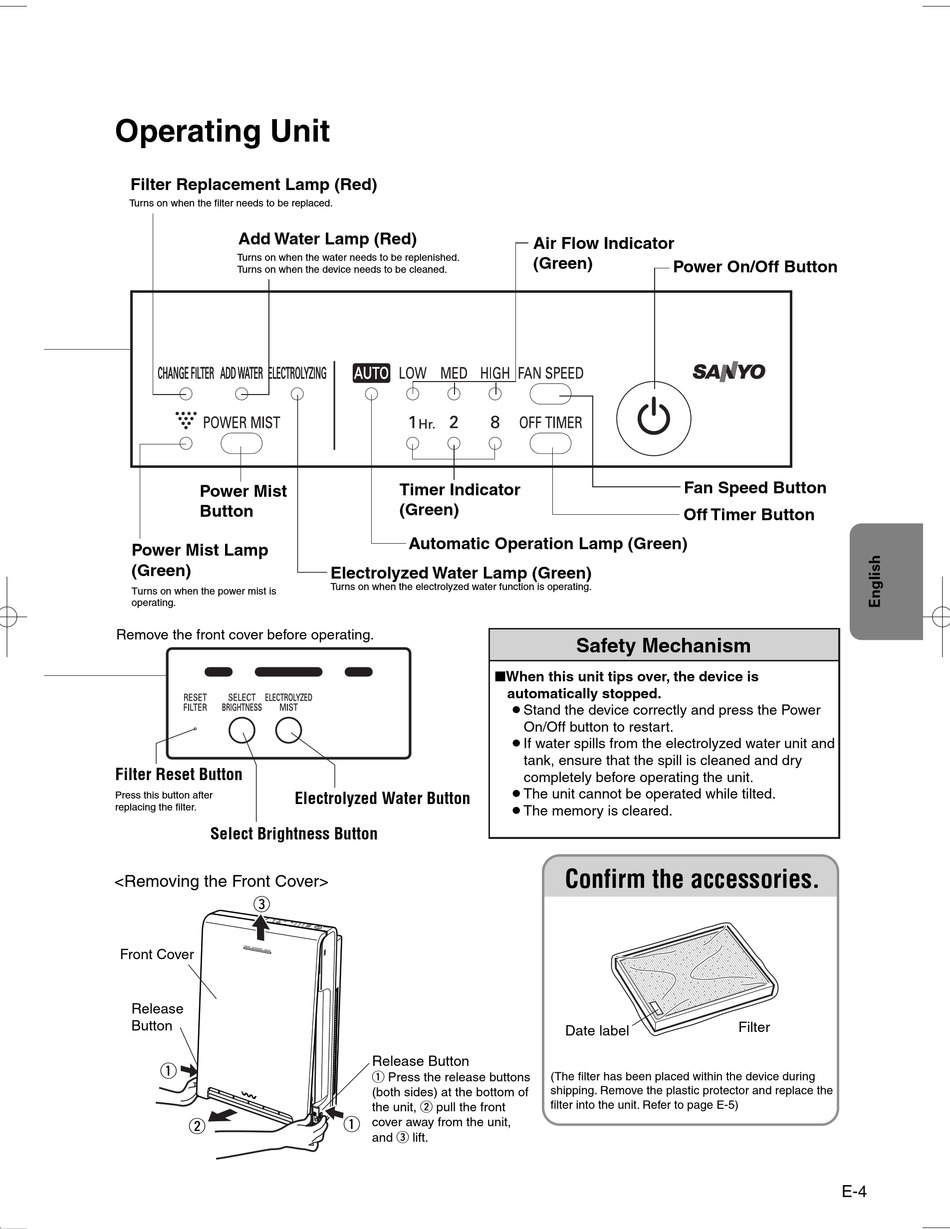

Operating Unit

Filter Replacement Lamp (Red)
Turns on when the filter needs to be replaced.
Add Water Lamp (Red)
Turns on when the water needs to be replenished.
Turns on when the device needs to be cleaned.
Power Mist
Button
Power Mist Lamp
(Green)
Turns on when the power mist is
operating.
Remove the front cover before operating.
Filter Reset Button
Press this button after
replacing the filter.
Select Brightness Button
<Removing the Front Cover>
e
Front Cover
Release
Button
q
w
Timer Indicator
(Green)
Automatic Operation Lamp (Green)
Electrolyzed Water Lamp (Green)
Turns on when the electrolyzed water function is operating.
Electrolyzed Water Button
Release Button
q Press the release buttons
(both sides) at the bottom of
the unit, w pull the front
q
cover away from the unit,
and e lift.
Air Flow Indicator
(Green)

Safety Mechanism

■When this unit tips over, the device is
automatically stopped.
¡Stand the device correctly and press the Power
On/Off button to restart.
¡If water spills from the electrolyzed water unit and
tank, ensure that the spill is cleaned and dry
completely before operating the unit.
¡The unit cannot be operated while tilted.
¡The memory is cleared.

Confirm the accessories.

Date label
(The filter has been placed within the device during
shipping. Remove the plastic protector and replace the
filter into the unit. Refer to page E-5)
Power On/Off Button
Fan Speed Button
Off Timer Button
Filter
E-4
