- Page 1 Mobility Master Hardware Appliance...
- Page 2 Attn: General Counsel 3000 Hanover Street Palo Alto, CA 94304 www.arubanetworks.com Hewlett Packard Enterprise Company Attn: General Counsel 3000 Hanover Street Palo Alto, CA 94304 USA Phone: 408.227.4500 Fax 408.227.4550 Mobility Master Hardware Appliance | Installation Guide Revision 02 | October 2017...
-
Page 3: Table Of Contents
Guide Overview......................5 Related Documentation................... 5 Contacting Support ....................5 Mobility Master Hardware Appliance ..........7 Package Checklist ..................... 7 Mobility Master Hardware Appliance Components ..........8 LEDs ........................8 10GBase-X (SFP+) Ports..................9 USB Interface...................... 9 Console Port ..................... 10 Management Port.................... - Page 4 Taiwan (BSMI) ....................25 EU Regulatory Conformance ................25 Battery Statements ..................25 Other Safety Compliance ................25 Proper Disposal of Aruba Equipment ..............26 Waste of Electrical and Electronic Equipment..........26 European Union RoHS..................26 India RoHS ......................26 China RoHS .......................
-
Page 5: Preface
Preface This document describes the hardware features of the Aruba Mobility Master hardware appliance. It provides a detailed overview of the physical and performance characteristics of each appliance model and explains how to install the appliance and its accessories. Guide Overview Chapter 1, “Mobility Master Hardware Appliance”... - Page 6 | Preface | Installation Guide Aruba Mobility Master Hardware Appliance...
-
Page 7: Mobility Master Hardware Appliance

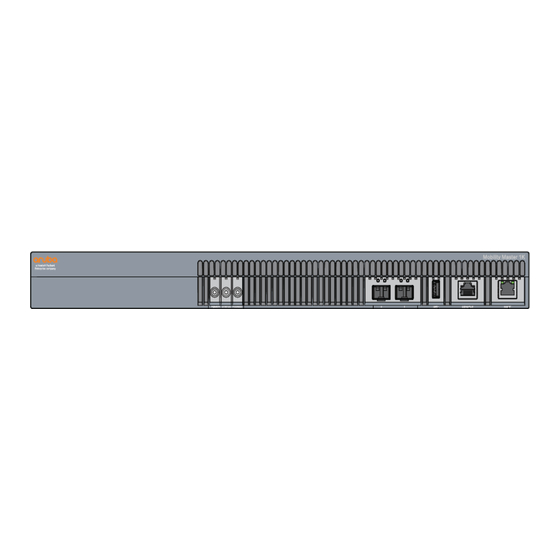

Chapter 1 Mobility Master Hardware Appliance The Aruba Mobility Master hardware appliance manages, controls and intelligently integrates wireless Access Points (APs), Managed Devices and Air Monitors (AMs). The Mobility Master hardware appliance includes the following models: Table 2 Mobility Master Hardware Appliance Models... -
Page 8: Mobility Master Hardware Appliance Components
Aruba Mobility Master Hardware Appliance Start-up Guide (Printed) End User License Agreement (Printed) Optional accessories are available for use with the Aruba Mobility Master hardware appliance and are sold separately. Contact your Aruba sales representative for details and assistance. Mobility Master Hardware Appliance Components This section introduces the component and its location in the Mobility Master hardware appliance. -
Page 9: 10Gbase-X (Sfp+) Ports
Aruba tests and supports Aruba approved optics within their appliance devices. Non-approved third party optics are not tested or supported; therefore, Aruba does not guarantee proper functionality of non-approved third party optics when used in an Aruba system. For a complete list of Aruba approved optics, contact your Aruba sales representative. -
Page 10: Console Port
Do not connect the Console port to an Ethernet switch or a PoE power source. This may damage the appliance. USB to Serial Interface Cable A USB to serial interface cable can be used to connect the serial console port of the Mobility Master hardware appliance to a USB port of laptop or PC. See... -
Page 11: Fan Module
Red - Fan module is faulty The Mobility Master hardware appliance is not compatible with fan module from other Aruba hardware platforms. Hot Swapping Hot swapping allows you to replace a failed fan tray, making it unnecessary to shut down the Mobility Master hardware appliance during the replacement procedure. -
Page 12: Grounding Point
Hot Swapping Hot swapping allows you to replace one failed power supply while the other provides full power. This makes it unnecessary to shut down the Mobility Master hardware appliance during the replacement procedure. Hot swapping is supported only when power redundancy is in effect. This requires that after the target power supply is removed, the device’s total power load does not exceed the combined rated... -
Page 13: Installation
“Connecting and Removing an SFP/SFP+/LC Cable” on page 20 Please only use the included or Aruba specified cables, power cords, AC power supplies, and batteries. The power cord should not be used with other electric equipment than what is specified by Aruba. -
Page 14: Selecting A Location
Telco rack. Each Mobility Master hardware appliance should have its own mounting equipment. Do not place other networking equipment directly on top of a mounted Mobility Master hardware appliance. Failure to do so can damage the device. Required Tools and Equipment... -
Page 15: Installation Steps
Suitable Screwdrivers for all screw types provided in the box (not included in the kit) Some racks require screws that differ from those included with the Mobility Master hardware appliance. Ensure that you have the correct screws before installing the Mobility Master hardware appliance. -
Page 16: Rack Mount Installation- Mid
19-inch Telco rack. The mounting brackets can be used for this installation as well. Each Mobility Master hardware appliance should have its own mounting equipment. Do not place other networking equipment directly on top of a mounted Mobility Master hardware appliance. Failure to do so can damage the device. -
Page 17: Required Tools And Equipment
Installation Steps 1. Attach the rubber feet to the bottom of the appliance(see Figure Figure 9 Attaching Rubber Feet 2. Place the appliance in the location you have chosen. | Installation Guide Installation | Aruba Mobility Master Hardware Appliance... -
Page 18: Connecting And Disconnecting The Ac Power Cord
Connecting and Disconnecting the AC Power Cord Once you have installed the Mobility Master hardware appliance, you are ready to power On the device. The Mobility Master hardware appliance is not equipped with an On/Off switch. The device will power On when the AC power cord is connected to the power supply and an AC power outlet. -
Page 19: Installing And Removing A Power Supply
The power supply modules are hot-swappable. Hot swapping allows you to replace a failed power supply without powering down the Mobility Master hardware appliance during the replacement process. This makes it unnecessary to shut down the Mobility Master hardware appliance during the replacement procedure. -
Page 20: Connecting And Removing An Sfp/Sfp+/Lc Cable
3. If you are not replacing the power supply module immediately, ensure to install a filler panel that was included with your Mobility Master hardware appliance. To install the filler panel: a. Align the filler panel with the opening in the appliance. -
Page 21: Connecting An Sfp Module
Connecting an SFP Module To connect an SFP module into the Mobility Master hardware appliance, slide the SFP module, top side facing upward, into a 10GBase-X (SFP+) port until a connection is made and an audible click is heard (see Figure 13). - Page 22 Figure 14 Connecting or Removing an LC Fiber Optic Cable | Installation | Installation Guide Aruba Mobility Master Hardware Appliance...
-
Page 23: Specifications, Safety, And Compliance
Aruba appliances must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes. | Installation Guide... -
Page 24: Electromagnetic Interference
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. | Specifications, Safety, and Compliance | Installation Guide Aruba Mobility Master Hardware Appliance... -
Page 25: Taiwan (Bsmi)
EU Regulatory Conformance This product is CE marked according to the provisions of the EMC Directive (2004/108/EC) - CE. Aruba Networks Inc., hereby declares that Mobility Master hardware appliance device models are in compliance with the essential requirements and other relevant provisions of Directive (2004/108/EC). -
Page 26: Proper Disposal Of Aruba Equipment
Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of...
