Summary of Contents for Aruba 7280

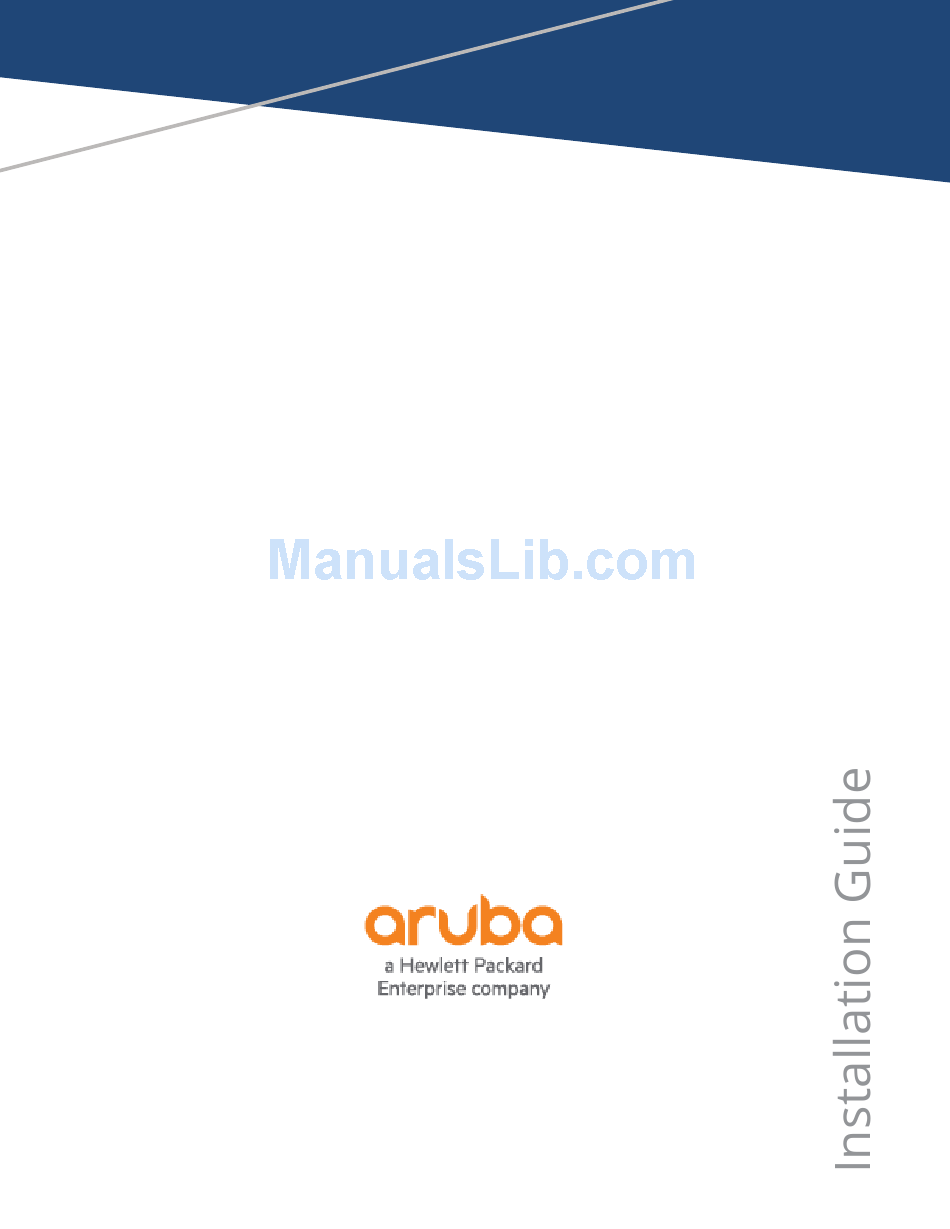

  • Page 1 Aruba 7280 Controller...
  • Page 2 Attn: General Counsel 3000 Hanover Street Palo Alto, CA 94304 www.arubanetworks.com Hewlett Packard Enterprise Company Attn: General Counsel 3000 Hanover Street Palo Alto, CA 94304 USA Phone: 408.227.4500 Fax 408.227.4550 Aruba 7280 Controller | Installation Guide Revision 01 | August 2017...

  • Page 3: Table Of Contents

    Contents Preface...................... 5 Guide Overview......................5 Related Documentation................... 5 Contacting Support ....................5 7280 Controller ..................7 Package Checklist ..................... 7 7280 Controller Components.................. 8 40 GbE QSFP+ Ports................... 9 10GBase-X (SFP+) Ports................... 10 USB Interface....................12 Console Port ..................... 12 Micro USB Console Connector ...............
  • Page 4 Taiwan (BSMI) ....................33 EU Regulatory Conformance ................33 Battery Statements ..................33 Other Safety Compliance ................33 Proper Disposal of Aruba Equipment ..............34 Waste of Electrical and Electronic Equipment..........34 European Union RoHS..................34 India RoHS ......................34 China RoHS .......................

  • Page 5: Preface

    Preface This document describes the hardware features of the Aruba 7280 Controller. It provides a detailed overview of the physical and performance characteristics of each controller model and explains how to install the controller and its accessories. Guide Overview Chapter 1, “7280 Controller” on page 7 provides a detailed hardware overview of the 7280 ...
  • Page 6 | Preface | Installation Guide Aruba 7280 Controller...

  • Page 7: 7280 Controller

    The Aruba 7280 Controller is a wireless LAN controller that connects, controls, and intelligently integrates wireless Access Points (APs) and Air Monitors (AMs) into a wired LAN system. The 7280 controller includes the following five models, and they do not differ physically or functionally from each other: 7280-US: For the United States of America ...

  • Page 8: 7280 Controller Components

    Rubber Feet Aruba 7280 Start-up Guide (Printed) End User License Agreement (Printed) Optional accessories are available for use with the Aruba 7280 controller and are sold separately. Contact your Aruba sales representative for details and assistance. 7280 Controller Components This section introduces the component and its location in the Aruba 7280 controller.

  • Page 9: Gbe Qsfp+ Ports

    Primary power supply module 40 GbE QSFP+ Ports The Aruba 7280 controller includes two 40 GbE QSFP+ ports labeled 0-3 and 4-7. It is recommended to use Aruba supported QSFP+ transceivers in these ports. Each 40 GbE QSFP+ port is equipped with four Link LEDs above the port allowing you to monitor the status on the port.

  • Page 10: 10Gbase-X (Sfp+) Ports

     10GBase-X (SFP+) Ports The 7280 controller is equipped with eight 10GBase-X (SFP+) ports. These port are labeled as 8 to 15. These ports are intended for use with Aruba SFP/SFP+. These ports support dual speed (1GbE or 10GbE) operation.
  • Page 11 For the list of Aruba approved DAC cables and SFP/SFP+ modules for controllers, see Table 7 Table Other non-approved third-party optics or DAC cables are not tested or supported by Aruba on controllers; therefore, Aruba does not guarantee their proper functionality when used with Aruba controllers. Table 7 Supported DAC Cables...

  • Page 12: Usb Interface

    SFP+, 10GBASE-ZR, 1310nm pluggable 10GE optic; up to 70,000 meters over single- mode fiber, LC connector USB Interface The Aruba 7280 controller is equipped with a USB 2.0 interface. See Figure 5 on page 14. A USB storage device can be used to save and upload configurations to the controller. USB functions are controlled through the LCD panel on the front of the controller.

  • Page 13: Micro Usb Console Connector

    USB connection takes precedence over the RJ-45 console connection. Micro USB Driver To use the micro USB console port, you must install the Aruba micro USB driver on the computer that will manage your controller. To download the driver, perform the following steps: 1.

  • Page 14: Power, Status, And Peered Leds

    Peered Reserved for future use LCD Panel The Aruba 7280 controller is equipped with an LCD panel (see Figure 5 on page 14.) that displays information about the controller’s status and provides a menu that allows basic operations such as initial setup and reboot.
  • Page 15 Exit Maintenance menu Disabling the LCD Screen By default, the LCD screen is enabled. However, if the 7280 controller is deployed in a location without physical security, the LCD screen can be disabled through the CLI. When disabled, pushing one of the navigation buttons will only illuminate the LCD screen and display the slot, role, device name, and any alarms.

  • Page 16: Psu Slot 1

    PSU Slot 1 The Aruba 7280 controller includes a PSU slot 1 that has a filler panel covering the opening. PSU slot 1 is for an additional power supply module that may be required for redundancy. PSU slot 1 can hold the same power supply module as PSU slot 0.

  • Page 17: Psu Slot 0

    550W AC power supply: Load Sharing Load sharing occurs when more than one power supply of the same rating is installed in the 7280 controller and turned on. Load sharing divides the total power load of the controller among all available power supplies.
  • Page 18 Status Amber (blinking) at 1 Hz Warning! Power supply module can operate normally but high temperature without protection, fan speed slow down, voltage lower, high power, and high current. No power. | 7280 Controller | Installation Guide Aruba 7280 Controller...

  • Page 19: Installation

    “Installing an SFP/SFP+/QSFP+/LC Cable” on page 27  Please only use the included or Aruba specified cables, power cords, AC power supplies, and batteries. The power cord should not be used with other electric equipment than what is specified by Aruba.

  • Page 20: Selecting A Location

    Limited electromagnetic interference  For best operation, keep the 7280 controller and all cords and cables at least 0.7 meters (2 feet) from fluorescent lighting fixtures, and 2 meters (6 feet) from photocopiers, radio transmitters, electric generators, and other sources of strong electromagnetic interference.

  • Page 21: Installation Steps

    Suitable Screwdrivers for all screw types provided in the box (not included in the kit)  Some racks require screws that differ from those included with the 7280 controller. Ensure that you have the correct screws before installing the 7280 controller.

  • Page 22: Rack Mount Installation- Mid

    Suitable Screwdrivers for all screw types provided in the box (not included in the kit)  Some racks require screws that differ from those included with the 7280 controller. Ensure that you have the correct screws before installing the 7280 controller.

  • Page 23: Required Tools And Equipment

    2. Place the controller in the location you have chosen. Wall Mounting An optional accessory kit (must be purchased separately) is available that allows you to mount the 7280 controller to a wall. For more information about this accessory kit, contact your Aruba sales. representative. Required Tools and Equipment...

  • Page 24: Installation Steps

    Ensure that the Ethernet ports are facing down when installing the 7280 controller on a wall. 1. Fasten the mounting brackets over the mounting holes on the sides of the 7280 controller using the eight screws for mounting bracket (four per bracket) and a suitable screwdriver (see Figure 10).

  • Page 25: Connecting And Disconnecting The Ac Power Cord

    Connecting and Disconnecting the AC Power Cord Once you have installed the 7280 controller, you are ready to power on the device. The 7280 controller is not equipped with an On/Off switch. The device will power on when the AC power cord is connected to the power supply and an AC power outlet.

  • Page 26: Removing And Installing A Fan Module

    Figure 12 Cable Retention Holder on Power Supply Module The 7280 controller should now be receiving power. To disconnect the AC power cord from the 7280 controller: 1. Loosen the cable retention holder that is securely holding the AC power cord.

  • Page 27: Installing And Removing A Power Supply Module

    The power supply module is hot-swappable when two power supplies are installed. Hot swapping allows you to replace a failed power supply without powering down the 7280 controller during the replacement process. This makes it unnecessary to shut down the 7280 controller during the installation procedure.

  • Page 28: Connecting The Sfp Module

    Connecting the SFP module To connect an SFP module into the 7280 controller, slide the SFP module, top side facing upward, into a corresponding 1000Base-X port or 40 GbE QSFP+ port until a connection is made and an audible click is heard (see Figure 13).
  • Page 29 Figure 14 Connecting an LC Fiber | Installation Guide Installation | Aruba 7280 Controller...
  • Page 30 | Installation | Installation Guide Aruba 7280 Controller...

  • Page 31: Specifications, Safety, And Compliance

    Aruba controllers must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes. | Installation Guide...

  • Page 32: Electromagnetic Interference

    Europe This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. | Specifications, Safety, and Compliance | Installation Guide Aruba 7280 Controller...

  • Page 33: Taiwan (Bsmi)

    EU Regulatory Conformance This product is CE marked according to the provisions of the EMC Directive (2004/108/EC) - CE. Aruba Networks Inc., hereby declares that 7280 controller device models are in compliance with the essential requirements and other relevant provisions of Directive (2004/108/EC).

  • Page 34: Proper Disposal Of Aruba Equipment

    Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of...
