Summary of Contents for Aruba 3000

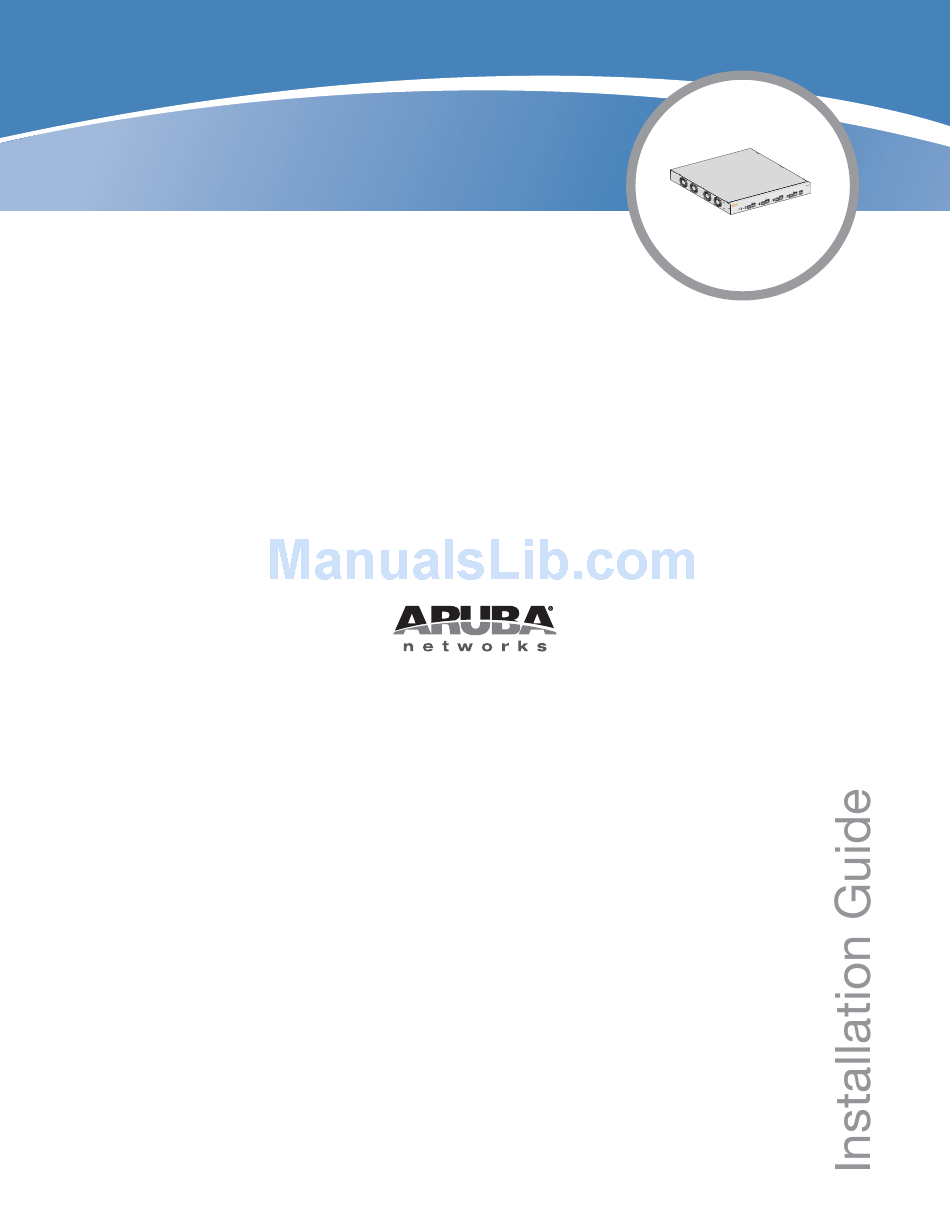

- Page 1 Aruba 3000 Multi-Service Mobility Controller Series...
- Page 2 Legal Notice The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc.
-
Page 3: Table Of Contents
Power Specifications (AC Input Requirements) Operating Specifications Storage Specifications Safety and Regulatory Compliance FCC Class A Device Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment European Union RoHS China RoHS Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide Contents |... - Page 4 | Contents Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide...
-
Page 5: Preface
Chapter 1, “Aruba 3000 Series Hardware Overview” on page 7 provides a detailed hardware overview of the three Multi-Service Mobility Controllers within the Aruba 3000 Series: the Aruba 3200, the Aruba 3400, and the Aruba 3600. Chapter 2, “Aruba 3000 Series Installation” on page 13 provides rack mounting and installation ... -
Page 6: Contacting Aruba
+33 (0) 1 70 72 55 59 United Kingdom +44 (0) 20 7127 5989 Germany +49 (0) 69 38 09 77 22 8 All Other Countries +1 (408) 754-1200 | Preface Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide... -
Page 7: Aruba 3000 Series Hardware Overview
Aruba 3200 Multi-Service Mobility Controller The Aruba 3200 is capable of supporting up to 32 campus connected APs. The following base models are available and can be upgraded by purchasing optional software licenses: 3200-AOS-STD: no built-in AP support; optional Aruba AP upgrade licenses available. -
Page 8: Minimum Software Requirements
Controllers. If your network currently runs on a software build prior to 3.2.0, you must upgrade the software on your master and local controllers to 3.2.0 or later prior to installing an Aruba 3000 Series Mobility Controller in your existing network. -
Page 9: Front View
To purchase compatible SFP modules, contact your Aruba sales representative for details and assistance. Aruba tests and supports Aruba optics within their controller systems. Third party optics are not tested or supported; therefore, Aruba does not guarantee proper functionality of third party optics when used in an Aruba system. -
Page 10: Serial Console Port
Figure 4 RJ-45 (female) to DB9 (male) Modular Adaptor Conversion RJ-45 Female Internal DB-9 Male Pin-Out Connections Pin-Out RJ-45 DB-9 Ground Direction Direction Input Input Output Output | Aruba 3000 Series Hardware Overview Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide... -
Page 11: Rear View
AC Power Socket AC Power Socket The Aruba 3000 Series supports integrated AC powering and the AC power socket on the rear of the unit is for use with an AC power cord (country-specific). Refer to Power Management Specifications on page 4 for power specification details. - Page 12 Table 2 Aruba 3000 Series LED Status Indicators Function Indicator Status No link on port 1000 Interface Speed On (Solid Green) 1000 Mbps interface 10/100/1000Base-T Ports Indicator speed in use 10/100 Mbps interface speed in use | Aruba 3000 Series Hardware Overview...
-
Page 13: Aruba 3000 Series Installation
AC power cord (country-specific) Please only use included or Aruba specified cables, power cords, AC power supplies and batteries. The power cord should not be used with other electric equipment than what is specified by Aruba. 接続ケーブル、電源コード、AC アダプタ、バッテリーなどの部品は、必ず添付品または指定品を ご使用ください。また、電源ケーブルは弊社が指定する製品以外の電気機器には使用できないため... - Page 14 Figure 1 Rack Mount Brackets Aruba 3000 Series Multi-Service Mobility Controller Rack Mount Bracket (2x) 6-32 x 1/4” Phillips Flat Head Screws (6x, 3x per bracket) | Aruba 3000 Series Installation Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide...
- Page 15 8. Plug the opposite end of the power cord into an electrical outlet to power on the controller. Aruba 3000 Series controllers do not have a switch for turning power to the unit on or off. Power to the unit is controlled by connecting or disconnecting the plug on the power cord to or from an electrical outlet.
-
Page 16: Tabletop Deployment
Tabletop Deployment To deploy an Aruba 3000 Series controller on a flat surface, such as a tabletop: 1. Insert the four, rubber mounting feet into the bottom of the unit and place the unit on a flat, hard surface. Initial Setup and Network Connectivity Once the physical installation is complete, run the initial setup on the controller to configure the IP address and other basic system information. -
Page 17: Appendix A Specifications, Safety & Compliance
AC Input Frequency: 47-63 Hz Operating Specifications Operating Temperature Range: 0°C to 40°C (32°F to 104°F) Operating Humidity Range: 5% to 95% (RH), non-condensing Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide Specifications, Safety & Compliance |... -
Page 18: Storage Specifications
Safety and Regulatory Compliance Aruba provides a multi-language document containing country specific restrictions and additional safety and regulatory information for all Aruba hardware products. The Aruba Safety and Regulatory Addendum can be viewed or downloaded from the following location: www.arubanetworks.com/pdf/ 0510272-01.pdf... -
Page 19: Waste Of Electrical And Electronic Equipment
Waste of Electrical and Electronic Equipment Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of... - Page 20 | Specifications, Safety & Compliance Aruba 3000 Multi-Service Mobility Controller Series | Installation Guide...
