Platform Ships Fully Assembled
C
B
G
Figure 1:
Mat Platform
INSTALLATION INSTRUCTIONS
A)
1. Remove all packaging material from the platform.
Product Specifications
2. Plug the power cord into a properly grounded 120 Volt AC
Length
outlet and follow the procedure outlined in the
Depth
precautionary instructions.
Height
Weight Capacity
Leveling the Platform:
Figure 1: Examination Table
1. Place the table in position before leveling.
2. Use adjustable wrench to rotate leg levelers for height adjustment.
OPERATING INSTRUCTIONS
B)
Duty cycle on/off Int. 2 min./ 18 min.
1. Raise the platform by gently pressing the up arrow on the footswitch.
2. Lower the platform by gently pressing the down arrow on the footswitch.
MAINTENANCE
C)
In the event it becomes necessary to replace the foot switch or power cord, make certain that the component is
connected properly and the locking tabs on the motor snaps in place.
For assistance please call Hausmann Industries at (201) 767-0255, press 5 for Customer Service. We may request
purchase details (product, date purchased, dealer) to better assist you.
Rev. 072514 aj
130 Union St • Northvale NJ 07647 USA • Tel: (201) 767-0255 • Fax: (201) 767-1369 •
Installation/Operation Instructions

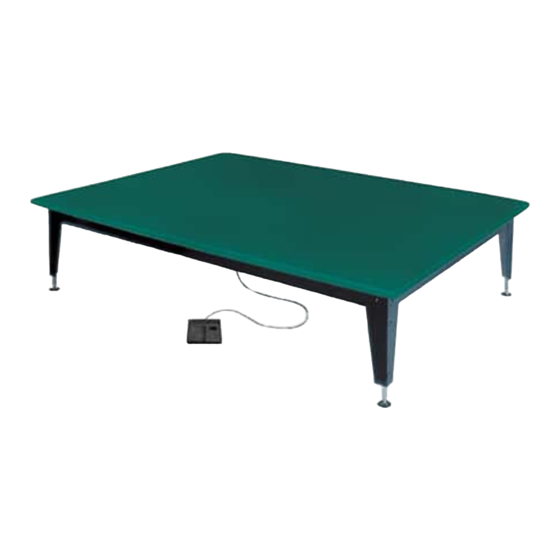

Model 1427 – Bariatric Electric Mat Platform
43"
24"
36"
40 lbs
Model # Length Width
A
1427-46
1427-47
1427-57
1427-68
Part
D
A
B
F
C
D
E
F
G
H
Page 1 of 7
www.hausmann.com
Product Specifications
Height
6'
4'
20" – 30"
7'
4'
20" – 30"
7'
5'
20" – 30"
8'
6'
20" – 30"
Part Lists
Qty
Description
1
Upholstered Top
4
Black Steel Aprons (2 long, 2 short)
4
Corner Steel Legs
4
Hydraulic Lift Cylinder/Legs
1
115 V Motor/Hydraulic Pump Assm.
4
Adjustable Leg Levelers
1
Foot Control, 12V DC with 6' cord
1
Control Box
©2013 HAUSMANN INDUSTRIES, INC.
Weight Capacity
750 lbs
750 lbs
750 lbs
750 lbs
Advertisement
Related Manuals for Hausmann 1427
Summary of Contents for Hausmann 1427
- Page 1 For assistance please call Hausmann Industries at (201) 767-0255, press 5 for Customer Service. We may request purchase details (product, date purchased, dealer) to better assist you.
- Page 2 Remove finger from the switch. Then, press and hold “down” arrow button again. After approximately 5 seconds the system will begin to retract until the “zero” position is reached. The system is now fully retracted. COMPRESS CYLINDERS COMPLETELY Rev. 072514 aj Page 2 of 7 ©2013 HAUSMANN INDUSTRIES, INC.
- Page 3 Additionally, external retaining ring pliers will be required to remove a 13mm retaining ring and upper cap from the top of the lift cylinder. ATU Cylinder Removal Corner Leg Cylinder Removal Rev. 072514 aj Page 3 of 7 ©2013 HAUSMANN INDUSTRIES, INC.
- Page 4 NT15 Hydraulic Fluid to level indicated below using the filler bottle with needle. NOTE: The cylinder will not fill properly if the filler bottle needle is not inserted past the smallest opening in the port as shown. Rev. 072514 aj Page 4 of 7 ©2013 HAUSMANN INDUSTRIES, INC.
- Page 5 For motorized systems, re-attach motorized pump to the workstation. Re-connect the motor cable to the controller. Finally, connect power cord to a power receptacle. The controller should make an audible “double-clicking” sound. The motorized system should now be fully operational and ready for normal use. Rev. 072514 aj Page 5 of 7 ©2013 HAUSMANN INDUSTRIES, INC.
- Page 6 At this point, your lift system should be reset to its home position. To verify, operate the system by moving it upwards with the up button, and again downwards; ensure the system returns to the home position. Rev. 072514 aj Page 6 of 7 ©2013 HAUSMANN INDUSTRIES, INC.
-
Page 7: Troubleshooting
Motor Cable is not connected controller completely. Switch Cable is not connected Connect switch cable to motor controller completely. Contact Hausmann Industries Inc. for replacement. Defective Motor Controller Contact Hausmann Industries Inc. for replacement. Defective Switch Verify system load does not exceed rating and remove System Load Rating Exceeded weight as needed.
