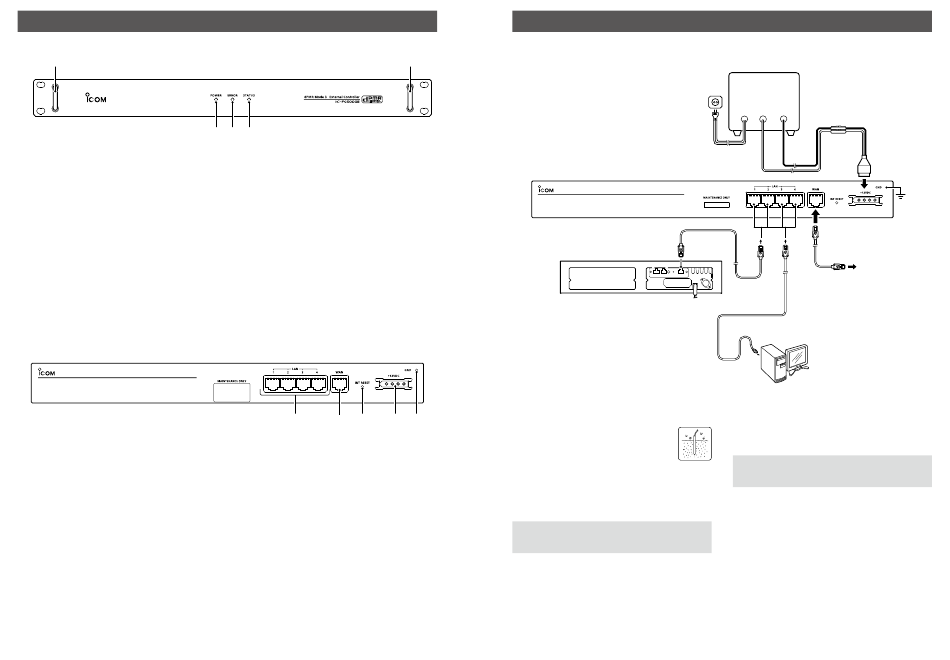

PANEL DESCRIPTION
D Front panel
Handle
q POWER INDICATOR
Lights green while the controller is ON.
w ERROR INDICATOR
z Lights red while the controller starts up.
z Lights red while the controller detects a serious
error, such as:
• Repeater connection is not confirmed.
• Repeater's unlock status is detected.
• Repeater's cross busy status is detected.
In this case, the controller's operation is
automatically stopped.
z Blinks red while the controller detects a
repeater problem, such as:
• Repeater's temperature becomes extremely high.
• Power supply voltage is too high or low.
• Cooling fan stops.
• Output power level is too low.
D Rear panel
q LAN CONNECTORS [LAN]
z Connects to the repeaters that the UC-FR5000SE
is installed in.
• Up to 32 units can be connected with an Ethernet
hub.
z Connects to the PC that the CS-FC5000 is
installed in for the remote control operation.
• You can set the network settings with the PC. (p. 4)
w WAN CONNECTOR [WAN]
Connects to the PC that the CS-FC5000SCS is
installed in for the Multi-site trunking operation.
The PC is usually connected via a router.
e INT RESET BUTTON
Hold down for 5 seconds to initialize the settings.
• All set contents of the controller, including the IP
address and password are reset to the factory defaults.
• The Status indicator blinks orange while resetting.
q w e
e STATUS INDICATOR
z Lights orange while the controller is starting up.
z Blinks orange while the controller is resetting.
q w e
r DC POWER CONNECTOR [+12VDC]
Connect a supplied DC power cable from this
connector to an external 12 V DC power supply
(User supplied).
See page 3 for the connection details.
t GROUND TERMINAL [GND]
Connect this terminal to ground to prevent
electrical shocks, interference from other
electronic devices, and other problems.
See page 3 for grounding details.
– 2 –
D Rear panel connection
Handle
r t
• Grounding
To prevent electrical shock, television
interference (TVI), broadcast interference
(BCI) and other problems, ground the
controller using the GROUND [GND]
terminal on the rear panel.
For the best results, connect a heavy gauge wire
or strap to a long ground rod. Make the distance
between the [GND] terminal and the ground rod as
short as possible.
R WARNING! NEVER connect the [GND] terminal
to a gas or electric pipe, since the connection could
cause an explosion or electric shock.
CONNECTION
DC power supply
12 V DC
(at least 3 A)
AC outlet
Red Black
+ _
AC cable
BUS-1 BUS-2 LAN
UC-FR5000SE
to an Ethernet port
• Power supply
Confirm the controller's power is OFF when
connecting the DC power cable.
CAUTION: Voltages greater than 13.2 V DC will
damage the controller. Check the source voltage
before connecting the power cable.
– 3 –
DC power cable
To a router
PC
