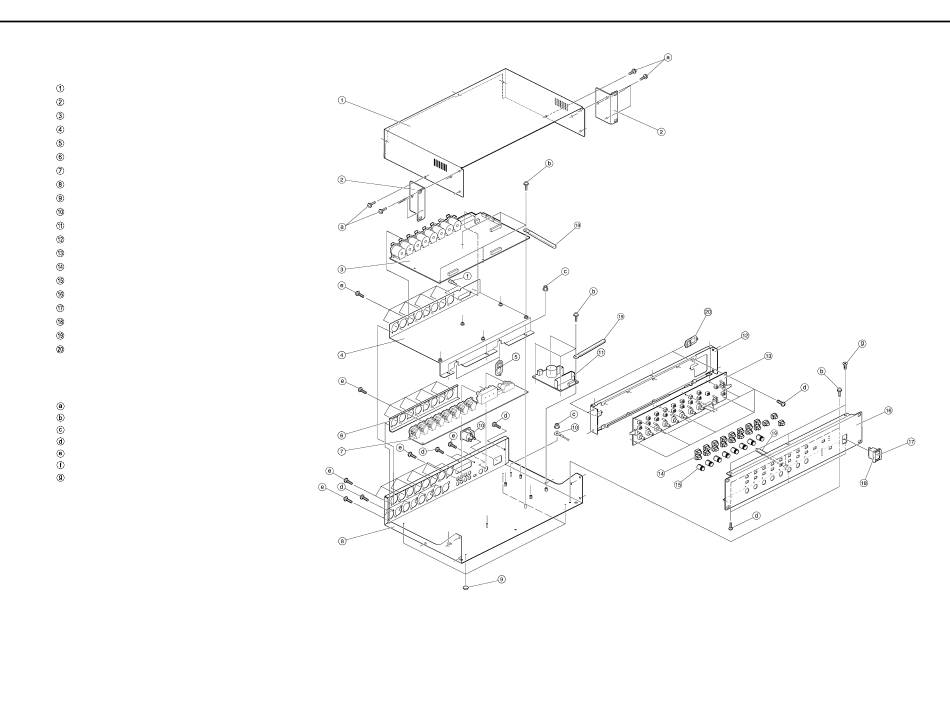

EXPLODED VIEW / 分解図
分解図 分解図 分解図
[PARTS]
No. PART CODE PART NAME
02011301 TOP COVER
22125586 2U RACK ANGLE
71560923 MAIN ASSY
02011345 MAIN BRD HOLDER
12159799 EDGE HOLDER EHS-11U
02011334 JACK BRD HOLDER
71561089 JACK ASSY
02011290 BOTTOM CHASSIS
12359137 FOOT SJ-5012 BLK
02014990 WIRING AC ASSY
01451678 SWITCHING REGULATOR KW1AA265
02011312 FRONT HOLDER
71561045 PANEL BOARD ASSY
01125890 D S-KEYTOP SD1H-A CLR
22480260 P R-KNOB MF BLK/LCG
02011323 FRONT PANEL
01786012 SEESAW SWITCH JW-M11RKK
01786045 SW HOLDER AT-217K
40017401 COATING CLIP CS-7U
00902790 CORD BUSHING EDS-1208U
[SCREWS]
No. PART CODE PART NAME
40013012 SCREW M4x10 PAN MACHINE W/SW+SMALL PW BZC
40013056 SCREW M3x6 PAN MACHINE W/SW+SMALL PW ZC
40012667 FRANGE HEX NUT M4 W/CELATION NI
40011101 SCREW 3x8 BINDING TAPTITE B BZC
40011101 SCREW 3x8 BINDING TAPTITE B BZC
40344134 SCREW M4-40x7.9 HEX SOCKET NI
40011156 SCREW 3x8 FLAT TAPTITE B BZC
