Summary of Contents for Roland UM-ONE

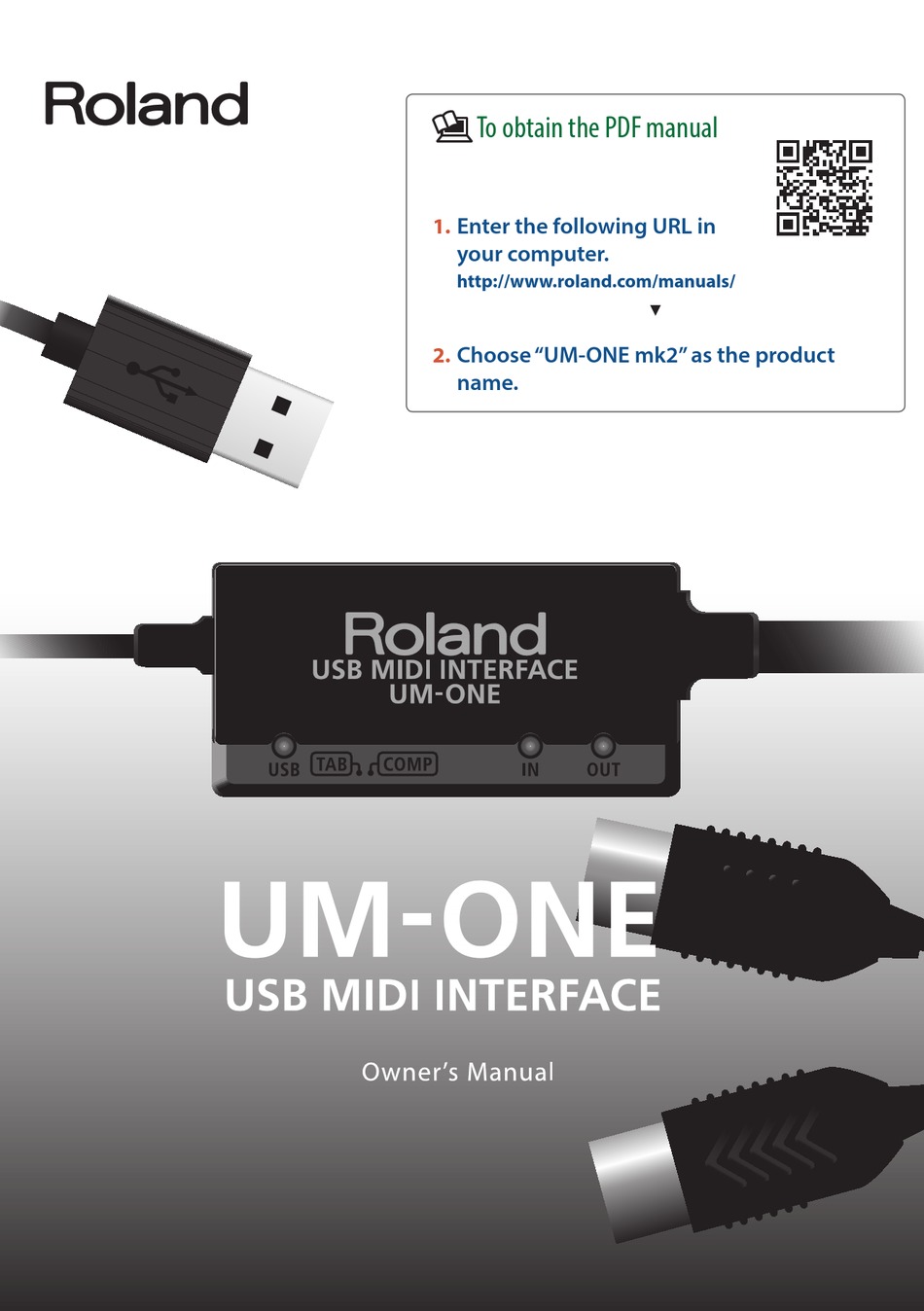

- Page 1 To obtain the PDF manual Enter the following URL in your computer. http://www.roland.com/manuals/ Choose “UM-ONE mk2” as the product name.
- Page 2 For example, in the illustration below, a MIDI signal meaning “the ‘C’ key on the MIDI keyboard was pressed” passes through the UM-ONE and is received by the computer’s software sound module, and then the software sound module plays the note “C. ”...
-
Page 3: Using The Unit Safety
Roland as listed on the “Information” page. Service Center, or an authorized • Never install the unit in any of the Roland distributor, as listed on the following locations. “Information” page when: • Subject to temperature extremes • Objects have fallen into, or liquid... - Page 4 USING THE UNIT SAFETY • Protect the unit from strong impact. • Try to prevent cords and cables (Do not drop it!) from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
-
Page 5: Important Notes
IMPORTANT NOTES Placement • Company names and product names appearing in this document are registered • Do not expose the unit to direct sunlight, trademarks or trademarks of their respective place it near devices that radiate heat, leave owners. it inside an enclosed vehicle, or otherwise subject it to temperature extremes. - Page 6 MEMO...
-
Page 7: Table Of Contents
Connecting the External Equipment to UM-ONE . . . . . . . . . . . . . . . . . -
Page 8: Panel Descriptions
Panel Descriptions Note Do not connect the UM-ONE to the computer until the driver has been installed (p. 9). Name Description USB Cable Connects the UM-ONE to a computer. Lights when the UM-ONE is connected to a computer and USB Indicator the computer has detected the UM-ONE. -
Page 9: Installing The Dedicated Driver
Installing the Dedicated Driver Note Do not connect the UM-ONE to the computer until you are directed to do so. Download the USB driver from the Roland website. For details, refer to Readme.htm which is included in the download. http://www.roland.com/support/... -
Page 10: Basic Use
UM-ONE. 5 Select the UM-ONE for the software’s MIDI device setting. 5 The UM-ONE will not operate in the Mac OS X Classic environment. Use the UM-ONE when the Classic environment is not running. Recording MIDI Data, Playing a Software Sound Module... -
Page 11: Playing Back Midi Data
Basic Use Playing Back MIDI Data To send MIDI messages that were recorded using DAW software to a MIDI sound module or software sound module, make the following connections and settings. MIDI OUT Cable (CONNECT TO MIDI IN) To MIDI IN Connector Software’s MIDI Output Device: UM- MIDI Sound Module... -
Page 12: Connecting The External Equipment To Um-One
Connect the UM-ONE to the computer. MEMO If you want to connect the UM-ONE to a computer in which the USB driver has not been installed, disconnect the UM-ONE’s USB cable from the computer, and install the USB driver in the computer as described in the section “Driver Installation”... - Page 13 Set the UM-ONE’s [COMP/TAB] switch to the “TAB” position. Connect the UM-ONE to the USB hub. MEMO Operation may be unstable if you use a USB hub of a type that does not have a connected power supply, or if you connect the UM-ONE directly to the iPad.
-
Page 14: Troubleshooting
Using the UM-ONE Problem Confirmation Resolution Is the driver installed? Install the driver (p. 9). Make sure that the UM-ONE is connected to the computer correctly. Is the UM-ONE’s USB indicator off? If the problem is not resolved, reinstall the Cannot select driver. - Page 15 Setup”? (Mac OS X) device Is the driver installed? Install the driver (p. 9). Is the software’s input device and Select the UM-ONE as the input and output device configured? output device. Make sure that the UM-ONE is connected to the computer correctly.
- Page 16 Update to the latest drivers. sounds are card up to date? missing Is the UM-ONE connected to a Connect the UM-ONE directly to one of USB hub? the computer’s USB connectors. Did you try to play back or record immediately after the computer...
-
Page 17: Main Specifications
Main Specifications UM-ONE: USB MIDI Interface MIDI IN Cable (CONNECT TO MIDI OUT) x 1 (16 MIDI Channels) Connectors MIDI OUT Cable (CONNECT TO MIDI IN) x 1 (16 MIDI Channels) USB Cable USB Indicator Indicators MIDI IN Indicator MIDI OUT Indicator... - Page 18 For EU Countries 有关产品中所含有害物质的说明 本资料就本公司产品中所含的特定有害物质及其安全性予以说明。 本资料适用于����年�月� 日以后本公司所制造的产品。 环保使用期限 此标志适用于在中国国内销售的电子信息产品， 表示环保使用期限的年数。 所谓环保使用 期限是指在自制造日起的规定期限内， 产品中所含的有害物质不致引起环境污染， 不会对 人身、 财产造成严重的不良影响。 环保使用期限仅在遵照产品使用说明书， 正确使用产品的条件下才有效。 不当的使用， 将会导致有害物质泄漏的危险。 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅 （Pb） 汞 （Hg） 镉 （Cd） （Cr （ VI） ） （PBB） （PBDE） 外壳 （壳体） 电子部件...
- Page 19 ENA 23 Zone 1 nr. 1620 Klaus-Michael Kuehnelaan 13, 2440 Geel, BELGIUM For the U.K. Manufacturer: Roland Corporation 2036-1 Nakagawa, Hosoe-cho, Kita-ku, Hamamatsu, Shizuoka 431-1304, JAPAN Importer: Roland Europe Group Limited Hive 2, 1530 Arlington Business Park, Theale, Reading, Berkshire. RG7 4SA United Kingdom...
- Page 20 Roland Service Centers and Distributors Roland Service Centers and Distributors When you need repair service, access this URL and find your nearest Roland Service Center or authorized Roland distributor in your country. http://roland.cm/service...
