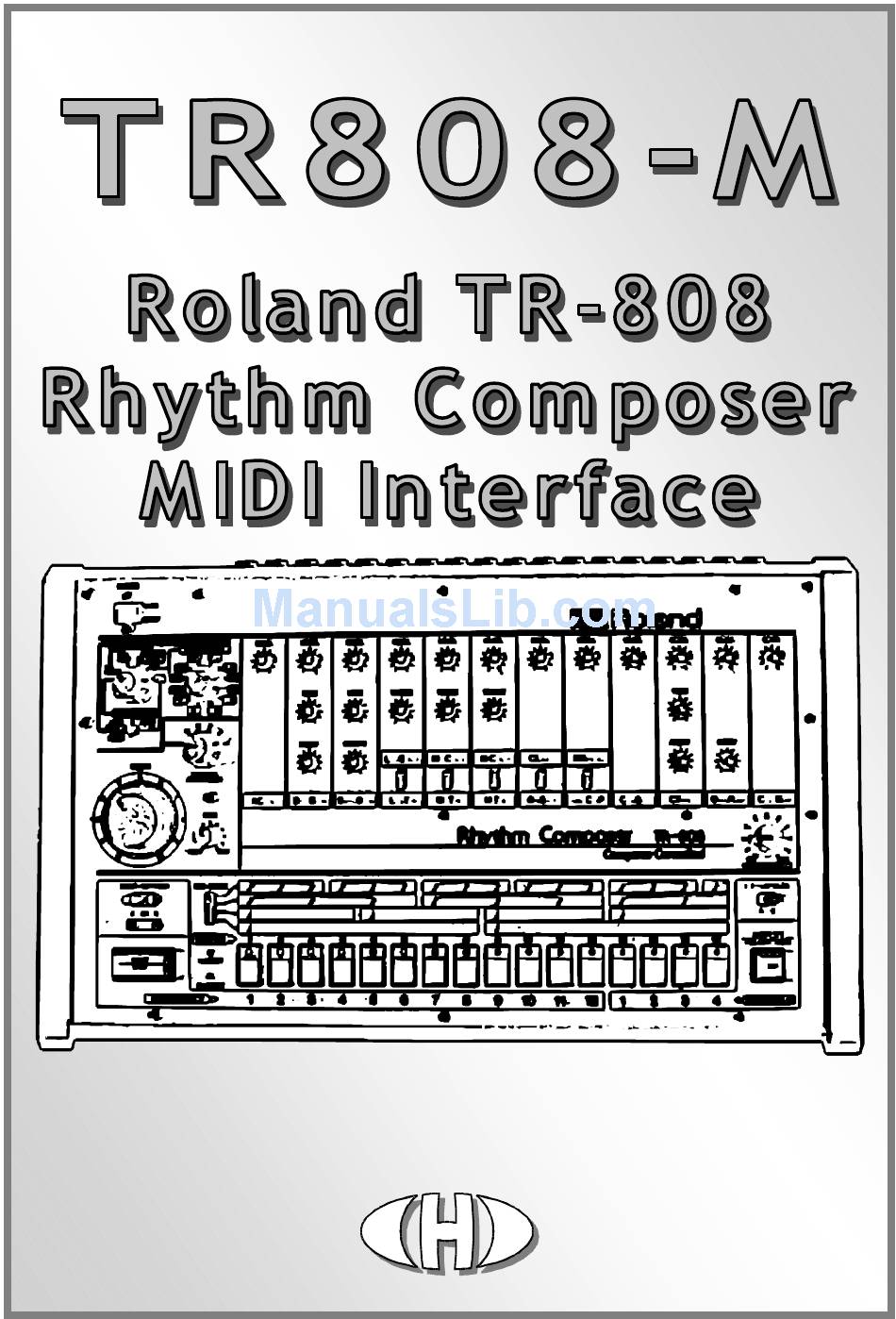

Model 8-448 ver. 3.30
OWNER'S MANUAL
© 2015 CHD Elektroservis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

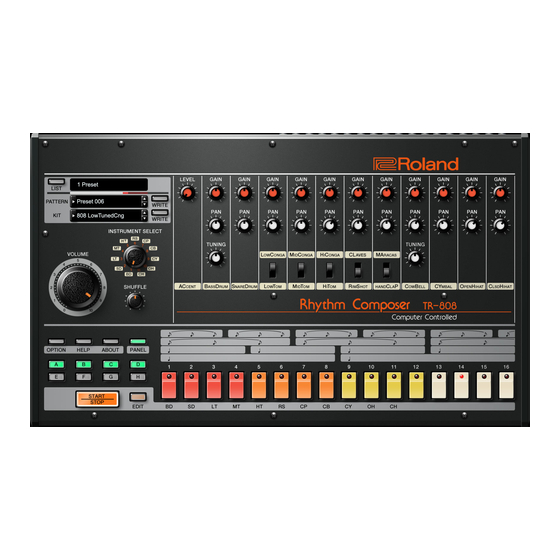

Summary of Contents for Roland TR-808

  • Page 1 Model 8-448 ver. 3.30 OWNER’S MANUAL © 2015 CHD Elektroservis...
  • Page 2: Table Of Contents

    2.2. Connection of TR-808 to MIDI bus ......Operation .........
  • Page 3: Midi Interface Description

    2.1. CONNECTION OF TR-808 TO DIN-SYNC BUS Pins number 1 to 5 of SYNC connector on TR-808’s rear panel are used for DIN-SYNC bus. For connection, standard four-core shielded cable with 5-pin DIN connector on both ends of cable is used –...
  • Page 4: Connection Of Tr-808 To Midi Bus

    MIDI cable (part of the interface delivery) is necessary. 7-pin connector on one side of the cable is used for SYNC connector on TR-808’s rear panel and 5-pin connector on the other side of the cable is used for output of MIDI transmitter (see pic. 3).
  • Page 5: Operation Modes Indication

    MIDI SysEx message. 3.3.2. “DEFAULT PROGRAM NR.“ PARAMETER The parameter specifies number of program what will be set as active after TR-808 is turned on (after the interface reset). Program Nr. 1 (also see table 3) is set as default during factory setting. If necessary, default program number can be changed by user.
  • Page 6: Dac Calibration"Parameter

    The change can be processed with help of MIDI SysEx message. 3.3.4. “DAC CALIBRATION“ PARAMETER The parameter calibrates amplitude of trigger pulses for TR-808’s sound generators so that all generators would be launched correctly. Parameter value is set to maximum (value 127) during factory setting. If necessary, the value can be changed with help of MIDI SysEx message.
  • Page 7 MIDI Interface for Roland TR-808 Model 8-448 ver. 3.30 Assigning of TR-808’s sound generators to individual MIDI notes (instrument map) is user programmable with help of MIDI SysEx messages. Assigning programmed during factory setting is listed in table 2 (also see pic. 4). That setting conforms to C/M, GM, GS, XG standards. Complete drum maps of these standards are listed in table 5 (see appendix C.).
  • Page 8: Program (Patch) Change Commands

    (with help of SysEx Message) for any program number independently. Also a program number can be ignored – no changes occur after that program number receiving. User can choose which of programs will be active after the interface reset (after TR-808 is turned on). Global parameter “Default Program“ specifies that program number.
  • Page 9: Common System Messages

    Model 8-448 ver. 3.30 • Launching of sound generators TR-808’s sound generators can be launched with internal sequencer of TR-808 only or they can be launched with help of MIDI Note-On commands simultaneously. With help of MIDI notes, sound generators are launched anytime without dependence on status of TR-808’s internal sequencer.
  • Page 10: System Exclusive Messages

    For the proper synchronization, the "MIDI Clock" tempo must be between 30 and 300 BPM. For lower or higher tempo, TR-808’s sequencer already can’t synchronize. Reaction of TR-808 to "Start", "Stop" and "Continue" MIDI commands is shown on pic. 6.
  • Page 11: Appendices

    Please contact the authorized service. Invalid data in the internal memory MIDI cell - reset the interface by switching EEPROM the TR-808 off and on. If the error remains after the reset it is a hardware Failed Cell failure. Please contact the authorized service.
  • Page 12: Drum Sets Of C/M, Gm, Gs And Xg Standards

    TR808-M MIDI Interface for Roland TR-808 Model 8-448 ver. 3.30 C. DRUM SETS OF C/M, GM, GS AND XG STANDARDS Table 5 – C/M , GM, GS, XG standards Note Standard C/M Instruments GM Instruments GS Instruments XG Instruments Muted Surdo...
  • Page 13 TR808-M MIDI Interface for Roland TR-808 Model 8-448 ver. 3.30 Table 5 – C/M , GM, GS, XG standards (Continue) Note Standard C/M Instruments GM Instruments GS Instruments XG Instruments Tambourine Tambourine Tambourine Tambourine Splash Cymbal Splash Cymbal Splash Cymbal...
  • Page 14: Midi Implementation Chart

    TR808-M MIDI Interface for Roland TR-808 Model 8-448 ver. 3.30 D. MIDI IMPLEMENTATION CHART Device : TR808-M Date : 7 / 2009 Model : 8-448 Version : 3.1 Function Transmission Reception Remarks Basic Default Channel Changed 1~16 Mode Default Mode 3...
  • Page 15: Faq & Troubleshooting

    Table6 – FAQ & troubleshooting Problem: Solution: The device doesn't receive Set SYNC switch on rear panel of TR-808 instrument to middle MIDI data at all. position. Use special MIDI cable delivered with the interface. The interface doesn't work with standard MIDI cable!
