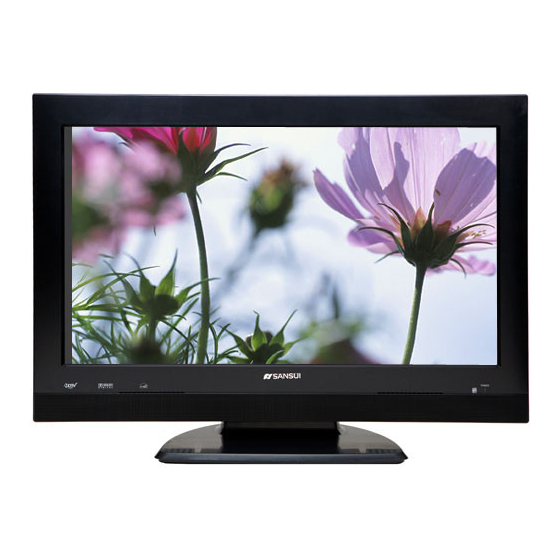

Sansui HDLCD2600 Owner's Manual

26" wide tft lcd television with digital tuner
Hide thumbs

Advertisement

Quick Links

OWNER'S MANUAL
26" WIDE TFT LCD TELEVISION
WITH DIGITAL TUNER
HDLCD2600
If you purchase a universal remote control from your local retailer, please contact the remote
manufacturer for the required programming code.
When shipped from the factory, the Tuning Band menu option is set to the "Cable" (Cable Television)
mode. If not using Cable TV, set this menu option to the "Air" position.
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
Before operating the unit, please read this manual thoroughly.
Air/Cable MODE SELECTION
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
CUSTOMER SERVICE – 1-800-289-0980
ORION WEBSITE
www.orionsalesinc.com
ATTENTION
R

Advertisement

loading

  Also See for Sansui HDLCD2600

  Related Manuals for Sansui HDLCD2600

  Summary of Contents for Sansui HDLCD2600

  • Page 1 OWNER’S MANUAL 26" WIDE TFT LCD TELEVISION WITH DIGITAL TUNER HDLCD2600 If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. When shipped from the factory, the Tuning Band menu option is set to the “Cable” (Cable Television) mode.
  • Page 2: Location Of The Required Marking

    CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a clean dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for...
  • Page 5: Safety Precautions

    IMPORTANT SAFETY INSTRUCTIONS CONDENSATION Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired. To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.
  • Page 6: Table Of Contents

    Contents PREPARATIONS IMPORTANT SAFETY INSTRUCTIONS ... 3 SAFETY PRECAUTIONS ... 5 Contents ... 6 Features ... 7 Power source ... 7 Parts and functions ... 8 Remote control ... 9 Antenna connections ... 10 Cable TV connections ... 11 Connections to other equipment ... 12 Setting the language ...
  • Page 7: Features

    • Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box. • Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. •...
  • Page 8: Parts And Functions

    Parts and functions Front Remote sensor POWER indicator Red: Standby Green: On (It alternately blinks to red and green while starting. ) Rear side AC INPUT jack To display the menu screen. Press MENU button to display the menu screen. CHANNEL ▲/▼...
  • Page 9: Remote Control

    1. POWER Button - Used to turn the power on/off to the LCD TV. 2. SLEEP Button - To set the LCD TV to turn off after a preset amount of time, use the SLEEP button on the remote control. 3.
  • Page 10: Antenna Connections

    Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 11 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Antenna Jack Antenna...
  • Page 11: Cable Tv Connections

    This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.
  • Page 12: Connections To Other Equipment

    Connections to other equipment The exact arrangement you use to interconnect various video and audio components to the LCD TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs. The connection diagrams below are offered as suggestions.
  • Page 13 To connect the LCD TV to a DVD player/Satellite receiver If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown. Left side of the LCD TV To S-VIDEO IN To AV1 AUDIO (L/R) IN To connect the LCD TV to a DVD player with component video If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component video cord.
  • Page 14 Connections to other equipment To connect the LCD TV to a DTV receiver/set-top box If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a compo- nent video cord. Left Side of the LCD TV To COMPONENT IN To AV2 AUDIO (L/R) IN To connect the LCD TV to an HDMI or a DVI device...
  • Page 15 To connect the LCD TV to a Game or a Camcorder The LCD TV can also be used as a TV device for many video games or camcorders. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams.
  • Page 16 Connections to other equipment To connect the LCD TV to a PC (Personal Computer) Before you connect this LCD TV to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz). Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC MONITOR on the back of the LCD TV.
  • Page 17: Setting The Language

    You can choose from three different languages (English, French and Spanish) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options. NOTE: • If no buttons are pressed for more than about 30 seconds, the MENU screen will return to normal opera- tion automatically.
  • Page 18: Memorizing Channels

    Memorizing channels This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Tuning Band menu option to the Air mode.
  • Page 19 NOTE: • Memorizing channels is best accomplished during evening “PRIMETIME” hours, as more stations are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set that channel into memory. • No stations can be registered to Channel 3 or Channel 4 by using “Auto Channel Search”...
  • Page 20: Manual Ch Set

    Memorizing channels Manual Ch Set You can select the channel that you want to skip. Press MENU. The menu screen will appear. Press ▲ or ▼ to select “Setup” menu, then press . Press ▲ or ▼ to select “Manual Ch Set”, then press ENTER.
  • Page 21: Tv Operation

    NOTE: • If a channel with no broadcast is selected, the sound will automatically be muted. • It may take a few seconds for a digital channel picture to appear on screen after being selected. To turn on the TV, press POWER. (POWER indicator on the front of the unit blinks while starting.
  • Page 22 TV operation NOTE: • The TV is capable of holding a still video image or On screen display image on your TV screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your TV screen.
  • Page 23 NOTE: • You can also set the sleep timer by pressing SLEEP on the remote control. • After the sleep time is programmed, the display will appear briefly every 10 minutes and 5 minutes, 1 minute before to remind you that the sleep timer is operating.
  • Page 24: Labeling Channels

    Labeling channels Channel labels appear over the channel number display each time you turn on the TV, select a channel, or press DISPLAY. You can choose any seven characters to identify a channel. NOTE: • The channel labels will be reset after “Auto Ch Search”.
  • Page 25: Setting The V-Chip

    An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to “TV RATING” and “MPAA” if this data is transmit- ted. You may set this restriction separately. To use the V-Chip function, you must register a password. NOTE: •...
  • Page 26 Setting the V-Chip To use the TV after the TV is protected. When a program is received that is blocked by the V-Chip, press DISPLAY or MENU. The protection will be temporarily overridden. If the TV is turned off, the V-Chip restriction will be reactivated.
  • Page 27 To change the password Press MENU. The TV menu screen will appear. Press ▲ or ▼ to select “Feature” menu, then press Press ▲ or ▼ to select “Password Set”, then press or ENTER. Use Number buttons (0-9) to enter your password. Enter a new password using Number buttons (0-9).
  • Page 28 Setting the V-Chip NOTE: • You can only download the additional V-Chip rating system when your TV is receiving a digital signal. • When you download the additional rating system, it may take some time for the download to occur. •...
  • Page 29: Closed Caption

    WHAT IS CLOSED CAPTIONING? This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language. NOTE: •...
  • Page 30: Cc Advanced

    CC advanced When you have selected CUSTOM as the display method, you can adjust the various setting listed below as follows: NOTE: • Do not set the Closed Caption “Text Color” and “Background Color” as the same color or you will not be able to see the text.
  • Page 31: Setting The Picture Size

    You can view 480i and 480p format programs in a variety of picture sizes— Normal, Zoom, Wide and Cinema. NOTE: • Some High Definition and/or Digital broadcasts may not allow you to change the picture size. Setting the picture size Selecting the picture size Press MENU.
  • Page 32 Setting the picture size NOTE: • In HDMI or COMPONENT mode with a scanning rate of 720p or 1080i, only the Normal and Cinema picture size features are available. • In PC mode, only the Normal and Wide picture size features are available.
  • Page 33: Adjusting The Picture Preference

    Adjusting the picture preference/Picture control adjustment You can select four picture modes—Vivid, Standard, Movie and User—as described in the following table: NOTE: • The CONTRAST default setting is set to maximum at the factory. Adjusting the picture preference Press MENU. Then press ▲ or ▼ to select “Picture”...
  • Page 34: Dnr

    DNR/Selecting the color temperature DNR (Digital Noise Reduction) can reduce the roughness of the picture. Press MENU. Then press ▲ or ▼ to select “Feature” menu, then press Press ▲ or ▼ to select “Advanced Video Menu”, then press or ENTER. Press ▲...
  • Page 35: Setting The 3D Y/C

    Setting the 3D Y/C 3D Y/C reduces visible interference in your TV picture. This is useful when receiving a broadcast with a weak signal (especially a Cable channel) or playing a video cassette or disc damaged by repeated use. Press MENU. Then press ▲ or ▼...
  • Page 36: Selecting Stereo/Second Audio Program (Sap)

    Selecting Stereo/Second Audio Program (SAP)/ Sound control adjustment The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio informa- tion. When the TV receives a stereo or SAP broadcast, the word “Stereo”...
  • Page 37: Selecting The Audio Language

    Selecting the audio language/ Selecting the digital output Selecting the audio language When two or more audio languages are included in a digital signal, you can select one of the audio language. Press MENU. Then press ▲ or ▼ to select “Audio” menu, then press Press ▲...
  • Page 38: Checking The Digital-Signal Strength

    Checking the Digital-signal strength/ Resetting your settings NOTE: • Signal meter feature is not available for analog channels. • After 180 seconds, DTV Signal screen will return to normal TV- operation automatically. • You also can reset the settings by pressing RESET when “Setup”...
  • Page 39: Picture Control Adjustment In The Component And Pc Mode

    Picture control adjustment in the Component and PC mode You can adjust to optimize the performance of the TV in the Component and PC mode. NOTE: • If no buttons are pressed for more than approx. 30 seconds, the Menu- screen will return to normal Monitor- screen automatically.
  • Page 40: Reception Disturbances

    Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.
  • Page 41: Troubleshooting

    Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. SYMPTOMS POSSIBLE SOLUTIONS • Make sure the power cord is plugged in. TV does not •...
  • Page 42: Specifications

    Specifications Power supply: Power consumption: Weight: Dimensions: Inputs: VIDEO: AUDIO: S-VIDEO: COMPONENT: Digital audio out: HDMI input: PC Monitor input: Type: Number of Pixels: Viewing angle: Antenna input: Tuner type: Receiving channels: Speaker: Sound output power: ACCESSORIES: Designs and specifications are subject to change without notice. AC 120 V 60 Hz Operation: 125 W Stand by:...
  • Page 43: Limited Warranty

    ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 90 days from date of original purchase in the United States. Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunction during the first 90 days from date of original purchase, ORION will provide carry-in service only by an ORION authorized Independent Service Center at no charge.
  • Page 44 Printed in Thailand J33S0101A SH 07/08...
