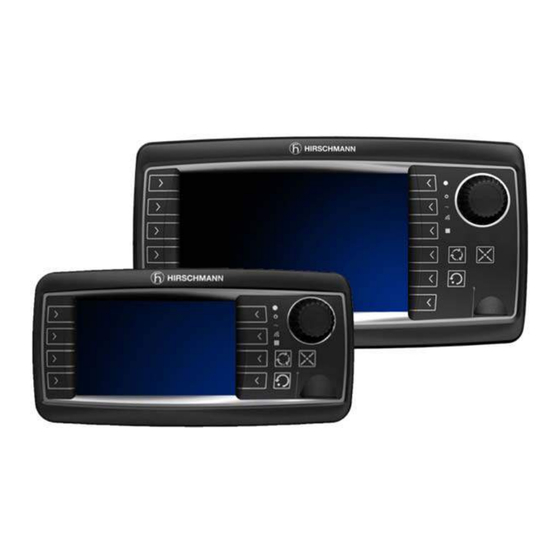

Hirschmann qSCALE maestro Service Manual

High-performance load indicator system
Hide thumbs
Table of Contents

Advertisement

Quick Links

HIRSCHMANN MCS
qSCALE
maestro
PLC v01.00.00
Service Manual
Issue E – 04/2018
HMI v01.00.00
This document has the order number:
MAN-QSCA-S-0008
Contents
Safety instructions
Product description
Service Menus
Service and Maintenance
Appendix
1
2
3
4
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the qSCALE maestro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann qSCALE maestro

Summary of Contents for Hirschmann qSCALE maestro

  • Page 1 HIRSCHMANN MCS qSCALE maestro Contents PLC v01.00.00 Safety instructions Product description Service Menus Service and Maintenance Appendix Service Manual Issue E – 04/2018 HMI v01.00.00 This document has the order number: MAN-QSCA-S-0008...

  • Page 2: Table Of Contents

      Screen Capture ..................39 Service : (717) 217-2250 WIKA Mobile Control LP Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 3 Error Codes Table ................... 68 Service : (717) 217-2250 WIKA Mobile Control LP Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 4 Updated System Layout, added kit drawings Service : (717) 217-2250 WIKA Mobile Control LP Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 5 Service : (717) 217-2250 WIKA Mobile Control LP Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 6 Supplementary comments and recommendations for the user. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 7: Safety Instructions

    The device may only be connected to a DC voltage source of 10 V to 30 V! WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 8: Components

    STRAIN RELIEF ACCY, PFLITSCH RUBBER HOLE PLUG BO 9-13MM 051293 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 9: Junction Box, Qscale Maestro (061179)

    WIRING ACCY, CRIMP TERMINAL, 18-22AWG, INSULATED, RED 051304 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 10: Pressure Sensor Kit (102121)

    000-207-010-064 SENSOR, LENGTH POT.W/O 067-000-100-204 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 11: Sensor Assembly Length Angle Wgx/Can (061185)

    SENSOR, LENGTH POT.W/O 067-000-100-204 1.00 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 12: Indicator Kit, Light Tower (102127)

    0935 253 105/10 M 15734 1.00 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 13: Description Of The System

    This data is the reference information used to calculate the operating conditions. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 14 The machine driver is responsible for the safe operation of the machine. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 15: Product Identification

    For general system operation, refer to the console Operator’s Manual. 3.3 EC Conformity Declaration The technical design and construction of the qSCALE maestro system corresponds to requirements of the EMC directive 2004/108/EC and therefore carries the CE symbol. The device complies with the following standards: EN 12895:200, EN 13309:2010, EN ISO 14982: 2009 The full conformity declaration is available from the manufacturer on request.

  • Page 16: Overview Of Console Elements

    HOME key: Returns to Main Working Screen ESCAPE key: Aborts Function WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 17: Overview Feedback Elements

    Yellow Machine nearing operational limit WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 18: Service Menus

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 19: Obtaining The Daily Password

    12:00am at which time a new seed is created. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 20: System Settings

    New Password Entry. (See Section 4.2.2) WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 21: System Settings Breakdown

    Jib Status On: Jib Status Off:  WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 22 Full Screen 0: Full Screen 1: WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 23: New Password Entry

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 24: Sensor Calibration

    Calibrate Length Sensor Luffing Cylinder Tuning WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 25: Calibrate Angle Sensors

    Fully lower the boom and press  WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 26 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 27: Calibrate Length Sensors

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 28 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 29: Luffing Cylinder Tuning

    Function disabled until factors measured computed WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 30 0 or the rod and piston pressure are changing outside of 5 bar. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 31 WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 32: Entering Measurements

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 33: Alarm Volume

    Pressing the knob or to confirm. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 34: Service And Maintenance

    If there were no files previously the folder will be empty. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 35: Reading The Event Recorder

    USB drive. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 36: Reset Hour Meter

    System Infor- mation Screen WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 37: Change Date And Time

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 38: Rotate Display

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 39: Screen Capture

    Once a screenshot is taken the images in internal memory are copied to the USB drive and removed from internal memory. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 40: Mismatched Da4

    To resolve the error the project file must be reinstalled using the procedure described in section 5.1. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 41: Maintenance And Repair

    If parts are damaged, they must be properly repaired or replaced immediately. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 42: Troubleshooting

    Load Sensing to narrow down the source of your problem. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 43 Please go to section 6.10 CAN Bus Communication. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 44: Initial System Inspection

    Low system voltage can cause CAN bus errors. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 45: Indicator Definitions

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 46: Boom Angle Sensing

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 47 CAN line may be the issue. Check the entire CAN Bus system to ensure proper wiring and connections. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 48: Boom Length Sensing

    CAN line may be the issue. Check the entire CAN Bus system to ensure proper wiring and connections. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 49: Cable Reel Length Cable Replacement Procedure

    16. Connect the length cable to the appropriate boom tip connection. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 50: Pressure Sensing

    WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 51: Load Sensing

    If you still have a problem, replace pressure transducer(s). WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 52: Anti-Two Block Switch (A2B)

    Some systems have two (2) A2B switches wired in series. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 53: A2B Problem - Flow Chart

    Use the following flow chart to troubleshoot errors with A2B switch input. Flow Chart WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 54: No Console Display

    If power is not being supplied, trace the wiring to determine why. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 55: Can Bus Communications

    Each node has a unique identifier. This allows for a common pair of shielded wires (the bus) to carry all signals. WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 56 The CAN Bus requires that 120 Ohm resistors be at each end of the CAN bus The resistors in parallel yield 60 Ohms of resistance between the CAN High and CAN Low cables. One of these resistors is located inside the qSCALE maestro S6 Controller. The other is in the WGX angle sensor contained in the Cable Reel.
  • Page 57 CAN +UB CAN GND CAN_H CAN_L WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 58: Troubleshooting Sensors With Display

    Response Timeout No Signal From Sensor WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 59: Readings Of Digital Inputs

    Response Timeout No Signal From Sensor WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 60: Readings Of Digital Outputs

    Not Calibrated Deactivated Response Timeout WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 61: Appendix

    - User manual (PDF file or on data storage device) WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 62: System Layout Drawing

    HIRSCHMANN MCS 7.2 System Layout Drawing WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 63 HIRSCHMANN MCS WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 64 HIRSCHMANN MCS WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 65: Junction Box Wiring Diagram

    7.3 Junction Box Wiring Diagram WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 66: Vscale D2 Diagram

    HIRSCHMANN MCS 7.4 vSCALE D2 Diagram WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 67: Vscale D3 Diagram

    HIRSCHMANN MCS 7.5 vSCALE D3 Diagram WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.

  • Page 68: Error Codes Table

    Parameter Error 1Bxx Unspecified Error WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 69 Operation is restricted to permitted conditions (load chart) WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 70 Warning: Load Lift not monitored WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 71 CAN configuration. Replace faulty sensor WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 72 CAN configuration. Replace faulty sensor WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 73 Service if the error occurs again WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 74 If so, on which page? WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 75 76275 Ettlingen Thank You ! WIKA Mobile Control LP Service : (717) 217-2250 Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
  • Page 76 HIRSCHMANN MCS Notes Service : (717) 217-2250 WIKA Mobile Control LP Parts / Sales : (717) 217-2269 1540 Orchard Drive www.wika-mc.com Chambersburg, PA 17201 qSCALE maestro (PLC v01.00.00) Service Manual / Issue E (HMI v1.0.0) 04/2018 / rbm.
