Maxcom MM29D 3G User Manual

Tri-band desk telephone gsm/wcdma for public 2g/3g networks: 900/1800/2100 mhz
Hide thumbs
Table of Contents

Advertisement

Quick Links

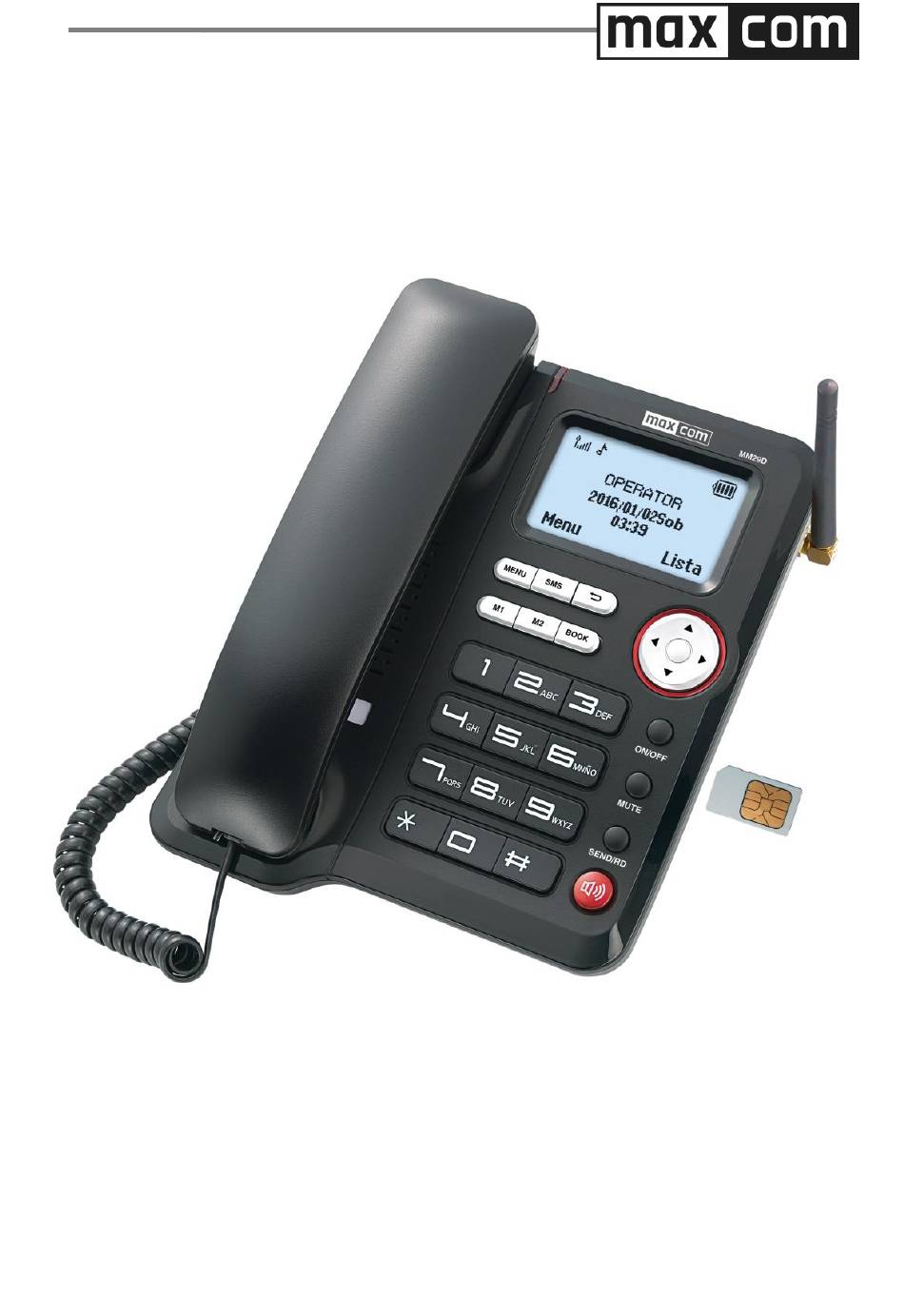

Tri-band desk telephone GSM/WCDMA for
public 2G/3G networks: 900/1800/2100 MHz
Maxcom MM29D 3G
USER MANUAL
Reading the User Manual prior to first use is highly recommended

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM29D 3G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxcom MM29D 3G

Summary of Contents for Maxcom MM29D 3G

  • Page 1 Tri-band desk telephone GSM/WCDMA for public 2G/3G networks: 900/1800/2100 MHz Maxcom MM29D 3G USER MANUAL Reading the User Manual prior to first use is highly recommended...
  • Page 3 If any technical assistance is required, please call our hotline at (+48) 32 325 07 00 or email us at serwis@maxcom.pl Our website: http://www.maxcom.pl/ The set includes: Base Unit Handset Coiled Cable Base Unit Lifter AC Adapter Antenna Battery User Manual...

  • Page 4: Table Of Contents

    Contents: INTRODUCTION ....................7 ACCESSORIES ....................7 SAFETY PRECAUTIONS ..................7 EMERGENCY CALL (112) ................... 9 BASIC INFORMATION ..................9 LCD S ................12 CREEN ESCRIPTION 5.1.1 LCD Screen Icons..................12 GETTING STARTED ..................13 SIM C ..................13 NSTALLATION ..................14 ATTERY NSTALLATION ..................15 EMOVING THE ATTERY...
  • Page 5 ..........24 ELETING UMBERS FROM THE HONEBOOK ...................24 OPYING ONTACTS ................24 OPYING ULTIPLE ONTACTS ................25 RANSFERRING ONTACTS ’ ..................25 ONTACT ETAILS ....................25 EMORY TATUS 8.10 ....................25 PEED TEXT MESSAGES ..................... 26 ......................26 NBOX ................27 REATING ESSAGES ......................27 UTBOX ......................28 RAFTS ....................28 EMPLATES .......................28 ENTBOX...
  • Page 6 12.4 LCD S ....................33 CREEN 12.4.1 Contrast .....................33 12.4.2 LCD Backlight ..................34 12.5 .......................34 ECURITY 12.5.1 SIM Card Lock ..................34 12.5.2 Update PIN ..................34 12.5.3 Phone Security ...................34 12.6 ..................34 ETWORK ETTINGS 12.7 ....................34 ETWORK RINGTONES ....................35 13.1 ...................35 ROFILE ETTINGS NETWORK SERVICES ..................

  • Page 7: Introduction

    User Manual. For more information and for any kind of assistance go to our website at www.maxcom.pl. The Manufacturer reserves all rights to content of this Manual.
  • Page 8 • SERVICING - never repair nor modify the phone on your own; all repairs should be made by authorized service only. • CLEANING - never clean the phone with any chemicals or corrosives. • HEARING AID – if the User has a hearing aid, the phone volume and hearing aid sensitivity should be carefully adjusted.

  • Page 9: Emergency Call (112)

    (112) MERGENCY To call the emergency number (112), you should: • Switch on the phone in area within good reception (some service providers require the SIM Card to be inserted), • Dial the emergency number 112 and press the key or pick up the handset.
  • Page 10 2. LCD Screen 3. Back key : In menu: pressing the key goes back one step, deletes a single character. In Idle mode, it enters the Phonebook. 4. Key UP allows to navigate up in Menu. In Idle mode, it enters the Phonebook.
  • Page 11 18. AC Adapter port on the main panel. 19. Antenna port 20. USB port (for service purposes)

  • Page 12: Lcd Screen Description

    LCD Screen Description 1. Icon status bar 2. Service Provider 3. Date & Time 4. The OK key function 5. The BACK key function 5.1.1 LCD Screen Icons Icons Meaning Network signal strength. The larger the filled in section of the icon, the stronger the signal.

  • Page 13: Getting Started

    A Text Message Icon: it is displayed in the top corner of the screen and it inidcates an unread text message. Silent Mode enabled No power from battery. Power from the AC Adapter. Important: In order to save power, the LCD screen automatically goes into Idle mode after certain time.

  • Page 14: Battery Installation

    Inserting the SIM Card while the phone is switched on might damage the phone. Move the SIM Card slot pin to the left, and fold it back. Slide the SIM Card into the slot so that its golden contacts will face downwards with the notched corner next to the battery contacts.

  • Page 15: Removing The Battery

    white Plug in the AC Adapter. Removing the Battery Plug out the AC Adapter. Remove the cover of battery and the SIM Card located in the back of the phone. Use your fingernail to slide the latch in the cover. Remove the battery, and then remove the battery plug (do not pull the wire).

  • Page 16: Connecting The Handset

    Connecting the Handset Connect one end of the coiled cable into the handset jack, and the other into the jack located on the left hand side of the phone. Connecting the Antenna In order to boost reception, install the antenna. In order to do so, remove the red protection tape from the antenna port located on the side of the phone, and gently install the antenna.

  • Page 17: Mount/Unmount The Unit Base Lifter

    Mount/Unmount the Unit Base Lifter 6.6.1 Mounting the Unit Base Lifter In oder to mount the unit base lifter, switch off the phone and put it on its keypad. Insert two pins into openings 1 and 2 located at the top part of the phone.
  • Page 18 Handset hook 2. Insert two anchors into wall – check the distance between screws on the phone. Select the anchor diameter so that the screw heads will fit into the phone openings. Anchors should stick out about 3 mm from the wall. 108,00mm 3.

  • Page 19: Powering On/Off The Phone

    Powering On/Off the Phone Plug in the battery and the AC adapter, and then press the key ON/OFF. A LCD screen should backlight. If there is a battery installed, the battery icon will be displayed on the LCD. If there is only the AC adapter plugged in, only a symbol of a plug will appear on the screen.

  • Page 20: Using The Phone

    If you enter an incorrect PIN code three times in a row, the SIM card will be locked. You might unlock the card by entering the PUK Code. If you enter the incorrect PUK ten times, the SIM Card will be permanently locked.

  • Page 21: Receiving Phone Calls

    - Press Options>Call. Pick up the handset to talk via the handset. - Press SEND/RD. Pick up the handset to talk via the handset. 1. Making international phone calls For international phone calls, you must dial „00” or „+” prior to dialing the actual number.

  • Page 22: Options While Calling

    Options While Calling While calling, press the key MENU, to view additonal options: Add new conversation Suspend – select to suspend a call. To undo press OK and select Restore. Mute the mike to disable the mike while calling. To enable the mike, press the key MENU and then Disable the mute.

  • Page 23: Viewing Contacts

    Viewing Contacts While viewing entries in the Phonebook, you can enter a character and view the list of Contacts whose names start with this character (as they were saved). After selecting the Contact, press the key SEND and pick up the handset.

  • Page 24: Adding A Contact

    Adding a Contact Enter the phone number directly in Idle mode, then press the key Menu. Select if you want to add the number to an existing Contact (replace an existing number) or to create a new Contact. If you create a new Contact, select the location, either the SIM Card or the phone.

  • Page 25: Transferring Contacts

    Menu>Phonebook>Options>Copy Then select where to copy Contacts from, press Options>Select>Phone/SIM>OK Press Options>Copy Use keys Up/Down to select the Contact you wish to copy Press Options>Mark>OK If you wish to mark another Contacts, repeat the two previous steps Press Opcje>OK to copy marked Contacts Transferring Contacts In order to copy all Contacts, in Idle mode with the handset on the unit base go to:...

  • Page 26: Text Messages

    - Press the Phonebook, select the Contact and press OK>OK. If you want to use Speed Dial, in Idle mode or after picking up the handset press and hold the key with the number you wish to call until the message: Calling appears on the screen. ESSAGES The message service depends on the phone network function and it allows to send, receive and edit messages.

  • Page 27: Creating New Text Messages

    Creating New Text Messages Important: a message can not be longer than 160 characters. If Polish diacritic characters are used, the message can not be longer than 60. There is information about the number of characters in the top right corner.

  • Page 28: Drafts

    Drafts Ready-to-go messages might be saved in the folder „Drafts”. To do so, enter the text message, press Options>Save as Draft. Go to Drafts to send, edit or delete saved messages. Templates Select a ready template to quickly send a message. The User might add his/her own templates.

  • Page 29: Voicemail

    Voicemail Voicemail is a network service that allows callers to leave a voice message when you cannot answer the phone call. To learn more, contact your service provider. You can get the voicemail number from your service provider. The number must be entered: Menu->Messages- >Voicemail Server>Voicemail Number.

  • Page 30: Extras

    11 E XTRAS 11.1 Calendar Select Menu>Extras>Calendar. Press Options to go to other date or to return to current date. 11.2 Alarm Select Menu>Extras>Alarms. You can set no more than 3 alarms. The alarm will go off as soon as the selected time concurs with the actual time, as set on the phone.

  • Page 31: Settings

    12 S ETTINGS 12.1 Call Settings 12.1.1 Call Forwarding It is a network service. If your provider offers such service, configuration will be required. The User might direct incoming calls to be forwarded directly to the selected number. To do so, select Menu>Settings>Call Settings>Call Forward, and then: Forwarding under any condition Forwarding if busy Forwarding if no answer...

  • Page 32: Number Withhold

    12.1.4 Number Withhold It is a network service. If your provider offers such service, configuration will be required. This option allows to hide your own number while making phone calls. Select „Establishes Network”, „Withhold Number” or „Send Number” and press „OK”. 12.1.5 Answering Phone Calls by Any Key To enable the option of answering a phone call by pressing any key, select Menu>Settings>Call Settings>Other.

  • Page 33: Language

    12.2.2 Language To change the phone language, in Idle mode press: - 1x MENU - 3x key Down, - 1x key MENU - 1x key Down - 1x key MENU - 1x key Down - 1x key MENU Then select the language, and press MENU to confirm. 12.2.3 Delayed Dialing Select Menu>Settings>Phone Settings>Delay After Dial, to select time after the number has been dialed (by using a handset or with the...

  • Page 34: Lcd Backlight

    12.4.2 LCD Backlight To change the time for the LCD to be backlit, select Menu>Settings>Display Screen>Backlight and press OK. Use keys Up/Down to select the time you need and press OK. 12.5 Security 12.5.1 SIM Card Lock Select Menu>Settings>Security>PIN>Enable to enable/disable a prompt to enter the PIN Code.

  • Page 35: Ringtones

    13 R INGTONES To enable/disable the Silent mode, in Idle mode press and hold the key 13.1 Profile Settings Select Menu>Ringtones, and then: - Ringtone Settings>Ringtone or Message Alert. Use keys Up/Down to select the ringtone/alert you wish and press OK to confirm.
  • Page 36 „Cannot make a Make sure the number you are dialing is correct. If phone call” you make an international phone call, dial a country code before the actual number (eg. 0049 or +49 for Germany). If you have a prepaid card, make sure there are sufficient funds available on the card to place a phone call.

  • Page 37: Technical Specs

    „What is the Text It is the service provider’s center number storing all Message Center”? text messages. The number is stored on the SIM Card, but you can change the number in the phone MENU and enter another number. „ When is the fee A fee for making a phone call is charged as soon as for making a...

  • Page 38: Protect Your Environment

    After multiple charges and discharges, it is natural for the battery to eventually lose its ability to hold charge. Get a new battery if you notice a significant drop in the battery performance. Use only batteries recommended by the Manufacturer. Never keep the phone in excessively hot places.
  • Page 39 This Manual is for information only. Some functions and options might vary depending on its software and location (country). For any help please call +48 32 325 07 00 or email at serwis@maxcom.pl Our website: http://www.maxcom.pl/ The Manufacturer is not liable for any consequences of misuse, abuse or use in violation of the User Manual.
  • Page 40 Bay Area Compliance Laboratories Corp. (BACL, number: 1313 performed intervention in accordance with Annex III (Module B) Directive 2014/53/EU and issued the EU-type examination certificate: Certificate No. .B1707312 Signed for and on behalf of: Maxcom S.A. place and date of issue: name, function: Tychy, 28-09-2017...
  • Page 41 MAXCOM S.A. 43-100 Tychy, ul Towarowa 23a POLAND tel. +48 32 327 70 89 fax 48 32 327 78 60 www.maxcom.pl office@maxcom.pl...
