Maxcom MM41D User Manual

4g fixed wireless phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

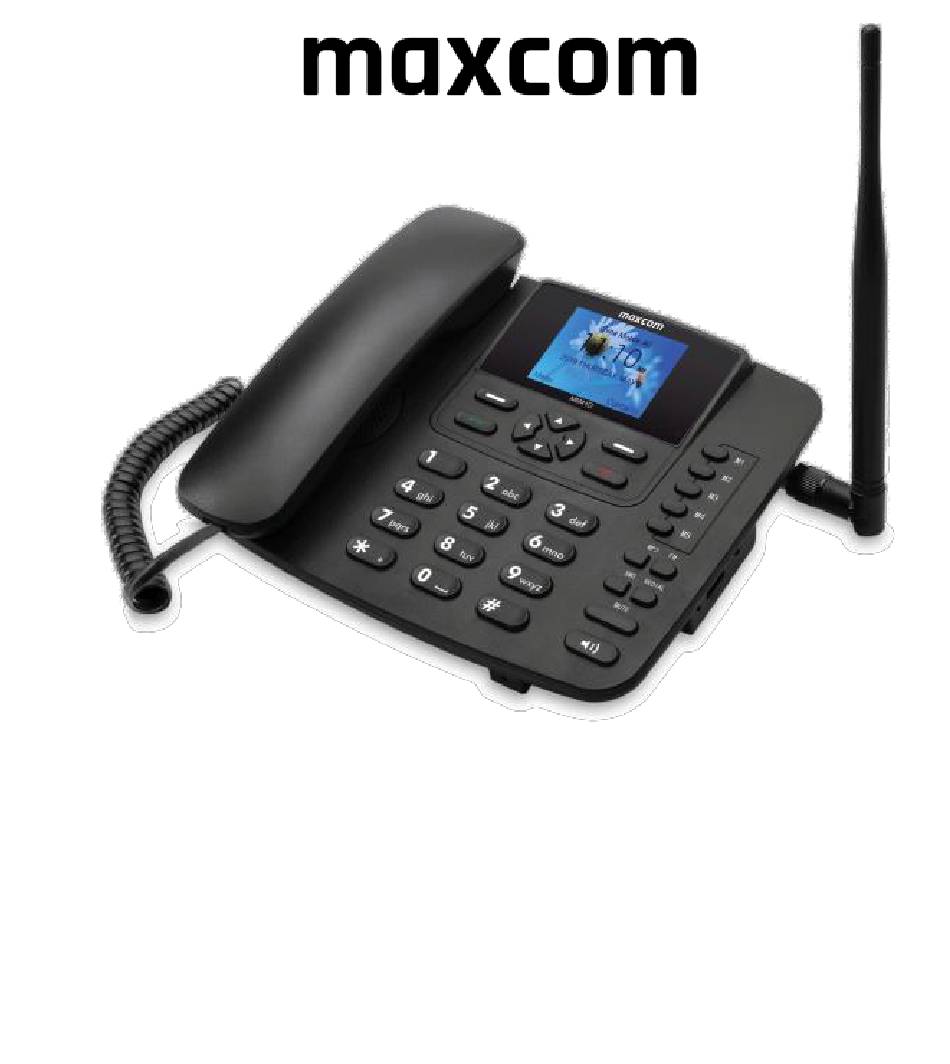

Maxcom MM41D
4G Fixed Wireless Phone
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Maxcom MM41D

Summary of Contents for Maxcom MM41D

  • Page 1 Maxcom MM41D 4G Fixed Wireless Phone User Manual...
  • Page 2 Safety and Maintenance While using the phone, please observe the following points • Before use please read the instruction manual carefully. • Do not power on the phone when use of the phone is prohibited or it may cause interruption or danger. •...
  • Page 3 • Do not hold the phone in your hand while driving. Do not put the phone above the air bag or within reach of the airbag so as to prevent damage when the airbag is inflated. • Original battery, charger and accessories should be used.
  • Page 4 • Do not use benzene, thinner or alcohol to clean the cover of your phone. Keep your phone away from corrosive chemicals such as detergent. Use a clean and soft cloth instead and wipe gently. • Prevent your phone from insulation or places with excessive smoke or dust.
  • Page 5 While using battery, please observe following points • Before use, please read instructions for use, as well as the label on the surface of battery. • Please charge the battery in a cool and well-ventilated room. Otherwise, high environment temperature may lead to overheating, smoking, burning, distortion or even explosion of the battery.
  • Page 6 cathode of the battery, so do not put the battery together with metal objects. • Please keep the metal contact points and battery clean. • Do not use a damaged or depleted battery. • The battery should be replaced when it cannot meet the requirements for performance.
  • Page 7 • Do not put the battery in fire so as to avoid explosion. • Do not put the battery in water so as to avoid short circuit inside, resulting in battery overheat, smoking, distortion, damage or even explosion. • Treat battery according to local regulations (for example, recycling).
  • Page 8 • Do not disassemble or modify the charger or use it when power cable is damaged; otherwise there will be electric shock or fire, or the charger may be damaged. • Do not touch the charger with wet hands. If the charger contacts water or other liquids, immediately cut off the power supply.
  • Page 9 1. Your Phone 1.1 Appearance...
  • Page 10 1.2 Key description Press to dial the Preset number if set M1~M5 OK.Family number. Shortcut to access the Music menu in idle screen.
  • Page 11 Shortcut to access the FM menu in idle screen. Shortcut to access the sms menu in idle screen. In standby mode, press to enter Redial Call log menu. And can redial the last number. When the call is connected, select it MUTE to switch to MUTE mode.
  • Page 12 You can scroll the cursor with the UP key; UP KEY Shortcut to calendar menu in idle screen. You can scroll the cursor with the DOWN key; DOWN KEY Shortcut to access the settings menu in idle screen. Turn down the volume during conversation, LEFT KEY Shortcut to access the FM menu in...
  • Page 13 Power on or Press and hold about of 3 seconds to off/ power the phone on/off; Press the end key to end the phone call or go back to the idle screen. To input numbers and characters; In idle screen, press * to enter *; In editing screen, press * to enter the 0~9 Numeric special symbol mode.
  • Page 14 Calling Activated silent mode. Hotspot signal Hotspot signal The signal of WLAN Network Identification( registered) Bluetooth Battery life. 1.4 Screen background light Background light can illuminate the screen. When you power on your phone, the background light will turn on for a certain period.
  • Page 15 1.5 Adjust the volume During a call Press [Right Key] to increase the volume. Press [Left Key] to decrease the volume. During MP3 playing Press [up Key] to increase the volume. Press [down Key] to decrease the volume. During FM playing Press [Right Key] to increase the Increase frequency band.
  • Page 16 1.Headset 2.RJ45 3.USB mini head 4. Antenna Connector 5.Battery Jack 6.SIM card Slot 7.SD card slot 8.RJ9 handset cord Jack...
  • Page 17 2.2 Assemble the antenna 2.3.Charging the battery by adapter When the battery is fixed to the phone , put Mini USB cable to AC-Adapter Jack. During charging, screen shows the battery charging icon, when the battery is full, the charging icon will stop rolling. 2.4.Install SIM card...
  • Page 18 Always switch the phone off before removing or inserting SIM card. Open the bottom cover of the battery. Remove the battery; slide the SIM card into the SIM card slot. Make sure that the contact area of the card is facing down, and the beveled corner matches with the SIM card slot.
  • Page 19 PIN code is used to prevent illegal use of user’s SIM card. If your phone has enabled PIN code protection, there will be prompt for entering the PIN code. If wrong the PIN code is entered for three times, the SIM card will be automatically locked.
  • Page 20 4. Basic Function 4.1 Dial Phone 4.1.1 In standby state, press the number keys to enter the phone number and then press [Send key] to call. 4.1.2 Press [DEL/BACK key] to clear the last digit or hold it to clear all.If the phone number being dialed can be recognized by the phone book, the name of the contact person will be displayed on the dialing screen.
  • Page 21 4.3.2 Slide the scroll bar to select the person you want to call or the number you want to dial. 4.3.3 Press [Send key] to dial out the number. 4.4 Answer incoming call When there is an incoming call, incoming call interface will be displayed together with a special ringtone.
  • Page 22 During the call, press [Power key] to terminate current call. 4.6 Making emergency calls As long as you are within coverage of network, you can make emergency calls even you have not registered to the local network or do not have SIM/UIM card. Enter local emergency number and then press [Send key] to make an emergency call.
  • Page 23 The phone provides some talk control functions in the process of call. During the call, press [DEL/BACK key] to back to Home status. During the call, press [Left soft key] to enter [Options] menu to access the talk control functions. Hold/Resume talk state If network supports, you can hold current call.
  • Page 24 Please make sure the network supports the call waiting function and the status has been set to Enabled. If there is a second incoming call in the process of the first call, you’ll hear the “Beep” tone and the screen will prompt.
  • Page 25 Menu Functions You can press [Left soft key] in standby state to enter the main menu. Press [DEL/BACK key] or [Power key] to return to standby mode. 5.Messaging In standby state, enter [Menu][Messaging] menu. Write Message In the edit mode, you can edit SMS content and add recipient.
  • Page 26 Cell broadcasts: Receiving Broadcast Information from Cells Messages in SIM：Insert template message. Message Setting You can set the function for Text message, for example:Delivery report, SMS Validity,Manage SIM card messages,Save SMS On SIM,SMS Service Center ,Delivery report,Multimedia Message Validity and so on.
  • Page 27 6. Contacts In standby state, enter [Menu][Contacts] menu. Move the cursor to input box for search the contact record quickly, you can input the character or number to search from the records list, and the matched records will list on the LCD。 Press [Left soft key] to enter [Options] menu, with the following options:Add contact, contacts to display ,Import/Export,Batch delete,SIM capacity,Phone...
  • Page 28 7. History In standby state, enter [Menu][History] menu. 7.1 All In standby state, enter [Menu][History] [All] menu. All call log will be list. And select one record, you can do some operations as below: Select: make a call to the current number. Add to blacklist: Add the current number to blacklist.
  • Page 29 8.1 Calendar In standby state, enter [Menu][Extra] menu. The following are the functions. Today: Move the cursor to the current data in the calendar interface. Select Date: Move the cursor to the special data in the calendar interface. 8.2 Calculator In standby state, enter [Menu]...
  • Page 30 [DEL/BACK key]: Press to clear contents that have been entered. [*]: press to enter “-”. 9.Music In standby state, enter [Menu][Music] menu, and also you can press [MP3] key to enter the music menu directly. All media files will be list on the LCD when the phone enter music menu, and you can select one to play.
  • Page 31 10.FM Radio In standby state, enter [Menu]FM Radio and also you can press [FM] key to enter the FM menu directly..The following are the options: Radio List: Channel the new FM from the list. Turn Off: Exit the FM player. 11.Settings In standby state, enter [Menu][Settings] menu.
  • Page 32 11.2 Display You can set below items. Brightness: Adjust the LCD display brightness Sleep : we can set the time of screen timeout ,as 15 seconds,30 seconds and so on. 11.3 Call settings In the state ,you can enter check your SIM card function,you can setting voice mail , Fixed dialing numbers,Call forwarding ,Call barring settings, Additional settings.
  • Page 33 barring password. This function requests network’s support. Please contact your operator for details. Additional settings: You can set Caller ID and call waiting function. Also you can choose [General Settings], Setting ID dial list,Call recording ,Fade-in ringer and SpeedDial. IP dial list:Add IP Phone number，Then select the IP dialing from the left-click menu of the dialing interface.
  • Page 34 11.5 Wi-fi In standby state, enter [Menu][Setting] [Wi-Fi]menu, you can do some operations as follow: Off: close the Wifi function. Connect to network: Connect to the select network. Scan: Scan the available WLAN network, and update the network list. 11.6 Bluetooth In standby state, enter [Menu][Setting] [Bluetooth] menu, you can turn on bluetooth device,and also you turn off bluetooth and search for new device to connect.
  • Page 35 Set time zone, time/date, date format and time format 11.10 Language: Set the phone language. 11.11 Schedule on/off Set schedule power on or power off. 11.12 Storage device storage in internal storage or in SD card. 11.13 Memory Cleanup Cleaning up system garbage,Release memory space. 11.14 Reset Restore the phone setting to factory data status.
  • Page 36 cable, the computer can be connected to the Internet via the mobile network of the mobile phone. We can select Internet protocol version IPV4 or IPV6. 2)Portable Wi-Fi hotspot: Set the phone as Hotspot. [Menu][Settings] -[More]portable Wi-fi HotspotSelectSet up wifi hotspotoption NetworkSSID&...
  • Page 37 14 . RJ45 port You can use the RJ45 port connect the computer to the Internet If any problems are encountered while using the phone, please refer to the FAQ’s below. If the problems still exists, please contact the manufacturer or service provider.
  • Page 38 “Not in service area. Network failure.” is displayed Check signal intensity indicator. If there is no signal, you may be in the basement or network blind area in a building. Please move to another location to receive signal. If in your situation you are not covered by a network, please contact your operator for details.
  • Page 39 Phone fails to boot Check battery volume or charge the battery. The battery is probably uncharged. Please charge your phone until the battery is restored, then try to power it on again. Cannot send short message Please check the SMSC address if the correct number has been set.
  • Page 40 The service is not available or the location network does not support this service. Please contact your operator for details. Producer and Distributor MAXCOM S.A. ul. Towarowa 23a 43-100 Tychy, POLAND tel. +48 32 327 70 89 www.maxcom.pl office@maxcom,pl...
