Maxcom MM28D HS
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM28D HS and is the answer not in the manual?

Questions and answers

Related Manuals for Maxcom MM28D HS

Summary of Contents for Maxcom MM28D HS

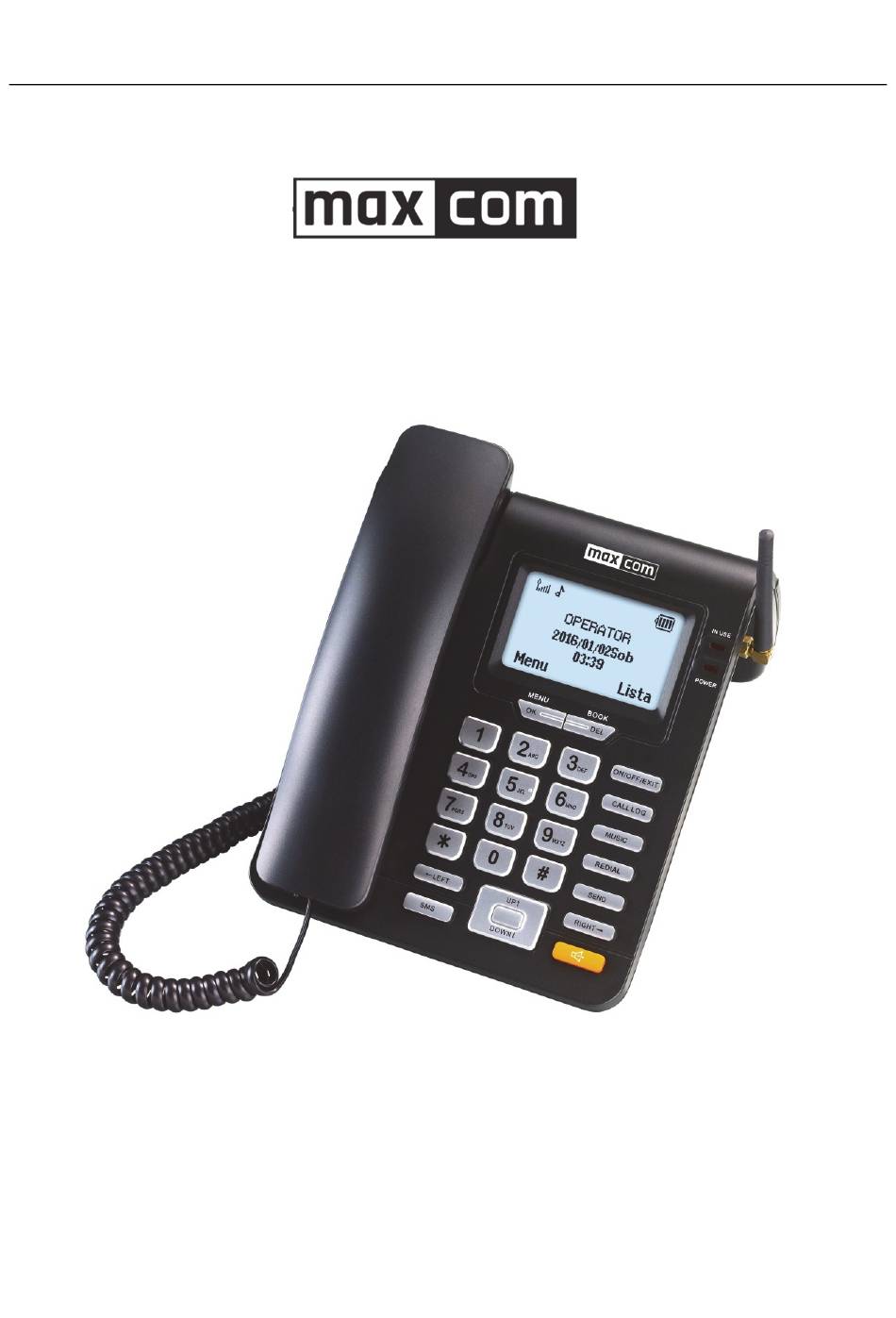

  • Page 1 Maxcom MM28D HS USER MANUAL...

  • Page 2: Safety Instruction

    SA FETY INSTRUCTION To use the phone properly, please read this user manual carefully and pay attention on the following precaution before use:  Please charge the spare battery for at least 16 hours before the first use.  Not to use the phone when driving. ...
  • Page 3 FEATURES  Support SIM card read and write  Fixed antenna, External antenna (optional) compatible  LCD displays the number in two rows available  Call log for 50 groups of received calls, dialed calls and missed calls  15 levels of LCD contrast for selection ...
  • Page 4 LOCATION DISCRIPTION...

  • Page 5: Installation And Connection

    TECHNOLOGY PARAMETER  Environment Temperature: -10℃～+45℃  Relative Humidity: 10％～95％  Atmospheric Pressure: 86～106Kpa  Working Frequency: E-GSM 900/1800 or 850/1900 (option)  Working Power: AC220V, 50Hz, DC 5V 1000mA  Backup Battery: Rechargeable battery Ni-MH AAA 3.6V600mAh  Standby Time: around 5 days ...
  • Page 6 Handset Connection Connect the handset and the base of the phone with a coil cord. Turn on or Turn off the Phone Turn On: Move the power switch to the “ON” place and the screen will be light. The phone begins to search the network and it can provide the services after getting into idle state.

  • Page 7: Basic Operation

    right; In the calculator state, it represents÷. When adjusting the volume, press this key can increase the volume. It also can be used for LCD contrast adjustment.  ←LEFT key : During editing the number or name , press this key to move the cursor to left; in the calculator state, it represents ×.

  • Page 8: Menu Operation

    seconds or press SEND key ,the number will be dialed out immediately 3. When finished, return the handset to the base.  From Speakerphone 1. Press 2. When you hear the dial tone, dial the desired number , it will be sent out automatically after 5 seconds or press SEND key ,the number will be dialed out immediately 3.

  • Page 9: Search Entry

    In idle mode, you also can press BOOK key to enter the Contact list interface directly, the operation method refers to “QUICK SEARCH” item. SEARCH ENTRY 1. In on-hook state, press MENU/OK key + 1 key to enter the Phonebook interface, the cursor stops at Quick search.

  • Page 10: Memory Status

    1. In on-hook state, press MENU/OK key + 1 key to enter the Phonebook interface, the cursor stops at Quick search. 2. Press UP↑ or DOWN↓ key to move the cursor to Copy all 3. Press MENU/OK key to confirm and enter the submenu of From SIM, From phone 4.
  • Page 11 Copy all ,Move all , Use number 6. Press UP↑ or DOWN↓ key to select and do operations to the following: 1) Forward: send this message to others. 2) Reply: reply the message to the sender and LCD will show editing window after pressing MENU/OK key , Press MENU/OK key to send the message after editing.

  • Page 12: Use Templates

    choose “Dial” or “Save” to SIM card or phone. DRAFTS 1. In on-hook state, press MENU/OK key + 2 key to enter the Messages interface, the cursor stops at Write message 2. Press UP↑ or DOWN↓ key to move the cursor to Drafts, press MENU/OK key to confirm and enter the submenu with a list of messages failed sent but saved in the draft 3.

  • Page 13: Dialled Calls

    2) Common settings: It includes the Delivery report and Reply path, you can press UP↑ or DOWN↓ key to select one of them and then press MENU/OK key to set it On or Off, press BOOK/DEL key to select Done, when LCD displays Save?, press MENU/OK key(or BOOK/DEL key) to select save it(or not save it).

  • Page 14: Delete Call Logs

    1. In on-hook state, press MENU/OK key + 3 key to enter the Call history interface, the cursor stops at Missed calls 2. Press UP↑ or DOWN↓ key to move the cursor to Received calls, 3. Press MENU/OK key to confirm and enter the submenu with a list of the received calls 4.
  • Page 15 6. Press MENU/OK key to confirm and repeat the above steps for rest option items setting.  Setting language 1. In on-hook state, press MENU/OK key + 4 key to enter the Settings interface, the cursor stops at Phone setup 2.

  • Page 16: Call Setup

    1. In on-hook state, press MENU/OK key + 4 key to enter the Settings interface, the cursor stops at Phone setup 2. Press MENU/OK key to confirm and enter the submenu of Time and date, Language, Input method, Contrast, Greeting text, LCD backlight 3.

  • Page 17: Call Transfer

    This function should be supported by net operator  Call transfer 1. In on-hook state, press MENU/OK key + 4 key to enter the Settings interface, the cursor stops at Phone setup 2. Press UP↑ or DOWN↓ key to move the cursor to Call setup, press MENU/OK key to confirm and enter the submenu of Call waiting ,Call divert, Speed dial, Auto call 3.

  • Page 18: Security Setup

    Note: the first digit of the number must be set from 2 to 9 After set the speed dial function to ON, in off-hook state, press and hold one of the digit keys(2-9), the number set in it will be dialed out directly. ...

  • Page 19: Adjust The Ringing Volume

    SELECT THE RINGING 1. In on-hook state, press MENU/OK key + 5 key to enter the User profiles interface, the cursor stops at Tone setup 2. Press MENU/OK key to confirm and enter the submenu of Incoming call, Alarm, Power on( boot-strap), Power off, Message tone ,Keypad tone 3.

  • Page 20: Alarm Clock Setting

    2. Press UP↑ or DOWN↓ key to move the cursor to Extra tone 3. Press MENU/OK key to confirm and enter the submenu of Warning, Error, Campon and connect. 4. Press UP↑ or DOWN↓ key to select and press MENU/OK key to confirm. Organizer TO DO LIST ADDING (The list of things to do) 1.

  • Page 21: Unit Converter

    Eg. (10+26) ÷2 1. In on-hook state, press MENU/OK key + 6 key to enter the Organizer interface 2. Press UP↑ or DOWN↓ key to select Calculator 3. Press MENU/OK key to enter the calculator mode and LCD displays 0 4.

  • Page 22: Advanced Function

    Eg. 12.6 Mile → ? Km 1. In on-hook state, press MENU/OK key + 6 key to enter the Organizer interface 2. Press UP↑ or DOWN↓ key to select Unit converter 3. Press MENU/OK key to confirm 4. Press UP↑ or DOWN↓ key to select Length 5.
  • Page 23  Enter hold mode During conversation, press MENU key, LCD display Hold, Press MENU key, LCD display H on the LCD, the phone enter hold mode, the another part just can receive busy tone, and you can not receive any tone. ...
  • Page 24  Phonebook Press MENU or OK key, LCD display Swap, press DOWN↓ key until to move the cursor to Phonebook, press MENU key to enter phonebook menu operation.  Messages Press MENU or OK key, LCD display Swap, press DOWN↓ key until to move the cursor to Messages, press MENU or OK key to enter messaging menu operation.
  • Page 25 Bay Area Compliance Laboratories Corp. (BAC), number: 1313 performed intervention in accordance with Annex III (Module B) Directive 2014/53/EU and issued the EU-type examination certificate: Certificate No. B1709271 Signed for and on behalf of: Maxcom S.A. place and date of issue: name, function: Tychy, 28-09-2017...
  • Page 26 Mobile service address: Comtek Network Systems Unit 108, Tenth Avenue (Zone 3) Deeside Industrial Estate Deeside, Flintshire CH5 2UA MAXCOM S.A. 43-100 Tychy, ul Towarowa 23a POLAND tel. +48 32 327 70 89 fax 48 32 327 78 60 www.maxcom.pl...
