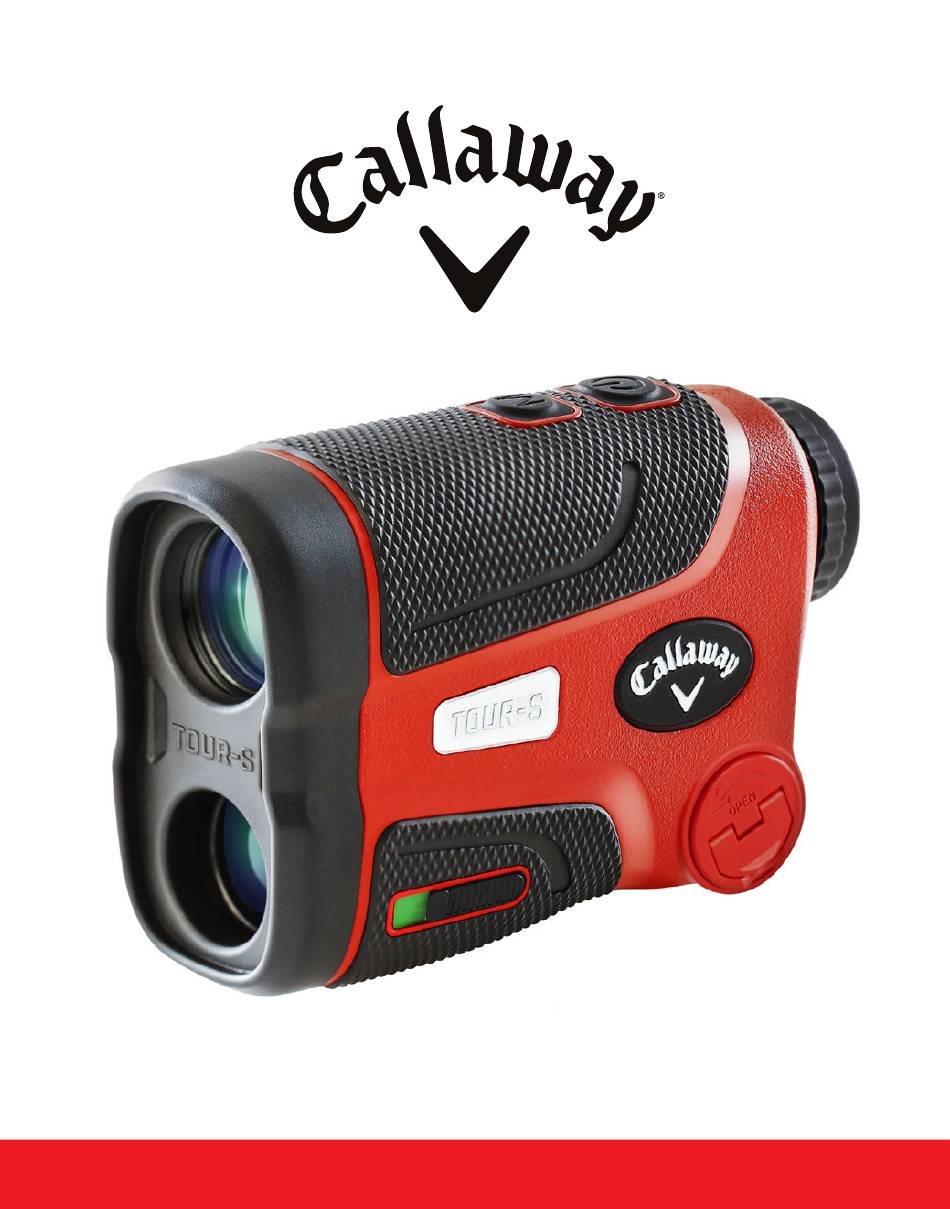

- Page 1 TOUR-S LASER RANGEFINDER...
-
Page 2: Specifications

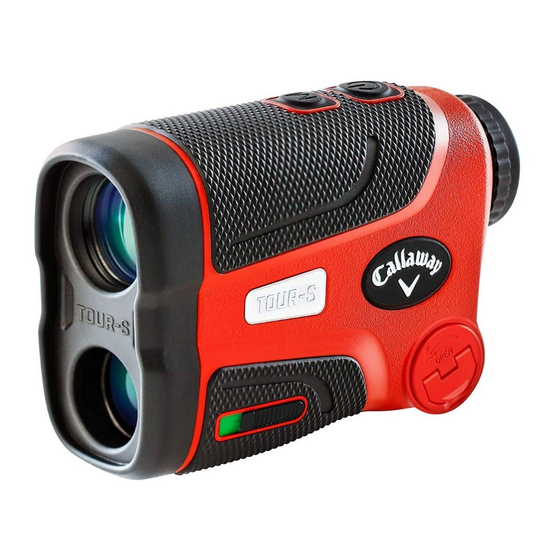

Thank You for choosing the Callaway TOUR-S Laser Rangefinder which utilizes our most advanced laser technology in one device. With P.A.T. (Pin Acquisition Technology), Slope Technology, and Prism Mode, the Tour-S is capable of providing exact distance measurements to virtually any target! SPECIFICATIONS... -
Page 3: Battery Installation
INCLUDES CR2 - 3-Volt Lithium Battery Carry Case Cleaning Cloth BATTERY INSTALLATION Lift hatch tab. Turn counterclockwise to open. Remove protective plastic battery cover. Replace battery cap & tighten by turning clockwise. NOTE: If the Low Battery Icon is present on display, there are approximately 200 ranges left until the battery is completely drained. -
Page 4: Internal Display
RANGEFINDER DIAGRAM Eye Piece Diopter Adjustment Power Button Mode Button Slope Switch Battery Door INTERNAL DISPLAY Zero-In Aiming Square Laser Indicator Box P.A.T. Mode Indicator Prism Mode Indicator Distance Unit of Measure Slope Adjusted Distance Low Battery HOW TO USE... - Page 5 HOW TO USE While looking through the Eye Piece, PRESS and RELEASE the Power Button. The rangefinder is now powered on. To focus/increase clarity, use the Diopter Adjustment by turning the Eye Piece. Continue looking through the Eye Piece, aim the Zero-In Aiming Square at your intended target &...
-
Page 6: Measurement Modes
MEASUREMENT MODES • To change the measurement mode on the Tour-S, first PRESS the Power Button once to power the laser on. Next, PRESS the Mode Button to cycle between the different modes. There are 3 different laser firing modes on the Tour-S: Standard Mode: No Icon will appear on the left side of the display . - Page 7 NOTE: While scanning in P.A.T. Mode, the measurement will only change when a shorter distance is measured. This is useful when measuring the distance to a flagstick when there are trees or other objects in the background. Prism Mode: A Flag Icon with a Square Border will appear on the left side when enabled .
- Page 8 & display the slope adjusted distance in the bottom right of the display (Fig. C) The Slope switch on the Side of the Tour-S has two positions: 1. RED is showing: Slope function is off. The Laser is tournament legal when the slope is turned off.
-
Page 9: Oled Display
DISABLING DECIMAL MEASUREMENT Your Tour-S laser is preset to display yardage readings to the nearest tenth (1/10) of a yard. The user can remove the extra digit if desired. • Disabling Decimal Measurement: • Power the unit on by PRESSING the Power Button once •... -
Page 10: Operational Notes
OPERATIONAL NOTES The maximum measurement range is 5-1200 yards to objects and 5-400 yards to a flagstick with +/- .5 yard accuracy. NOTE: Maximum range can depend on several factors, including target characteristics and environmental conditions. For instance, longer maximum distances may be obtained to targets that are large in size, brightly colored, or have a reflective finish. -
Page 11: Troubleshooting
TROUBLESHOOTING Rangefinder is consistently providing inaccurate measurements. • Make sure the device is set to the desired unit of measure (Yards or Meters). • Weak battery signal can affect the accuracy of the device. If the Low Battery Indicator is present on the display, replace the battery. -
Page 12: Warranty Policy
TROUBLESHOOTING (CONTINUED) When should P.A.T. Mode be used? • When measuring the distance to smaller targets such as a flagstick. • When scanning the landscape to measure distances to a smaller target such as a flagstick and there are trees or other objects in the background. - Page 13 DO NOT store the laser rangefinder in extreme cold/hot temperatures (<50°F - >110°F). © 2018 CALLAWAY GOLF COMPANY. Callaway Golf and the Chevron device are trademarks of Callaway Golf Company. IZZO Golf is an official licensee of Callaway Golf Company. WARNING...
- Page 14 © 2018 CALLAWAY GOLF COMPANY. Callaway Golf and the Chevron device are trademarks of Callaway Golf Company. IZZO Golf is an official licensee of Callaway Golf Company.
Need help?
Do you have a question about the TOUR-S and is the answer not in the manual?
Questions and answers
Lights up but will not give me a distance
If your Callaway TOUR-S lights up but does not provide a distance, possible issues could include:
1. The laser is not aimed correctly—ensure the Zero-In Aiming Square is on the target.
2. The target is beyond the maximum range (1200 yards for objects, 400 yards for a flagstick).
3. The battery may be low—check if the Low Battery Icon is flashing; replace the battery if needed.
4. Environmental conditions (like poor lighting or weather) may affect measurement.
Check these factors to troubleshoot.
