Venitem Mini Doge F24 User Manual

Supplementary indoor fire siren

Hide thumbs Also See for Mini Doge F24:

Features:

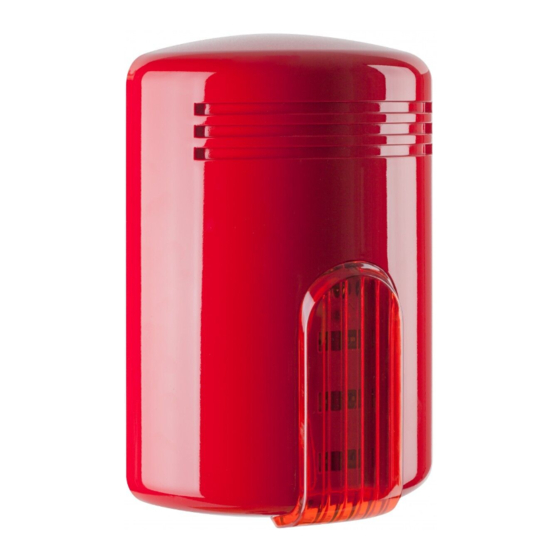

Mini Doge F24 siren has been conceived for acoustic signaling of fires.

All materials utilized to produce it comply to fire system requirements and the housing is built with

fireproof materials.

The siren has to be installed by qualified personnel only, respecting all installation norms and adequate

distances and highness to get the best optical and acoustic performances.

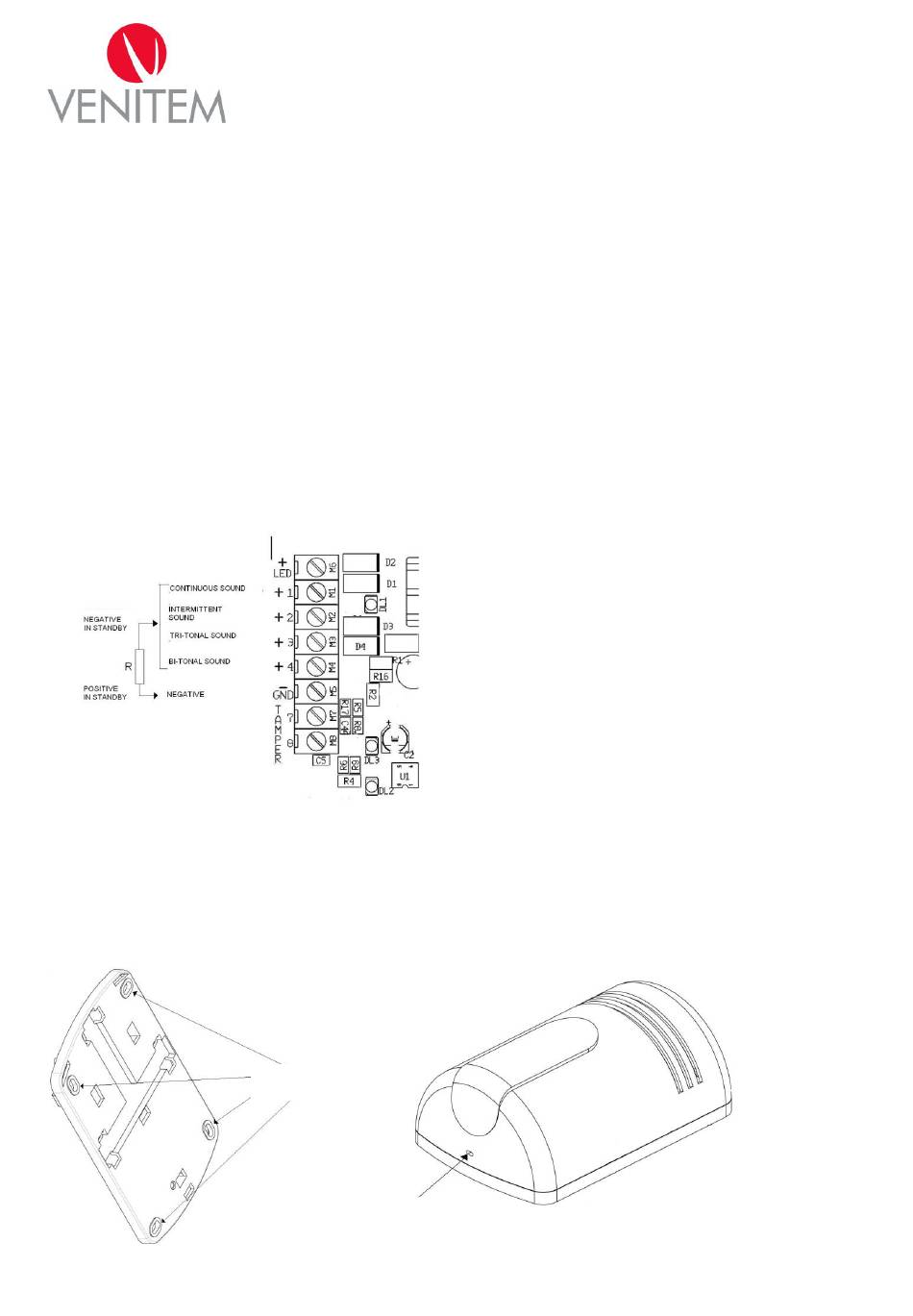

Connect the main output with "polarity inversion" to one of the positive terminals (the siren will

perform a particular sound according to the terminal connected) and to negative terminal (see pic 1).

Connect the end of line R resistor between GND and terminal 1 or 2 or 3 or 4. The value of this

resistor is indicated in the installation manual of the main.

To open the siren insert a screwdriver in the hole indicated by the narrow (see pic.3).

Fix the Mini Doge on the wall through the 4 fixing holes on the siren base (see pic.2).

Use an adapter to connect all cables in case of a system with external tubes.

MA-SI-F240-01-04 Manual Mini doge F24 eng rev4

INDOOR FIRE SIREN

SUPPLEMENTARY INDOOR SIREN

MINI DOGE F24

Pic.2

FINING

HOLES

Pic.1

Pic.3

Rev.4 Page 1 of 2

Table of Contents

Do you have a question about the Mini Doge F24 and is the answer not in the manual?

Page 1 SUPPLEMENTARY INDOOR SIREN MINI DOGE F24 Features: Mini Doge F24 siren has been conceived for acoustic signaling of fires. All materials utilized to produce it comply to fire system requirements and the housing is built with fireproof materials. The siren has to be installed by qualified personnel only, respecting all installation norms and adequate distances and highness to get the best optical and acoustic performances.
Page 2 Note: if one or more of the above topics are not respected, approval will be not valid anymore. Warranty: All Venitem products have 2 year of guarantee. With the aim of improving design and quality of its products, Venitem reserves the right of modify them without any notice. All defective products have to be returned to your own supplier.
