Venitem VP/EN54-23 Installation And User Manual

General features:

VP/EN54-23 is a panel designed for acoustic and optical indication of fires.
All materials used to manufacture it comply to fire system requirements and the housing is built in fireproof material.
The alarm device has to be installed by qualified personnel only, respecting all installation standards such as
recommended distances and height in order to get the maximum efficiency.

Technical features:

Coverage volume: .............................. 4 x 9 x 9 m (Height, Width, Distance)
Category .............................................. W-4-9, Wall mounted device
Nominal Voltage supply (Vn): ............. 24Vdc (from 20Vdc to 30Vdc)
Power consumption ........................... 2,6W (DIP1=OFF 100mA DIP1=ON 110mA)
Sound pattern ..................................... Alternate (or continuous not compliant to EN54-3)
Flash frequency ................................... 0,6Hz or 1,1Hz
Buzzer frequency ................................ 3000 Hz
Operating temperature ...................... From -10 °C to +55°C
Type: .................................................. A, for indoor use
IP ........................................................ 41C
Standards ......................................... EN54-3, EN54-23
Protected against polarity inversion

Sound power distribution

Bottom
165°
135°
105°

INSTALLATION

Mounting to wall

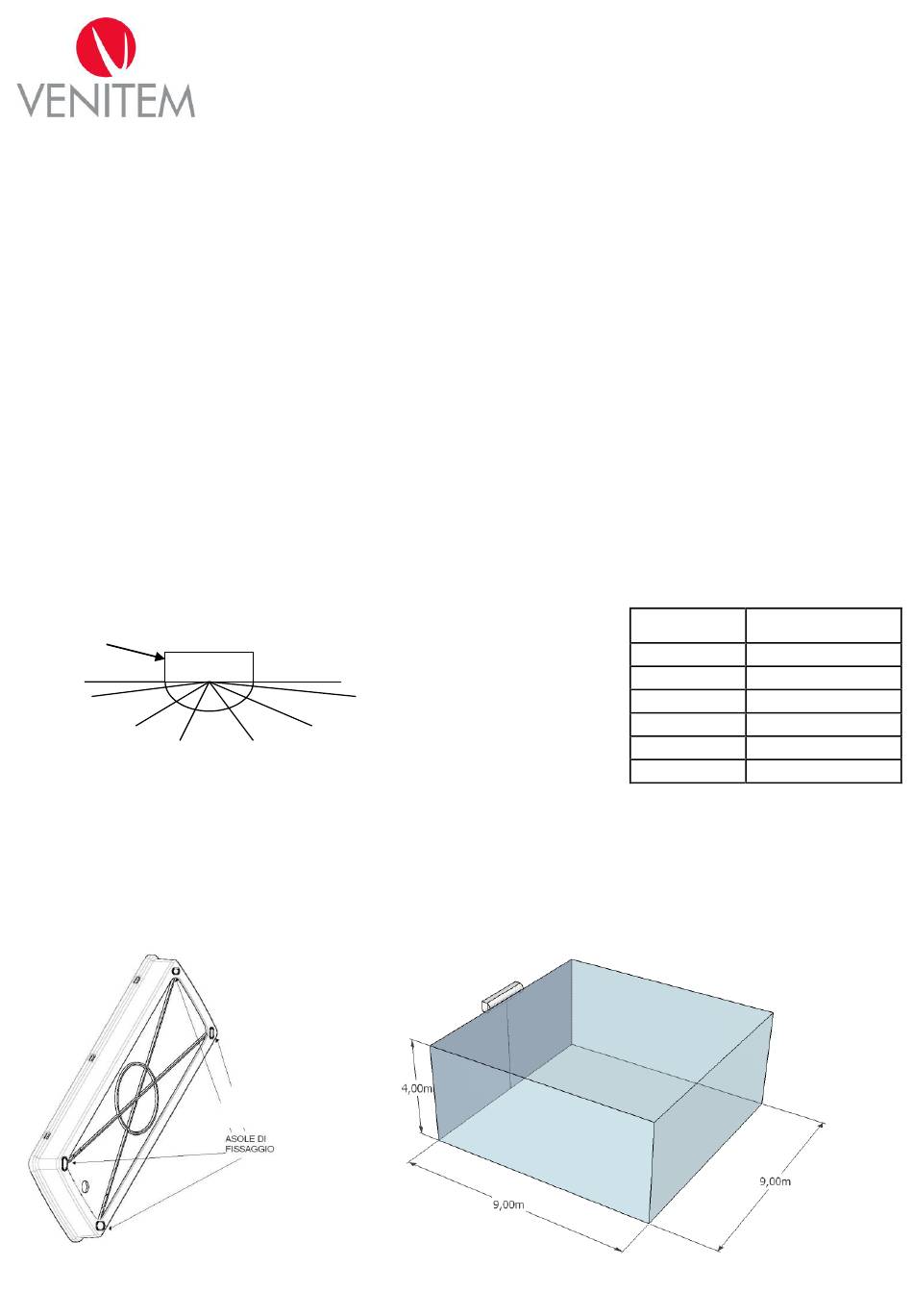

Fix the alarm device to the wall using the 4 holes on its base (see Pict.1). Use an adapter to connect all cables in case of
system with external pipes.
The device is classified as W-4-9. It is designed to cover the maximum volume for 9 m. side and 4 m. height, see pict. 2.
The device must be installed with the long side parallel to the floor and the flash-dome looking down.
Pict. 1
MA-PA-V523-01-03 Manual VP_EN54-23 eng rev 3
Installation and User Manual
Fire alarm devices - Optical and acoustic alarm device
0°
15°
45°
75°
MAX
Fixing
Holes
VP/EN54-23
Chart 1
MAX
Degree Sound Level at 1 m
15° 88 dB(A)
45° 87 dB(A)
75° 90 dB(A)
105° 82 dB(A)
135° 87 dB(A)
165° 87 dB(A)
MAX
Pict.2
Rev.3 Page 1 of 2
