MANUALE TECNICO TECHNICAL MANUAL ONDA VF...
Page 2
MANUALE TECNICO / TECHNICAL MANUAL AVVERTENZE E DATI TOSSICITÀ FUMOGENO ATTENZIONE: NEL CASO IN CUI SI FOSSE AZIONATO IL FUMOGENO E’ FATTO OBBLIGO DI ARIEGGIARE IL LOCALE PRIMA DI SOGGIORNARVI. In questa sezione vengono riportati i valori riscontrati dalle analisi confrontati con i limiti di legge riguardo alla tossicità dei composti presi in considerazione per esposizioni a breve periodo.

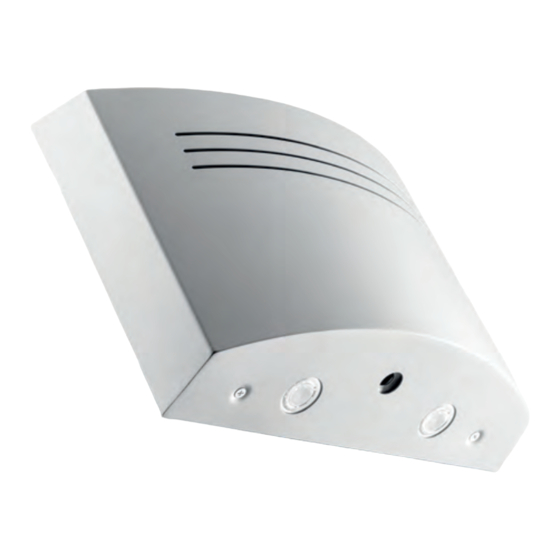

DESCRIZIONE Onda VF è la prima lampada a LED concepita per funzionare come sistema di protezione antifurto. E’ dotata di un’innovativa capsula fumogena certificata, in grado di saturare un ambiente di 100 metri cubi in pochi secondi. La scarica di fumo crea una vera e propria barriera visiva consentendo, più...
MANUALE TECNICO / TECHNICAL MANUAL INSTALLAZIONE La lampada ONDA VF va installata tra 1,80 mt e 3 mt 20 cm circa di altezza, mantenendo una distanza minima di 50 cm 50 cm 20cm da soffitti e 50cm da pareti, o comunque il più...
FUNZIONAMENTO Onda VF è una lampada da interno a LED, dotata di un ingresso dedicato che consente di comandare i LED con un semplice interruttore o pulsante. L’utilizzo di quest’ultimo consente la dimmerazione della lampada potendo così scegliere l’intensità luminosa più adatta.
Page 6
L’uscita open collector in funzionamento normale è a 0V. Al generarsi di un’anomalia l’uscita open collector diventa libera. In questo modo è possibile interfacciare l’ONDA VF direttamente con altri dispositivi come centrali d’allarme collegando l’open collector direttamente ad una linea di allarme programmata come normalmente chiusa.
Page 7
GARANZIA Tutti i prodotti Venitem sono garantiti 2 anni contro i difetti di fabbricazione o di materiale. Nell’intento di migliorare il design e la qualità dei propri prodotti la ditta Venitem si riserva di modificare il prodotto senza alcun preavviso. Tutti i prodotti guasti o difettosi vanno resi al proprio fornitore.
Page 8
MANUALE TECNICO / TECHNICAL MANUAL WARNINGS AND TOXICITY INFORMATION OF THE SMOKE SYSTEM ATTENTION: AFTER EACH ACTIVATION OF THE SMOKE SYSTEM, IT IS IMPERATIVE TO AIR THE ROOM BEFORE STAYING IN IT. This section shows the values emerged from the analysis carried out. Such values have been compared to the limits set by law with reference to the toxicity of the compounds during short-term exposure.
PRODUCT DESCRIPTION ONDA VF is the first LED lamp conceived to function as anti-intrusion protection system. It is equipped with an innovative certified smoke capsule able to saturate a 100 m environment in a few seconds. The smoke discharge creates a real optical barrier, allowing to stop any robbery or intrusion attempt better than any other security device.
The terminal block is equipped with a T630mA fuse. THE PRODUCT TURNS ON ONLY IF SUPPLIED BY 220V. IF ONDA VF IS OFF AND IS ONLY CONNECTED TO THE BATTERY, THE PRODUCT WILL NOT FUNCTION.
Page 11
FUNCTIONING ONDA VF is an indoor LED lamp equipped with 1 dedicated input able to control the LEDs with a simple switch or button. The use of the button enables dimming of the lamp with the possibility to choose the most suitable brightness level. This value will be stored in memory until the next use of the lamp.
During normal operation, the open collector output voltage is 0V. In the event of an anomaly, the open collector output becomes free. In this way it is possible to interface ONDA VF with other devices such as alarm control panels by just connecting the open collector to an alarm input set as normally closed.
Page 13
WARRANTY All Venitem products have 2 years warranty against manufacturing or material faults. With the aim of improving design and quality of its products, Venitem reserves the right to modify them without prior notice. All defective products have to be returned to your supplier.
