Summary of Contents for Venitem SP200 L
Page 1
SP200 L MANUALE TECNICO TECHNICAL MANUAL...
Page 3
MANUALE TECNICO DESCRIZIONE La sirena da interno SP200 L è concepita per la segnalazione di allarme sia in modo visivo che acustico. Dispone di due ingressi per attivare cinque suoni diversi settabili tramite dip switch, di un trimmer per la regolazione del volume e di un dip switch che permette la regolazione dell’intensità...
Page 4
Fig.3 LED LD4 per segnalazione DIP 2 Selezione suono stato impianto Alimentazione: negativo Ingresso 1 +13,8 Vcc Ingresso 2 +13,8 Vcc Tamper N.C. Ingresso +13,8 Vcc per led DL4 Trimmer P1 DIP 1 Attenuazione suono Regolazione volume suono ingresso 2 ATTENZIONE: a seconda della regolazione del volume del suono cambia l’assorbimento della scheda.
Tutti i prodotti Venitem sono garantiti contro i difetti di fabbricazione o di materiale. Nell’intento di migliorare il design e la qualità dei propri prodotti la ditta Venitem si riserva di modificare il prodotto senza alcun preavviso. Tutti i prodotti guasti o difettosi vanno resi al proprio fornitore.
Page 7

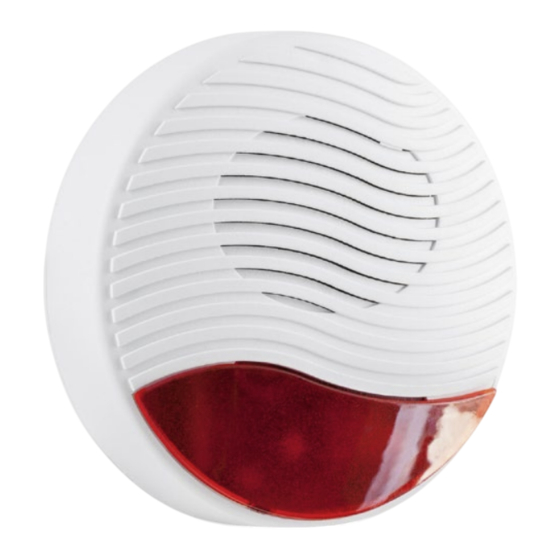

TECHNICAL MANUAL DESCRIPTION SP200 L indoor sounder is a device conceived for both acoustic and visual notice in alarm installations. Technical features: two inputs to activate five different sounds, trimmer for sound softening control, dipswitch enabling sound pressure adjustment for input S2, high-intensity independent LED flashing unit for optical signalizations.
Page 8
Pict 3 LD4 LED for system DIP 2 status signalisation Sound selection Power supply: Negative Input 1 +13.8 Vdc Input 2 +13.8 Vdc N.C. tamper Input +13.8 Vdc for DL4 led Trimmer P1 DIP 1 Input 2 sound Sound adjustment softening ATTENTION: board consumption varies according to volume adjustment.
MADE IN ITALY WARRANTY All Venitem products are covered against factory and material defects. With the aim of improving design and quality of its products, Venitem reserves the right to modify them without prior notice. All defective products have to be returned to the supplier.
Page 10
AZIENDA CERTIFICATA Sede legale e operativa / Headquarters: Via del Lavoro, 10 30030 Salzano (VE) - Italy Tel. +39.041.5740374 - Fax +39.041.5740388 www.venitem.com info@venitem.com -...
