Dream On Me Inc.
1532 S Washington Ave
Piscataway Township
NJ 08854
TEL: 732-752-7220
Customer Care: +1 (732) 366-1788

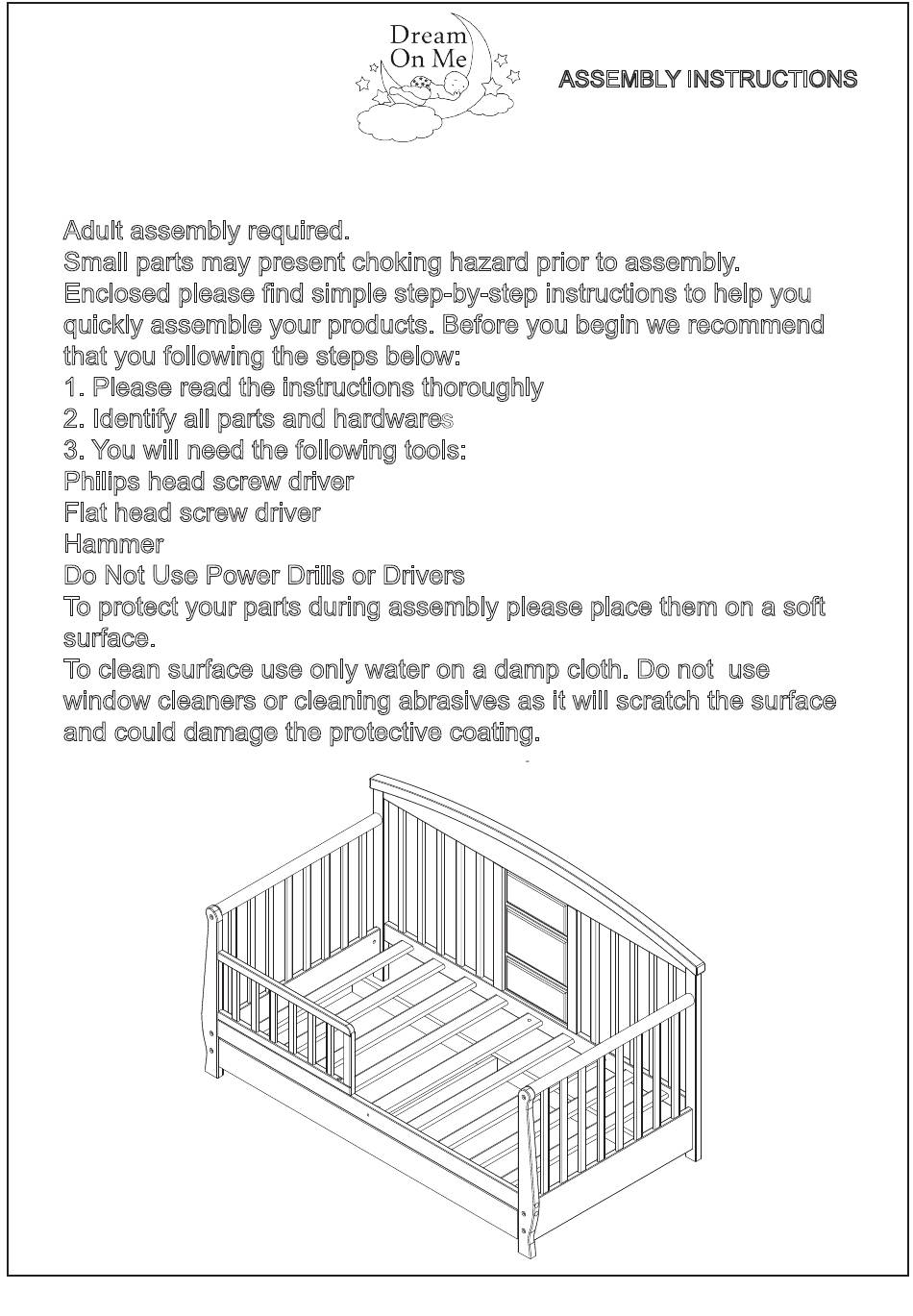

Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardware.
3. You will need the following tools:
Philips head screw driver
Flat head screw driver
Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a soft
surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.
ASSEMBLY INSTRUCTIONS
ITEM NO: 653
s
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 653 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dream On Me 653

  • Page 1 Dream On Me Inc. 1532 S Washington Ave ASSEMBLY INSTRUCTIONS Piscataway Township NJ 08854 ITEM NO: 653 TEL: 732-752-7220 Customer Care: +1 (732) 366-1788 Adult assembly required. Small parts may present choking hazard prior to assembly. Enclosed please find simple step-by-step instructions to help you quickly assemble your products.
  • Page 2 THE SCREWS AND NUTS REMAIN TIGHT. · NEVER USE THIS PRODUCT IF THERE ARE ANY LOOSE, MISSING FASTENERS, LOOSE JOINTS,BROKEN PARTS, OR TORN MESH/FABRIC.CONTACT DREAM ON ME 1532 S WASHINGTON AVE PISCATAWAY TOWNSHIP, NJ 08854 732-752-7220 REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED.
  • Page 3: Component Parts

    COMPONENT PARTS (A) Headboard (1pc) (C) Back Rail (1pc) (B) Footboard (1pc) (D)Left Leg (1pc) (F) Bed Rail (1pc) (G) Side Bar (1pc) (E) Right Leg(1pc) (H) Cross Middle Bar (1pc) (I) Drawer Bottom panel (K) Drawer Front Panel (1pc) (2pcs) (J) Cross Bar (8pcs) (N) Drawer Middle Panel...
  • Page 4 HARDWARE AND TOOL DIAGRAM (c) Barrel nut (19pcs) (b) Bolt 2-1/5’ (14pcs) (a) Bolt 3’ (5pcs) (f) Wood Dowel (6pcs) (d) Allen Wrench (1pc) (e) Bolt 1-3/5’ (2pcs) (g) Cam Bolt (12pcs) (h) Cams (12pcs) (i) Wood Screw (1pc) PHILLIPS-HEAD SCREWDRIVER REQUIRED FOR ASSEMBLY ---- NOT INCLUDE STEP 1 Connect the side bar (G) to the left leg...
  • Page 5 STEP 2 Connect the headboard (A) and the footboard (B) to the back rail (C) using barrel nuts (c) , bolts (b) and wood dowels (f) . STEP 3 Connect Cross middle bar (H) to the back rail (C) using barrel nut (c) and bolt (b). Attach cross bar (J) to the back rail (C).
  • Page 6 STEP 4 Connect Cross middle bar (H) to the side bar (G) using barrel nut (c) and bolt (b). Attach cross bar (J) to the side rail (G). Please note: cross bar end should fit into hole. Then connect the headboard (A) to the left leg (D) and connect the footboard (B) to the right leg (E) using barrel nuts (c) bolts(b) and wood dowels (f) .
  • Page 7 STEP 6 Attach both Drawer Right Side (L2) and Drawer Left Side (L1) to the Drawer Back Panel (M) by inserting 4pcs Cam Bolts (g) to the end holes of the Drawer Side Panel (L1&L2) as shown . Make sure the grooves line up and face inside.Insert 4pcs Cams (h) into the holes of Drawer Back Panel (M) .
  • Page 8 STEP 8 Slide Drawer Bottom Panels (I) painted side up , into grooves of Drawer Side Panel (L1&L2) , the Bottom Support Bar (O) and the Middle Panel (N) as shown . STEP 9 Attach Drawer Front Panel (K) by inserting Cam Bolts (g) into their corresponding Cam Bolts holes on ends of Drawer Side Panel (L1&L2),...

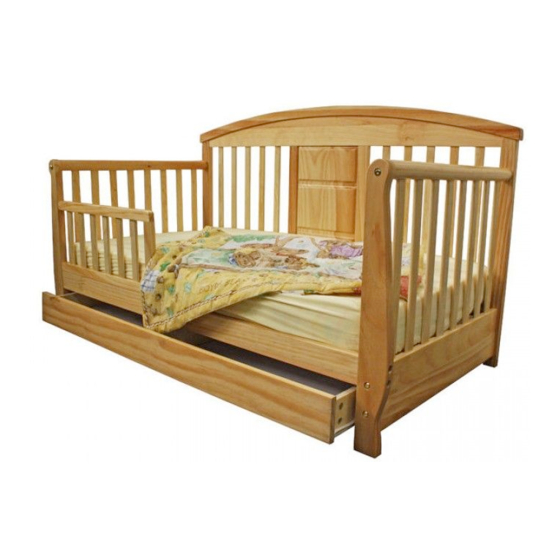

  • Page 9 STEP 10 Line up the drawer with the wheels and mental tracks on each side . With the front slightly elevated , slide into the track on the end , lowering the front as it rolls into place under the toddler bed . STEP 11 Congratulations , your toddler bed with drawer is ready to use .
