Dream On Me Inc.
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
OFFICE: 732-752-7220
CUSTOMER SERVICE: 732-366-1788

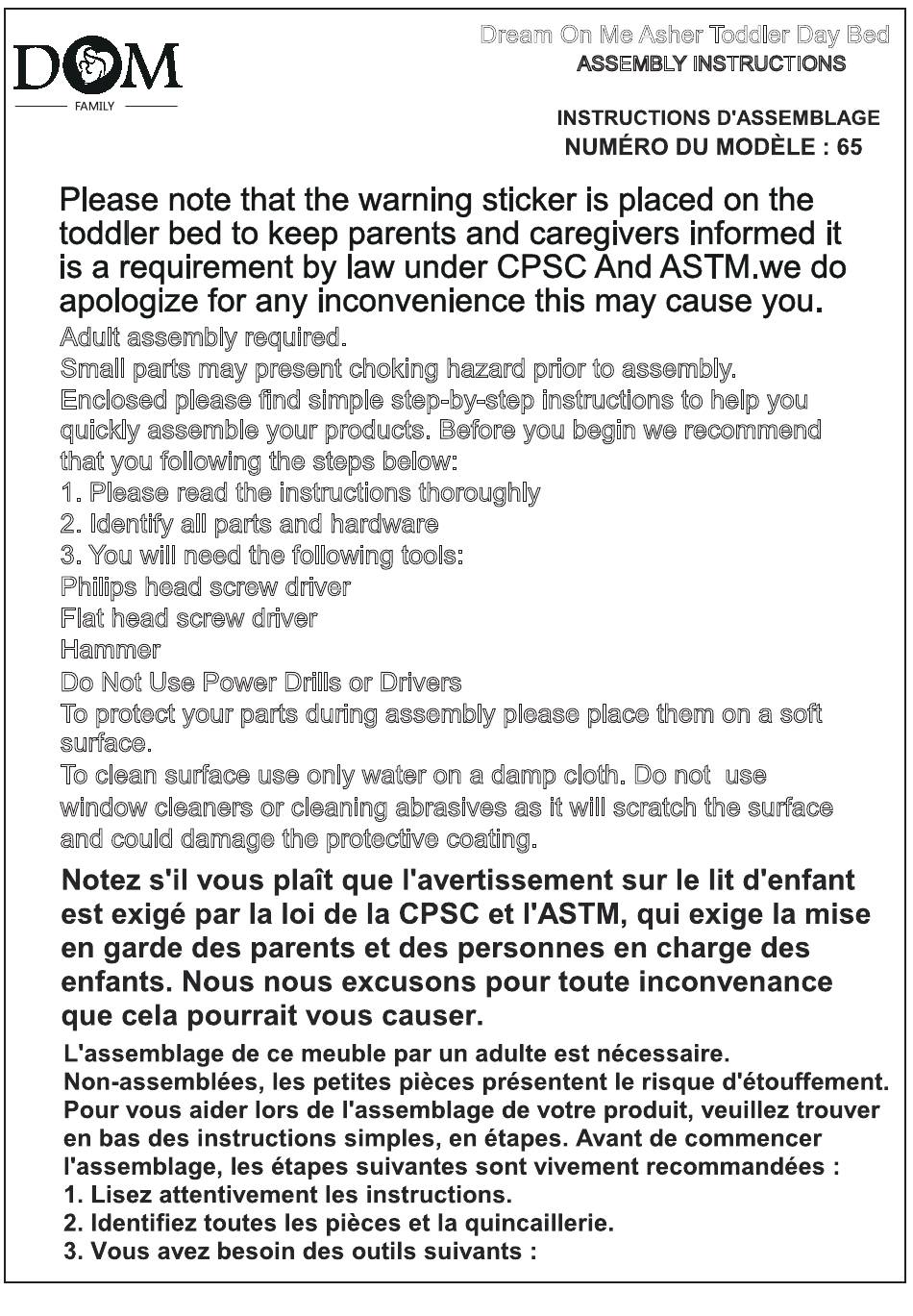

Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardwares.
3. You will need the following tools:
Philips head screw driver
Flat head screw driver
Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a soft
surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.

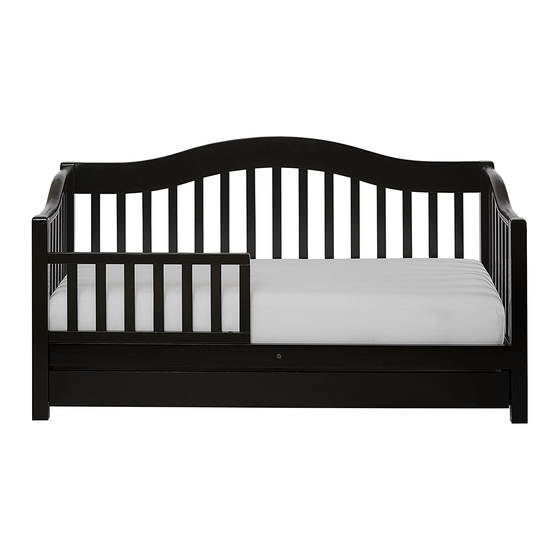

Dream On Me Asher Toddler Day Bed
ASSEMBLY INSTRUCTIONS
1
ITEM NO:650
0
Advertisement
Related Manuals for Dream On Me Asher Toddler Day Bed
Summary of Contents for Dream On Me Asher Toddler Day Bed
- Page 1 Dream On Me Asher Toddler Day Bed Dream On Me Inc. ASSEMBLY INSTRUCTIONS 1532 S WASHINGTON AVE ITEM NO:650 PISCATAWAY TWP NJ 08854 OFFICE: 732-752-7220 CUSTOMER SERVICE: 732-366-1788 Adult assembly required. Small parts may present choking hazard prior to assembly.
- Page 3 THE SCREWS AND NUTS REMAIN TIGHT. · NEVER USE THIS PRODUCT IF THERE ARE ANY LOOSE, MISSING FASTENERS, LOOSE JOINTS,BROKEN PARTS, OR TORN MESH/FABRIC.CONTACT DREAM ON ME 1532 S WASHINGTON AVE PISCATAWAY TWP NJ 08854 732-366-1788 FOR REPLACEMENT PARTSAND INSTRUCTIONAL LITERATURE IF NEEDED.
- Page 4 1532 S WASHINGTON AVE PISCATAWAY TWP NJ 08854 732-366-1788.
-
Page 5: Component Parts
COMPONENT PARTS (A) Headboard (1pc) (C) Back Rail (1pc) (B) Footboard (1pc) (F) Cross Middle Bar (1pc) (D) Bed Rail (1pc) (E) Side Bar (1pc) (G) Cross Bar (8pcs) - Page 6 HARDWARE AND TOOL DIAGRAM (b) Bolt 2-1/5’ (3pcs) (c) Barrel nut (11pcs) (d) Allen Wrench (1pc) (a) Bolt 3-2/5’ (9 pcs) (11 pcs) (9 pcs) (e) Bolt 1-3/5’ (1pc) PHILLIPS--HEAD SCREWDRIVER REQUIRED FOR ASSEMBLY ----NOT INCLUDE Do Not Use Power Drills or Drivers STEP 1 Connect Cross middle bar (F) to the bac k rail (C) using barrel nut (c) and bolt (b).
- Page 7 STEP 2 Connect the Side bar (E) to the Cross middle bar (F) using barrel nut (c) and bolt (b). Make sure cross bar (G) are connected to the hole on the side bar (E) and the hole on the side bar (E) are facing up.
- Page 8 STEP 4 Repeat step 3 for the Footboard (B) as shown . STEP 5 Connect the bed rail(D) to the headboard (A) using the barrel nut (c) and the bolt(a) and bolt (b). Then connect the bed rail(D) to the side bar(E) using bolt(e) as shown.
- Page 9 Congratulations , your toddler bed with drawer is ready to use .
-
Page 10: Limited Warranty
LIMITED WARRANTY workmanship and agrees to remedy any such defect. This is solely limited to the repair or replacement of defective furniture components and no assembly labor is included. assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
