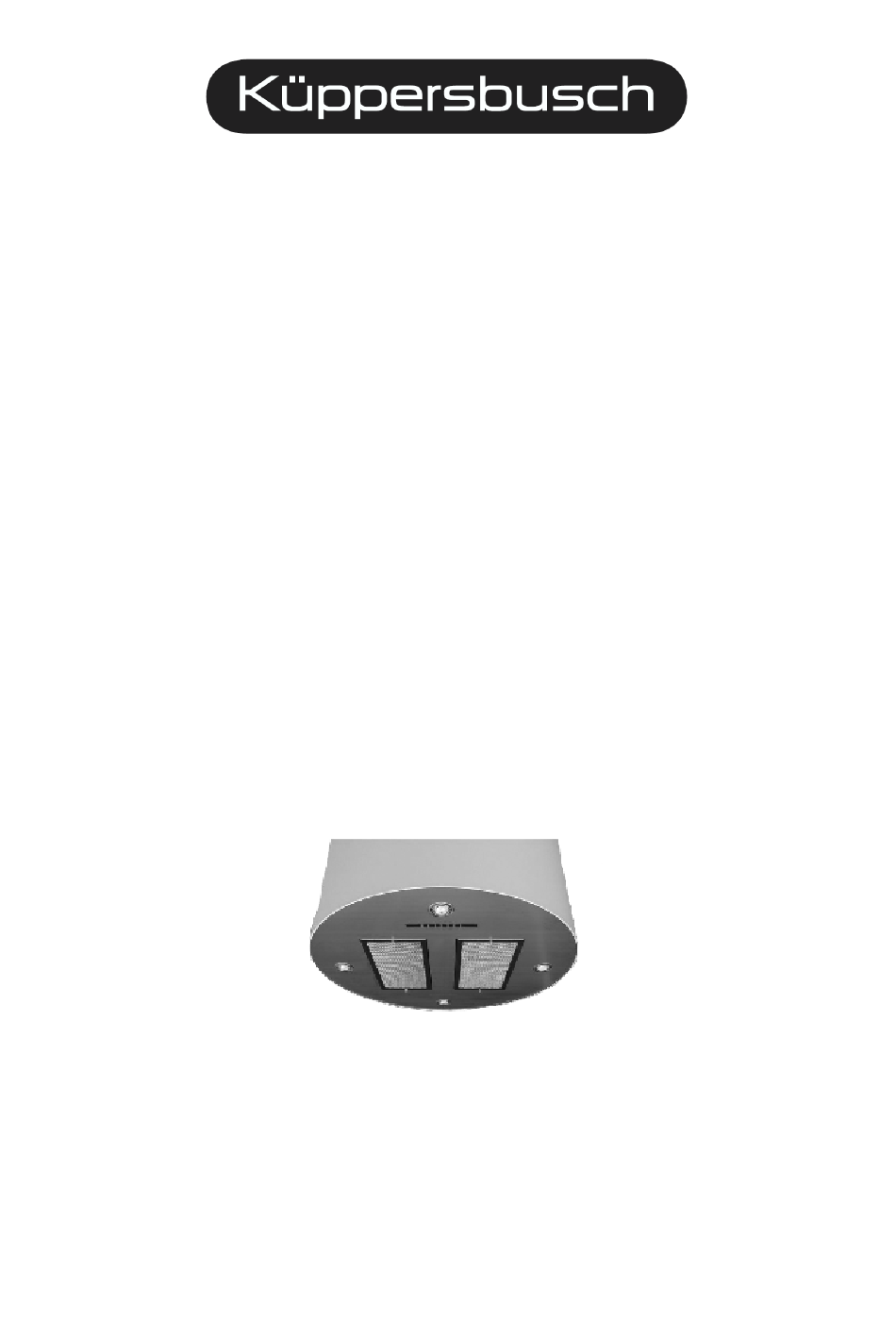

- Page 1 Installation and instruction manual IKDU 9900.0PW...
- Page 2 Important notes Miscellaneous This installation instruction contains important information, read it carefully and follow any instructions. This will prevent failure caused by wrong use and/or installation. Keep this manual for possible later use. Follow the instructions from the manufacturer of the cooking equipment for the installation of hoods.
- Page 3 Mounting above a stove Furnace for solid fuels In a solid fuel stove which can fire out (sparks) is the fitting of the hood only allowed when the furnace is closed and its shielding is not removable. Gas stove The minimum distance between the gas stove and the cooker hood is 750mm. If the manufacturer of the stove is recommending a lager distance please follow this advise.
- Page 4 Grease filter Reset of grease filter saturation indicator After cleaning the grease filter press button 7 for 5 seconds to reset the electronic. Removal of grease filter Dismount the grease filter by pulling it down by its two knobs and remove the safety cable.
- Page 5 Charcoal filter Replacement of charcoal filter As the charcoal filter is cleaning the exhaust air from grease and odours we recommend to replace this filter every 3 to 6 months (depending on use of cooker hood). The charcoal filter is placed under the motor. When replacing the filter please press in the two fixing points (1) and pull out the filter.
- Page 6 Lighting Bulb replacement Faulty lamps should be replaced. Before changing the bulb disconnect the hood from main power (pull the plug). Lamps remain hot for a while, let them cool down before touching them. - Disconnect main power. - Remove the metal ring with a small screwdriver. (see photo 1) Attention! Don not drop the glass cover.
- Page 7 Trouble-shooting Check the following points before contacting the service department.
- Page 8 Installation instruction...
- Page 9 Installation of the Küppersbusch cooker hood IKDU 9900.OPW 1. Determine the centre of the hood over the stove. Use a plumb to mark the centre of the unit on the ceiling. 2. Mark the drilling holes with help of the ceiling fixing plate. 3.
