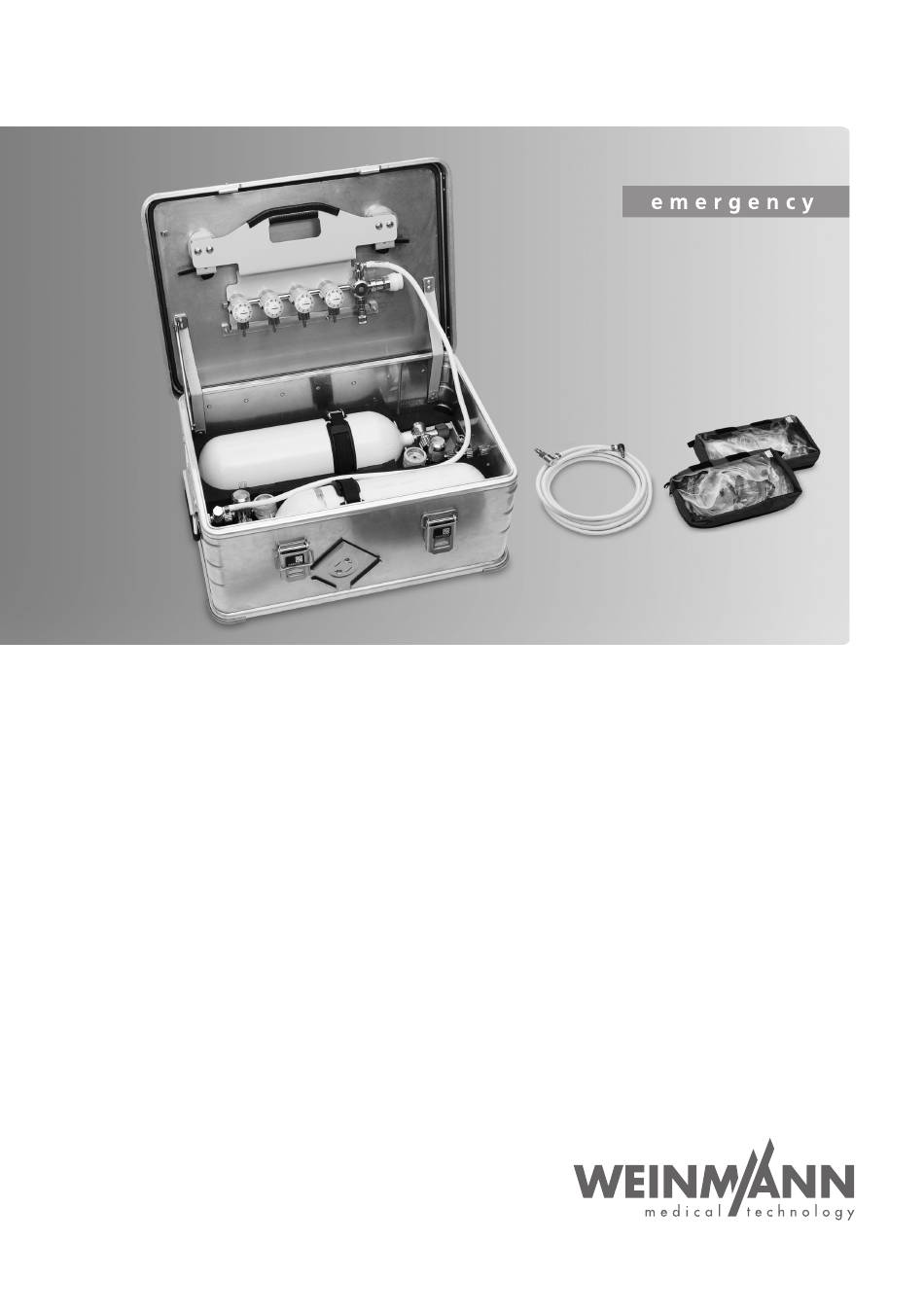

- Page 1 Box Rescue compact Oxygen supply unit Instructions for use...
-
Page 2: Table Of Contents
Table of Contents Introduction Intended use ................. 4 Function ..................4 Operator and user qualification ............. 5 Contraindications ................5 Side effects ................... 5 Safety Warnings in this document ............6 Safety information ................. 7 General instructions ..............8 Description Overview .................. - Page 3 Storage Disposal Appendix 10.1 Technical data ................20 10.2 Scope of supply ................21 10.3 Warranty ..................23 10.4 Declaration of Conformity ............23 Box Rescue compact...
-
Page 4: Introduction
Introduction Introduction 1.1 Intended use The O Box Rescue compact is used to transport an oxygen system and the required accessories. A maximum of 4 patients can be supplied with oxygen simultaneously on site. The Box Rescue compact is predominantly used at multiple casualty/victim accident scenes. -
Page 5: Operator And User Qualification
Introduction Operation with external devices The box can be operated with external devices. Examples: • MEDUMAT Easy CPR • MEDUMAT Standard a • MEDUMAT Standard • MEDUMAT Transport • OXYMAND demand valve • OMNIVAC secretion suction If all of the inhalation outlets and an external device are used simultaneously, there may be a reduction in the oxygen output volume (see “10.1.2 Output volume of the oxygen administrator”,... -
Page 6: Safety
Safety Safety 2.1 Warnings in this document Warnings are used to flag up safety-relevant information. You will find a warning preceding any action that entails a hazard for persons or equipment. Warnings consist of • the warning symbol (pictogram), • a signal word designating the hazard level, •... -
Page 7: Safety Information
Safety 2.2 Safety information Please read these instructions for use and the instructions for use for the devices in the box carefully. The instructions for use form part of the devices described, and must be available at all times. Only use the box for the intended use (see “1.1 Intended use”, page 4). -
Page 8: General Instructions
• Inspections and maintenance should only be carried out by the manufacturer, WEINMANN Emergency. • If third-party items are used, malfunctions may occur and fitness for use may be restricted. Biocompatibility requirements may also not be met. Please note that in such cases, any... -
Page 9: Description
Description Description 3.1 Overview Designation Description Handle Enables the box to be carried. The pressure hose has a DIN connector and a self-sealing adapter for the Walther coupling. It connects the oxygen Pressure hose, 5 m administrator to the central gas supply or an external device (see “1.2 Function”, page 4). -
Page 10: Labels And Symbols
Description Designation Description The pressure hose has a G 3/8" screw connector and a self-sealing adapter for Pressure hose, 1 m the Walther coupling. It connects the oxygen administrator to the oxygen cylinder. Clamping belt Keeps the oxygen cylinder in its position. The box has space for two 5 l oxygen Oxygen cylinder cylinders. -
Page 11: Preparation And Operation
Preparation and operation Preparation and operation Risk of injury from highly compressed oxygen! When combined with highly compressed oxygen, hydrocarbon compounds can cause explosions. Wash your hands before changing the oxygen cylinder. Do not use any oil, grease, cleaning alcohols, hand cream, or adhesive plasters. -
Page 12: Changing The Oxygen Cylinder
Preparation and operation 3. Open the oxygen cylinders. Result The oxygen supply has been connected and the box is ready for use. 4.2 Changing the oxygen cylinder 1. Close the valve on the oxygen cylinder. 2. Open a dosage unit until the system is depressurized. 3. -
Page 13: Removing The Oxygen Administrator
Preparation and operation 4.3 Removing the oxygen administrator 1. Push the locking levers downwards until the locking mechanism disengages. 2. Lever the oxygen administrator upwards out of the holding brackets. Result The oxygen administrator is no longer secured in the cover. 4.4 Securing the oxygen administrator 1. -
Page 14: Hygienic Reprocessing
Hygienic reprocessing Hygienic reprocessing 5.1 General instructions • Use suitable gloves for disinfection work (e.g., household or disposable gloves). • Please refer to the instructions for use supplied with the disinfectant used. ® • Recommendation: terralin protect for wipe disinfection 5.2 Intervals Reprocess the device hygienically after every use. - Page 15 Hygienic reprocessing 2. Carry out hygienic reprocessing of the box as specified in the following table: Part Cleaning Disinfection Sterilization Metal surfaces of Wipe down with a Wipe disinfection Not permitted the box moist cloth Wipe down with a Foam Wipe disinfection Not permitted moist cloth Oxygen...
-
Page 16: Function Check
The cover holder clicks into both positions (on the box and on the cover) securely. 2. If one of the requirements is not fulfilled: replace defective components or send the box to the manufacturer, WEINMANN Emergency, for repair. Result The box has been checked. Box Rescue compact... -
Page 17: Checking The Oxygen Administrator
Function check 6.3 Checking the oxygen administrator Risk of injury from damaged oxygen administrator! A damaged oxygen administrator does not provide sufficient oxygen for ventilation. This can injure the patient. Only use the box if all the locking buttons on the oxygen administrator are undamaged. -
Page 18: Checking The Fixation Of The Oxygen Administrator
Requirement: The needle must remain still. 13. Set a locking button to 0 until the system is depressurized. 14. If a requirement is not fulfilled: contact WEINMANN Emergency or a technician authorized by WEINMANN Emergency. Result The oxygen administrator has been checked. -
Page 19: Maintenance
Maintenance Maintenance The box is maintenance-free. However, please observe the following points: • A check measurement of the oxygen administrator should be performed every four years to verify the dosage accuracy. When doing so, observe the instructions for use of the OXYWAY Click oxygen administrator. -
Page 20: Appendix
Appendix 10 Appendix 10.1 Technical data 10.1.1 Technical data for box Specification Product class according to 93/42/EEC I External measurements 615 x 420 x 270 (W x H x D in mm) Internal measurements 570 x 380 x 220 (W x H x D in mm) Weight •... -
Page 21: Scope Of Supply
Appendix 10.1.2 Output volume of the oxygen administrator The output of the individual inhalation outlets may fluctuate according to utilization of the administrator. The values listed in the following table presuppose that a pressure reducer with an output of at least 190 l/min is used. Tolerances for the set flow per inhalation outlet in l/min Max. - Page 22 Appendix 10.2.2 Spare parts Part Order number Holding plate for oxygen cylinders WM 9516 Holding plate for OXYWAY Click oxygen administrator WM 9524 Edge protector, 90 mm WM 3819 Edge protector, 180 mm WM 8104 Adapter for equipment rail WM 8244 Holder for equipment rail adapter WM 3805 Adapter with G 3/8"...
-
Page 23: Warranty
Appendix 10.3 Warranty Starting from the date of purchase, WEINMANN Emergency offers the customer a limited manufacturer’s warranty on a new original WEINMANN Emergency product or replacement parts installed by WEINMANN Emergency in accordance with applicable warranty terms and conditions for the particular product and the warranty periods listed below. - Page 24 WEINMANN Emergency Medical Technology GmbH + Co. KG Frohboesestrasse 12 22525 Hamburg GERMANY E: customerservice@weinmann-emt.de www.weinmann-emergency.de T: +49 40 88 18 96-120 F: +49 40 88 18 96-481 Center for Production, Logistics, Service WEINMANN Emergency Medical Technology GmbH + Co. KG...
