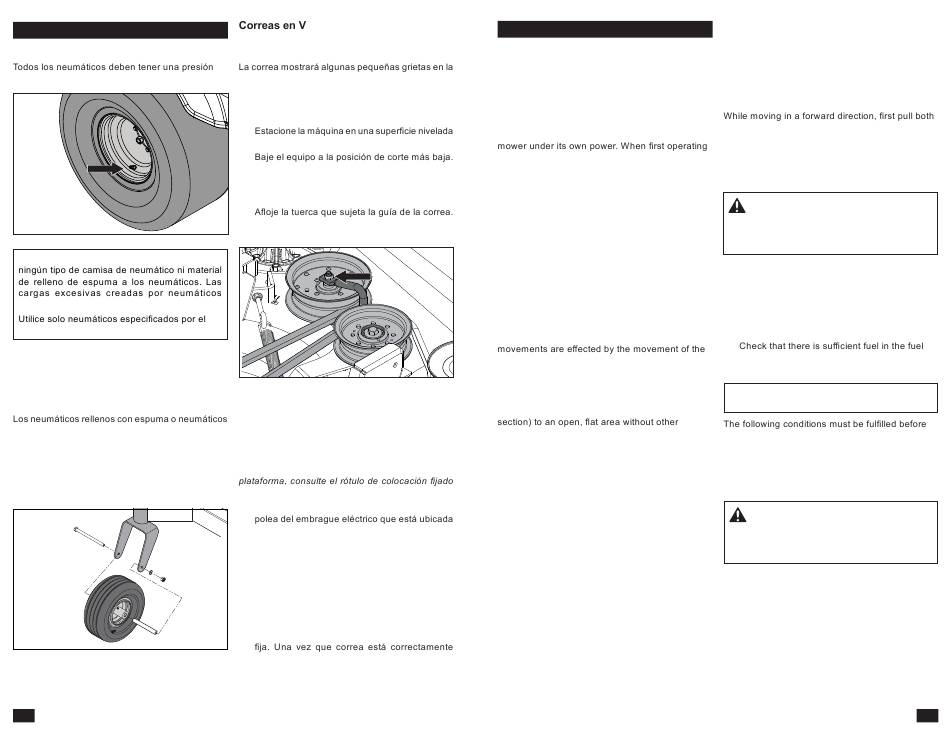

MANTENIMIENTO
Presión de los neumáticos
de 15 psi / 103 kPa / 1 bar.
INFORMACIÓN IMPORTANTE NO agregue
rellenos de espuma causan fallas prematuras.
fabricante original.
Ruedecillas
Revíselas cada 200 horas. Compruebe que las
ruedas giren libremente. Si las ruedas no giran
libremente, lleve la unidad al distribuidor para el
servicio.
macizos anulan la garantía.
Desmontaje y montaje
Quite la tuerca, la arandeia y el perno de la rueda.
Tire de la rueda hacia fuera de la horquilla y tenga
cuidado con los separadores. Para su instalación,
siga el proceso inverso. Apriete el perno de la rueda.
60
Revíselas cada 100 horas de funcionamiento.
Revise si hay grietas profundas y mellas grandes.
operación normal. Las correas no son ajustables.
Reemplace las correas si empiezan a deslizarse
por desgaste.
Extracción de la correa del equipo
1.
y aplique el freno de estacionamiento.
2.
3. Quite las protecciones de la correa.
4. Retire desechos que se ha acumulado alrededor
de los alojamientos de la cortadora y del equipo.
5.
NOTA la posición de la guía de la correa para
la reinstalación.
6. Presione hacia adentro el brazo guía para
liberar la tensión de la correa.
7. Levante con cuidado la correa hacia la parte
superior de las poleas de la carcasa de la
cortadora y quite la correa del equipo.
Instalación de la correa del equipo
NOTA: Para instalar fácilmente la correa de la
a la plataforma de corte.
1. Envuelva la correa del equipo alrededor de la
en el eje del motor.
2. Pase la correa hacia adelante y hacia arriba
en el equipo.
3. Coloque la correa alrededor de la polea tensora
de resorte.
4. Envuelva la correa del equipo alrededor de la
polea tensora y ambos alojamientos de mandril.
5. Empuje hacia dentro el brazo guía y dirija
cuidadosamente la correa sobre la polea tensora
instalada, suelte lentamente del brazo guía para
tensar la correa.

OPERATION

Read the Safety section and following pages, if
you are unfamiliar with the machine.

Training

Due to unique steering capabilities, zero turn
mowers are far more maneuverable than typical
riding mowers.
Review this section fully prior to trying to move the
the mower or until becoming comfortable with
controls, use a reduced throttle speed and
reduced ground speed. DO NOT move control
levers to the furthest forward or reverse positions
during initial operation.
First time users must become familiar with the
mower's movement on a hard surface, such as
concrete or blacktop PRIOR to trying to operate
on turf. Until the operator becomes comfortable
with the mower controls and zero turning
capability, overly aggressive maneuvers may
damage turf.
Steering
To move forward and backward
The direction and speed of the mower's
control lever(s) on each side of mower. The left
control lever controls the left wheel. The right
control lever controls the right wheel.
First time users must push the mower (see
Moving Machine By Hand in the Operation
persons, vehicles or obstacles nearby. To move
the unit under its own power, the operator must
sit in the seat and start the engine (see Before
Starting in the Operation section). Adjust the
engine speed to idle, disengage the park brake
but do not engage the blades at this time. Pull
control levers inward. As long as the control levers
have not been moved forward or backwards, the
mower will not move.
Slowly move both control levers forward slightly.
This will let the mower start moving forward in a
straight line. Pull the control levers back to the
neutral position and stop the mower from moving.
Pull back slightly on control levers, allowing the
mower to move backwards. Push the control
levers forward to the neutral position to stop the
mower from moving.
To turn to the right
While moving in a forward direction, pull the right
lever back towards the neutral position while
maintaining the position of the left lever, this will
slow the rotation of the right wheel and cause the
machine to turn in that direction.
To turn to the left
While moving in a forward direction pull the left
lever back towards the neutral position while
maintaining the position of the right lever, this will
slow the rotation of the left wheel and cause the
machine to turn in that direction.
To zero turn
control levers back until the mower stops or slows
dramatically.
Then by alternating one lever slightly to the
forward position and the other in the reverse
position, complete the turn.
WARNING! Make sure the work area is
free from objects that could be thrown by the
rotating blades. Clear the lawn of stones and
other objects.
Before Starting
1. Read the sections on Safety and Controls
before starting the machine.
2. Do the daily maintenance before starting (see
Maintenance Schedule in the Maintenance
section).
3.
tank.
4. Adjust the seat to the desired position.
IMPORTANT INFORMATION The seat should
not be adjusted while the unit is in motion.
the engine can be started:
• The blade switch must be pressed down into
the disengaged position.
• Both steering / park brake controls must be in
the locked (outer) position.
WARNING! The engine exhaust contains
carbon monoxide, which is a odorless,
colorless, poisonous gas. Do not use the
machine in enclosed spaces.
