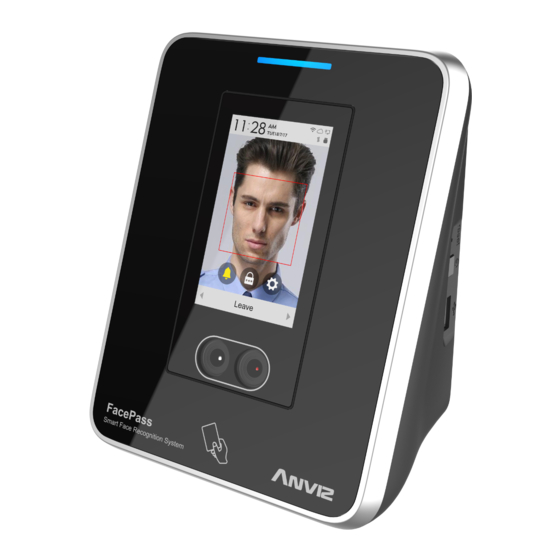

Facepass 7
Standalone Facial Recognition System
Quick Guide
V1.0
Anviz brand and product are trademarked and protected under law of the United States.
Unauthorized use is prohibited.
For more information visit www.anviz.com, or email info.asia@anviz.com for further help.
©2018 Anviz Global Inc. All Rights Reserved.
Notice
!
Do not use oily water or sharp objects to stain or damage the display screen
Fragile parts are used in the equipment, so please avoid operations such as
falling,crashing,bending or heavily pressing
The normal working environment of the display screen and key parts of this
equipment is indoor environment. Beyond this temperature range, the equipment
will be less effective with reduced functionality and performance
Please gently wipe the screen and panel with material of soft cloth. Avoid
scrubbing with water or detergent
When unable to exit the equipment or terminate the operation, users can press
Reset to restart the device
This equipment is not waterproof design, therefore please pay attention to
waterproof and rainproof in use
1. Packing List
Terminal
Quick Guide
2. Installation Environment
Before the installation:
FacePass 7 working temperature: 0℃~45℃, working humidity: 20-80%
The direct sunlight would cause great impact on the face recognition performance,
so during the installation please :
① Avoid installing the equipment in outdoor environment under direct sunlight
② Conduct waterproof and rainproof protection during outdoor installation
③ Avoid the effect of strong light on the device camera during indoor installation
3. Installation Procedure
Step 1:Installation Position
①
The best face recognition distance of the FacePass7 is 30-80cm.The best acquisition
angles of the device camera is ±20° both horizontal and vertical.ttt
②
The recommended installation height is 110cm, where the FacePass 7 can recognize
the faces of people between 145cm and 195cm in height. Please determine the
installation position according to the height of the actual users.
1
Installation Diagram:
Step 2:Installation Steps
③
Place the back plate at the
appropriate position and drill into the
wall according to the mounting holes
④
Fix the back plate and connect wires
Mount the terminal
⑤
Accessories
4. Quick Guide
General Settings
Power on the FacePass
7 and wait for the
activation.Click
,
then input admin ID
and password to enter
main menu.Click
,
then input employee
ID and password to
verify.
195cm
110cm
145cm
Floor
Fig.(1) Installation Position
30cm
80cm
②
③
④
Click
,then input ID
Enter system settings \
View or edit device ID
"0", password
and admin password
time to set date and
"12345" to enter main
in system
time.
menu.0/12345 is the
settings\device.
factory default admin ID
and password .You can
change to your own
password or set other
users as administrators.
2
