HOT-SHOE ADAPTER

FEATURES
The hot-shoe adapter offers special connection pins for the communication with the attached camera.
There are four different Elinchrom Transmitter variants available
• Canon for Canon
®
• Nikon for Nikon
®
EN
• Sony , Olympus
®
The communication with the camera is required to benefit from the extra features like:
• SYNC Mode
o Hi-Sync, HSS and ODS Mode
o Second Curtain
o TTL
• Auto MOD
• AF Light
Note: Not all cameras support all features!
LIST OF TESTED CAMERAS
The latest summary of camera models and supported features can be found on the Elinchrom website at:
http://www.elinchrom.com/support.php

MOUNTING ON THE CAMERA

An easy locking bayonet mechanism is used to lock the Transmitter securely into the Camera's hotshoe.
ATTACHING
1. Turn off the camera and the Elinchrom transmitter.
2. Align the transmitter hotshoe with the camera's hotshoe mount.
3. Slide it all the way into the camera's hotshoe mount.

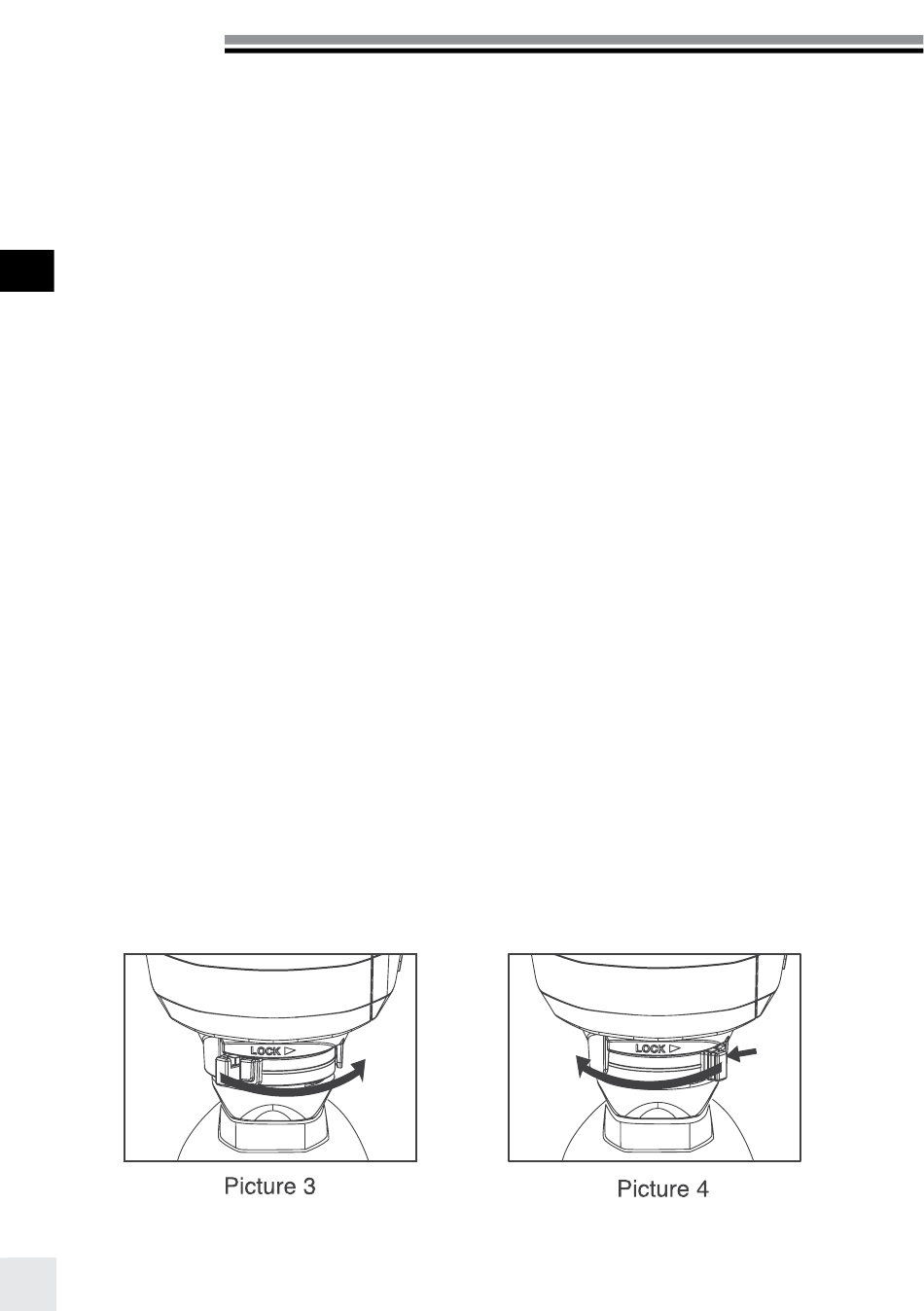

4. Move the tab on the locking ring to the right until it clicks in place. (See picture 3)
DETACHING
1. Unlock: press the lock-release button and move the tab all the way to the left. (see picture 4)
2. Slide the EL-Skyport transmitter off the camera's hotshoe mount.
10
EOS type A cameras with ETTL II / ETTL features
®
cameras with iTTL features
®
Panasonic and other brand will follow later.
®, ®,
