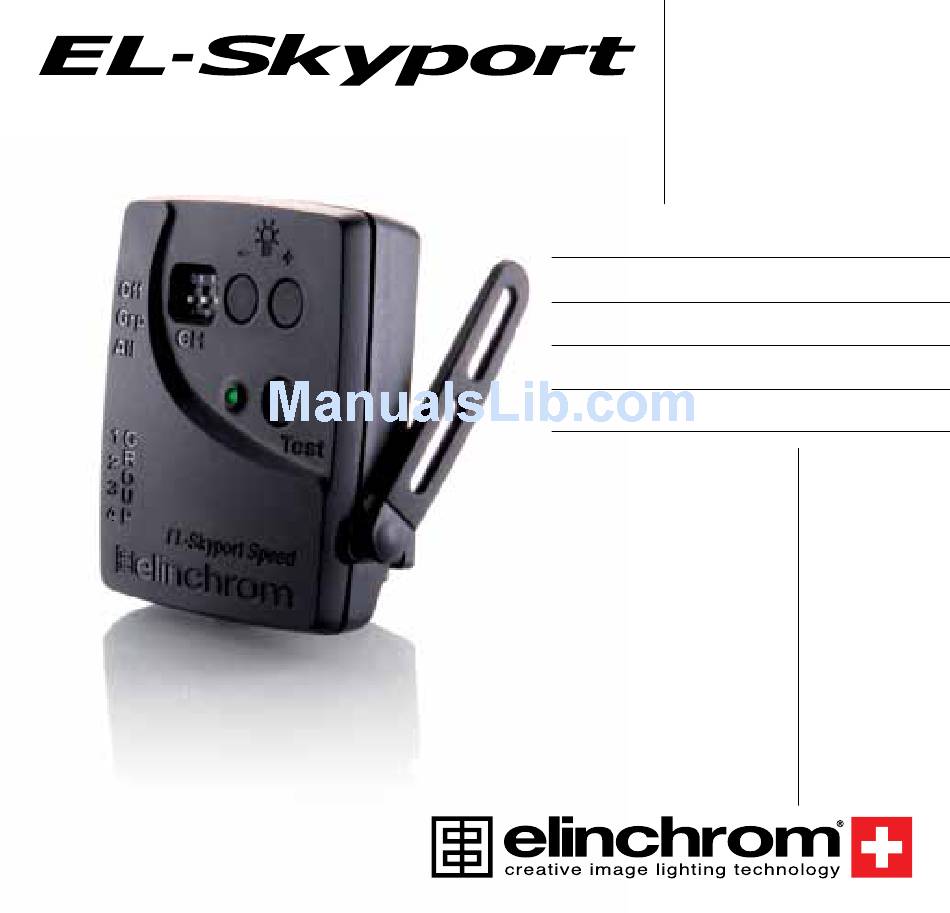

  • Page 1 Transmitter Speed 1 9 3 5 0 Instructions for use Betriebsanleitung Mode d’emploi Instrucciones para el uso Istruzioni per l’uso E L S Tr a n s m i t t e r S p e e d M a n u a l 0 2 .
  • Page 2 English 1 - 10 Deutsch 11 - 20 Français 21 - 30 Español 31 - 40 Italiano 41 - 50 Guarantee 51 - 54...

  • Page 3: Table Of Contents

    19350 C o n t e n t s : Features Battery Installation Hot-shoe connector Operating Instructions Frequency Channel Trigger Modes Integrated SYNC Socket Elinchrom RX Features EL-Skyport Modules Troubleshooting CE Statements FCC Compliance and Advisory Statement Disposal and recycling...

  • Page 4: Features

    EL-Skyport Transmitter SPEED//19350 Operating instructions : 2.4 GHz digital wireless Flash Trigger Transmitter Features EL-Skyport Transmitter Speed is designed with the latest 2.4 GHz Digital Wireless Technology. • SLR Camera Sync speeds: SPEED mode up to 1/250 s, STANDARD mode 1/160 - 1/200 s. •...

  • Page 5: Battery Installation

    Battery Installation 1. Pull the battery drawer out carefully. 2. Place the Lithium battery, see Fig. 1 for correct polarity. 3. Close the battery drawer. ! CAUTION: • Ensure correct polarity / minus pole on top. • Use only the Lithium Battery CR2430 3.0 V 19372. •...

  • Page 6: Frequency Channel

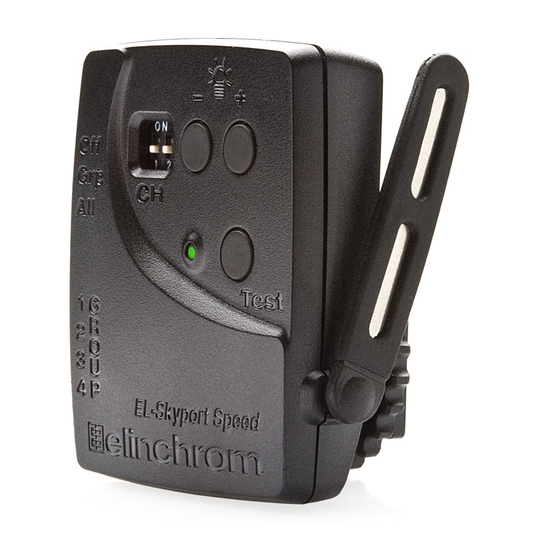

    Fig. 2 Frequency RX feature button channel selector Power decrease RX feature button Power increase MODE switch or modelling lamp toggle Flash Test / Flash Mode / Configuration button Flexible swivel Antenna 360 ̊ GROUP switch Status LED Frequency Channel Note: Transmitter and the corresponding Transceiver RX, the Universal Receiver or the EL units with integrated EL-Skyport Receiver must have the same frequency channel...

  • Page 7: Trigger Modes

    Only possible with EL-Skyport PC / MAC software v 3.0 and higher. - Power-Save Timer, individual programmable or disabled. - Trigger delay is programmable from 250 ms up to 15 s. - Download the FREE EL-Skyport Software from www.elinchrom.com SET Config Mode: (to configure included features) - Switch module OFF.

  • Page 8: Integrated Sync Socket

    The EL-Skyport Transmitter triggers the EL-Skyport Receiver modules in the following modes: 1. Off  Unit is OFF, no function. 2. Select Group - Group (1 to 4).  Set switch to Group. and select Group 1 to 4.  All corresponding EL-Skyport Receivers with the same selected Group (1 to 4) are triggered.
  • Page 9 Power save mode timer: - After not using the Transmitter for 30 minutes the Power Save mode is active. To reactivate the Transmitter, press the TEST push button. - The Power Save mode timer can be configured with the EL-Skyport PC / MAC software v 3.0 and higher.

  • Page 10: El-Skyport Modules

    • Universal Receiver for all makes of Flash with a SYNC socket, conforming to Sync norms! EL-Skyport Transceiver RX • This Transceiver is only for Elinchrom RX units. The module operates all RX features with the EL-Skyport software and triggers the flash.

  • Page 11: Troubleshooting

    Troubleshooting Should an error occur, first check the following points: Having this problem? Check the following points: No flash unit can be triggered  Check if the Transmitter is switched ON. with the Transmitter  Check battery polarity. Mode “All” is selected ...

  • Page 12: Fcc Compliance And Advisory Statement

    Any components not reclaimed will be disposed of in an environmentally acceptable manner. If you have any question on disposal, please contact your local office or your local ELINCHROM agent (check our website for a list of all ELINCRHOM agents world wide).
