NEC Univerge SV8100 Reference Sheet page 5

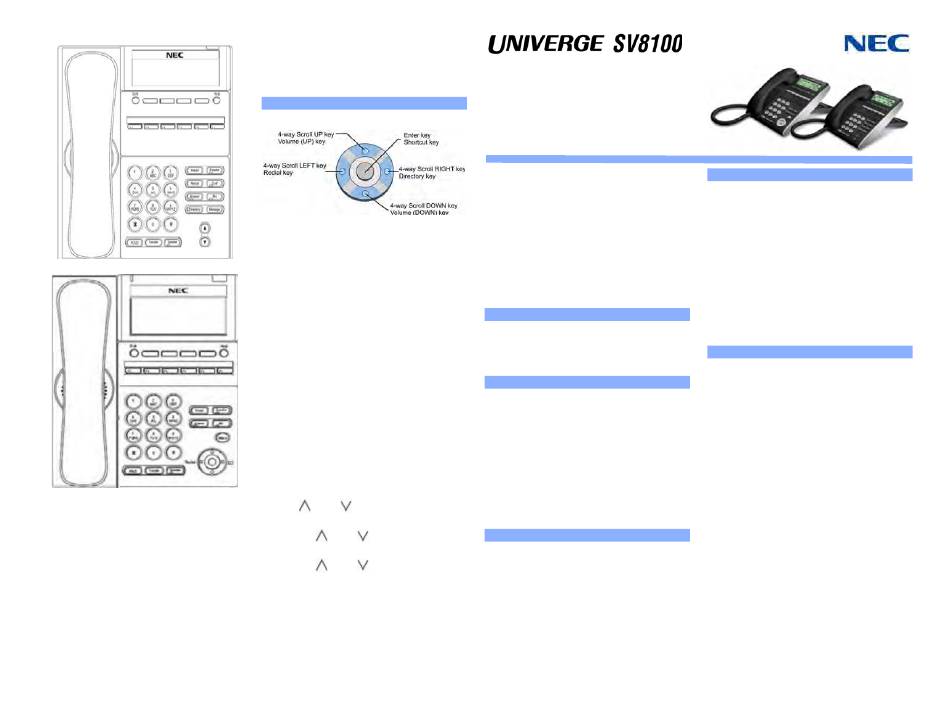

Digital Terminal Layout
IP Terminal Layout
Call Indicator Lamps
Lamp at top corner of handset flashes when a
call terminates to the terminal. Lamp light
flashes when a message has been left.
Programmable Keys
These keys can be programmed as either
Flexible Line key, Programmable Feature key or
One-Touch Speed Dial key.
Recall
Press this key to send a hook flash to the CO
you are currently on. Depending on the CO, it
may put the caller on hold with Telco or hang up.
Feature
Used to activate terminal setup functions and to
program One-Touch keys.
Feature + 1 - Turns microphone On/Off.
FUNCTION KEYS
IP Terminal Layout Only
Redial key (offered on Digital terminal)
Press this key to activate the redial feature.
Conf (offered on Digital terminal)
Press this key to establish a three way
conference. LED on key lights when active.
Answer
When the LED on this key is flashing, press the
key to answer a waiting call.
Mic
Press key to respond hands free. LED on this
key lights up during speakerphone operation.
Message (offered on Digital terminal)
Press this key to access the voicemail system or
press the key to leave Message Waiting.
Speaker
Controls built-in speaker, which can be used for
Hands Free Dialling/Monitoring. LED on key
lights when active.
Use the Up or keys to adjust speaker/
receiver volume and ringer volume.
❏
Press Up or Down while idle to
adjust speaker/receiver volume.
❏
Press Up or Down while ringing to
adjust ring volume.
Directory key (offered on Digital terminal)
Press key to activate speed calling - system
feature (Future).
Transfer
Allows the extension user to transfer a call or
make a second call.
®
6 Button Digital & IP
Reference Sheet
Hold
Press this key to put a call on hold.
Help
Explanations of Programmable Keys can be
called up on the LCD by pressing the Help key
then pressing a programmable key.
Exit
The user can exit from the Menu or Help mode
by pressing this key.
MAKE A CALL
❏
Lift the Handset or press Speaker.
❏
Dial the required number
(For external calls, dial 9 first).
LAST NUMBER REDIAL
(Offered on IP terminal)
❏
Without lifting the handset, press Redial
button.
❏
Press Redial to scroll to the required
number.
❏
Press # or Speaker to initiate the call.
(Offered on Digital terminal)
❏
Press # or Speaker to initiate the call.
HOLD
Ask the caller to please hold:
❏
Press the Hold key - held key flashes.
❏
You may replace handset if you wish.
To retrieve a call:
❏
Lift the handset.
❏
Press the flashing line.
NOTE:
For exclusive hold - press Feature + Hold.
TRANSFER
With a call in progress:
❏
Press the Transfer key.
❏
Dial an extension or external number and
announce the call (optional).
❏
Replace the handset.
NOTE:
If the called extension is busy or does not
answer, press the flashing line to return to your
caller. If the extension does not accept the call,
ask them to hang up and your call is returned or
press the flashing line to return to your caller.
.
CONFERENCE
(Offered on Digital terminal)
With a call in progress (internal or external).
❏
Press the Conf key.
❏
Dial an internal or external number.
❏
When the third party answers, press Conf
key twice.
❏
A three way conference is now
established.
(Offered on IP terminal)
❏
Press the Conf soft key.
❏
Dial an internal or external number.
❏
When the third party answers, press the
ADD soft key.
❏
Press Begin softkey to begin the
Conference.
❏
A three way conference is now
established.
NOTE:
Any party may exit the conference by hanging
up. The two parties will remain connected, as
long as one of the remaining parties is internal.
31151
Issue 1.01
