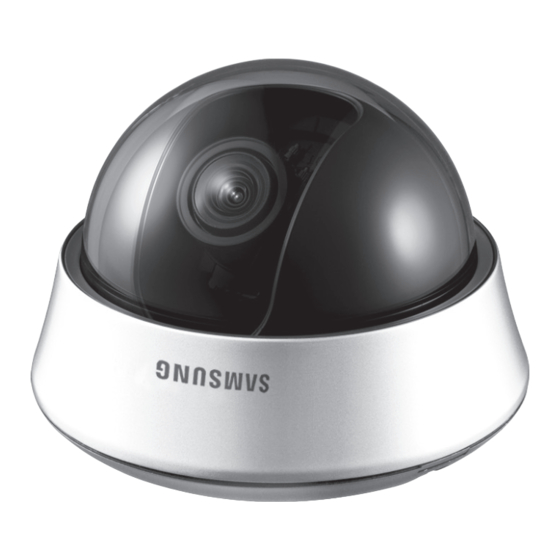

- Page 1 User’s Guide Digital Color Dome Camera SCC-B535x(S)
- Page 2 EXPLANATION OF SAFETY RELATED SYMBOLS The lighting flash and Arrowhead within Triangle is a warning sign alerting you of dangerous voltage inside the product. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.
-
Page 3: Fcc Statement
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.) 10. When cleaning, do not spray water directly onto parts of the product. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions – All the safety and operating instructions should be read before the product is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to. - Page 5 alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.
- Page 6 17) Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be...
-
Page 7: Table Of Contents
Contents Overview ...8 About this guide ...8 Product overview ...8 Main features ...8 Components ...8 Checking components in the package ...8 Components of your camera ...9 Installation ... 10 Setting switches ...10 Setting function switches ...10 Connecting cables and changing the settings ...12 Installing camera ...13 Before installation ...13 Installation procedure ...13... -
Page 8: Overview
Overview About this guide ❚ This user guide includes basic instructions for the product. It is recommended that all users read this guide before use. This guide is divided as follows: Chapter 1, “Overview,” introduces the user guide and product related information. (This chapter) ... -
Page 9: Components Of Your Camera
Components of your camera Your camera has the following components: 1. Cover dome: Covers the inner cover, lens, and main body to protect them. 2. Inner cover: Covers the main body to protect it. 3. Wing locker: Push a long thin screwdriver into its narrow spot and press it outward when you want to remove the inner cover. -
Page 10: Installation
Installation Setting switches ❚ Setting function switches To set the available functions on your camera, adjust eight switches as shown below: 1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal synchronization mode, while when it is set to ON, the camera operates in the line lock mode. In the internal synchronization mode, the camera always uses an inside crystal oscillator for synchronization. - Page 11 2. Switch 2 (LSS): This sens-up mode accumulates the image fields in memory to reduce noise but increase the brightness and contrast rate. When this switch is set to ON, the camera automatically switches to a maximum of 128 times of image acquisition speed to implement a clear picture for darker image.
-
Page 12: Connecting Cables And Changing The Settings
Connecting cables and changing the settings ❚ Before installing your camera, you have to adjust the lens focus, zoom, and switch settings. To adjust the lens focus, zoom, and function settings 1. Remove the Cover dome and Inner cover. For more details about the removing procedures, see “Installation procedure,”... -
Page 13: Installing Camera
Installing camera ❚ Before installation Before installing your camera, you have to read the following cautions: You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. -
Page 14: Adjusting The Camera Direction
5. When you install the Mount bracket on the ceiling, remove the Ceiling mount opener by pressing it hard to connect the line attached on your camera through the hole in the ceiling. Otherwise, you can use the empty space opposite to the CAMERA FRONT sign for line connection. 6. -
Page 15: Appendix A: Specifications For Ntsc Standard
Appendix A: Specifications for NTSC Standard Item Product type CCTV color dome camera Power input AC 24V ± 10% (60Hz ± 0.3 Hz), DC 12V +10%/-5% Broadcast type NTSC Standard System (525 Lines, 60 Fields) Power consumption Approx. 1.7W Image device 1/3 inch IT Type Super-HAD CCD Total: 811(H) x 508(V), 410,000 pixels Pixels... -
Page 16: Appendix B: Specifications For Pal Standard
Appendix B: Specifications for PAL Standard Item Product type CCTV color dome camera Power input AC 24V ± 10% (50Hz ± 0.3 Hz), DC 12V +10%/-5% Broadcast type PAL Standard System (625 Lines, 50 Fields) Power consumption Approx. 1.7W Image device 1/3 inch IT Type Super-HAD CCD Total: 795(H) x 596(V), 470,000 pixels Pixels...
