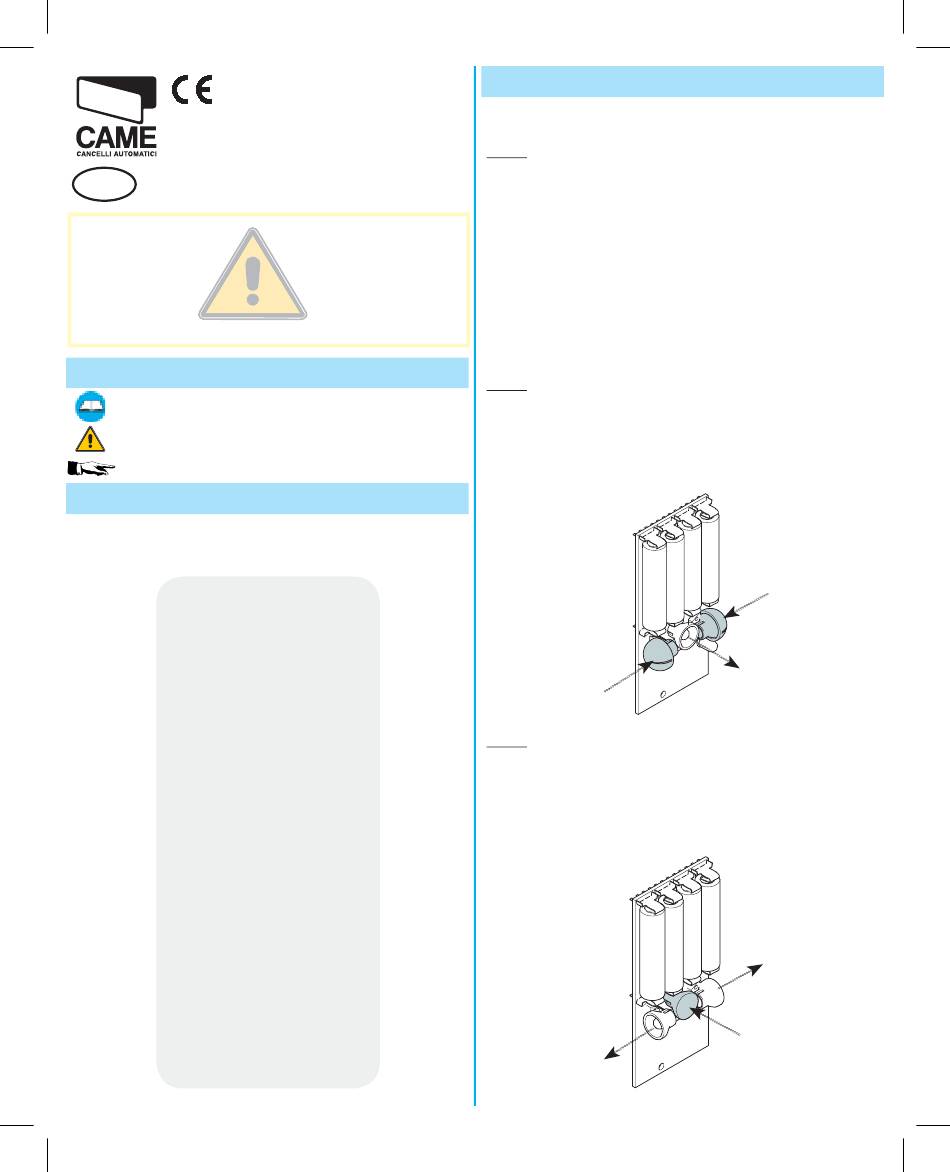

CAME DIW 01 Installation Manual

DIW 03-DIW04
CORDLESS PHOTOCELL
GB GB
Installation MANUAL
"IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION"
"CAUTION: IMPROPER INSTALLATION MAY CAUSE
SERIOUS DAMAGE, FOLLOW ALL INSTALLATION INSTRUC-
TIONS CAREFULLY"
"THIS MANUAL IS ONLY FOR PROFESSIONAL INSTALLERS
OR QUALIFIED PERSONS"

Legend of symbols

This symbol indicates sections to be read with particular care.
This symbol indicates sections concerning safety
This symbol indicates notes to communicate to users.

Reference Standards

with the following standards:
EN 12978, UNI EN 954-1, CEI EN 60335-1, UNI EN 12453.
DIW 01

Description of devices

Designed and manufactured by CAME CANCELLI AUTOMATICI
S.p.A. in compliance with the safety regulations in force.S.p.A.
DIW01
Protection deviceMade up of two units:
-12/24v AC/DC Infrared receiver.
1 led to signal that battery is run down (when the led on the receiver
fl ashes, this means that the batteries' charge will completely run
down in about a month)
-Battery powered infrared transmitter (works on four 1.5V AAA
batteries)
DIW03
- Infrared repeater, made up of a central transmitter photodiode and
two lateral receiver photodiodes, with dip switches for selecting
receiving side.
Battery powered (works on four 1.5 AAA batteries)
RX
DIW04
- Infrared repeater, made up of a central photodiode receiver and
two lateral, transmitting photodiodes, with dip switches for selecting
the emitting side.
Battery powered (works on four 1.5V AAA batteries)
TX
RX
TX
TX
RX
