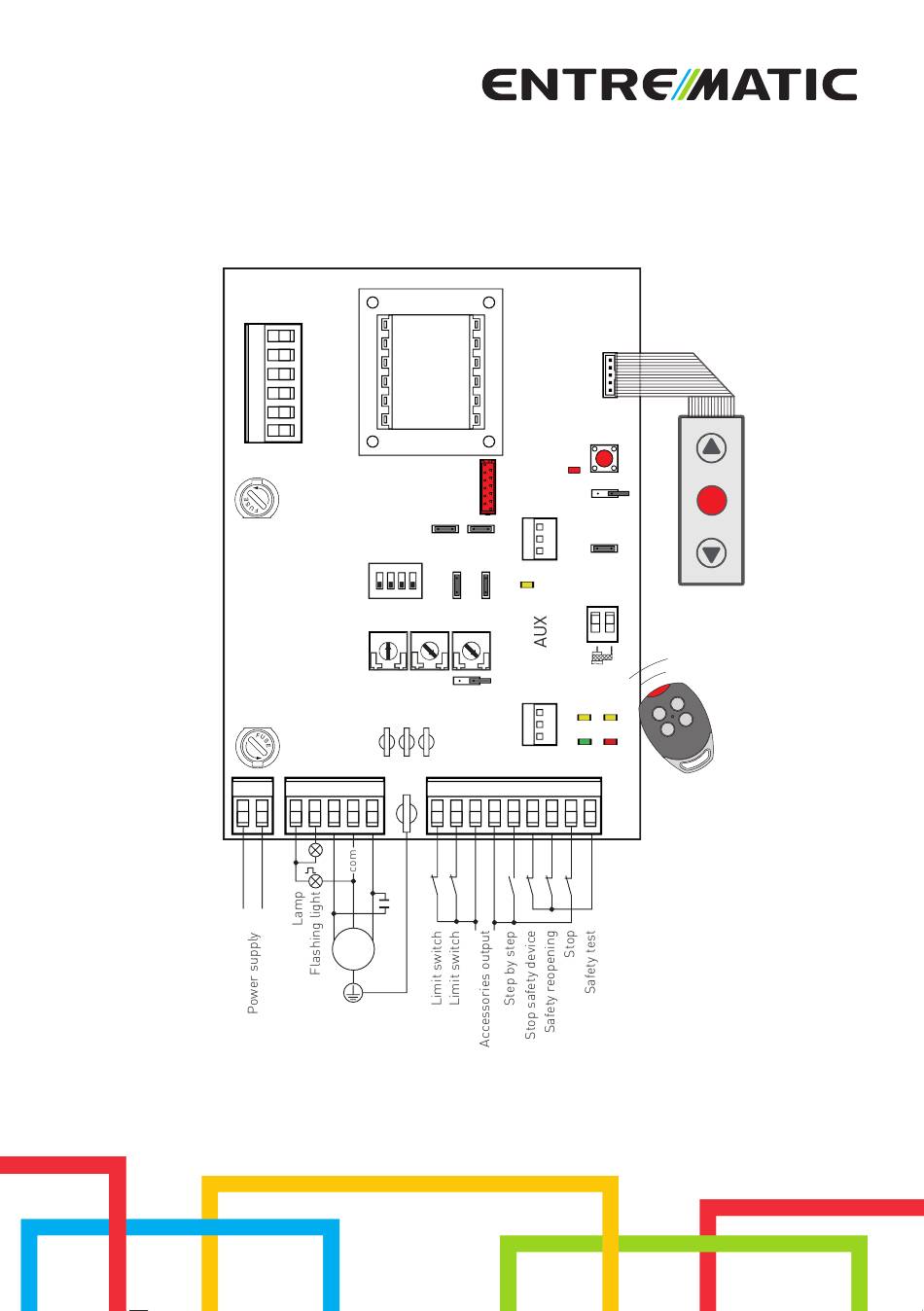

  • Page 1 Ditec E1A Control panel installation manual for one motor automation with built-in radio. JR4 JR10 SO 6>4 2 3 4 12 0 11 POWER GOL4 N C U W V 11 0 1 5 6 8 9 41 IP2045EN Technical manual...

  • Page 3: Table Of Contents

    Index Subject Page General safety precautions EC declaration of conformity Technical data Applications Commands Self-controlled safety edge Outputs and accessories Adjustments Trimmer Dip-switch Jumper Signals Radio Start-up Troubleshooting Application example for sliding doors and gates Application example for in-parallel automations Application example for barriers Application example for rolling shutters Application example for sectional overhead doors...

  • Page 4: General Safety Precautions

    1. General safety precautions Failure to observe the information in this manual may result in minor personal injury or damage to equipment. Save these instructions for future reference. This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with applicable regulations.

  • Page 5: Ec Declaration Of Conformity

    2. EC Declaration of conformity The manufacturer Entrematic Group AB with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden declares that the control panel Ditec E1A is in conformity with the provisions of the following EC directives: Directive 2004/108/CE; Low energy Directive 2006/95/CE.

  • Page 6: Commands

    4. Commands WARNING: Make a jumper on all N.C. contacts if not in use. The terminals with the same number are equal. Command Function Description 5 N.O. STEP-BY-STEP With DIP1=OFF and TC<MAX, the closure of the contact activates WITH an opening or closing operation in the following sequence: open- AUTOMATIC stop-close-open.

  • Page 7: Self-Controlled Safety Edge

    Self-controlled safety edge SOFA1-SOFA2 or GOPAVRS Command Function Description SAFETY TEST Place the SOFA1-SOFA2 or GOPAVRS device into its hou- sing for plug-in cards AUX. SOFA1-SOFA2 GOPAV Connecting terminal 41 enables a safety edge test cycle before every operation. If the test fails the SA led flashes and the test is repeated. N.C.

  • Page 8: Outputs And Accessories

    5. Output and accessories Output Value - Accessories Description Accessories power supply. Power supply output for external accessories, including automa- 24 V 0,5 A 0 1 2 3 tion status lamps. The control panel has one space for coupling board, type radio receivers, magnetic loops etc.

  • Page 9: Adjustments

    6. Adjustments Trimmer Trimmer Description Setting obstacle thrust. The control panel is equipped with a safety system that stops motion if an obstacle is encountered during an opening operation and either stops or MAX=disabled reverses motion during a closing operation. R1=MIN gives maximum obstacle sensitivity (minimum thrust).

  • Page 10: Dip-Switch

    Dip-switch Description DIP1 Control 1-5 function. Step-by-Step. Opening. DIP2 Direction selection. Opens towards right. Opens towards left. DIP3 Restore automatic closing time. 50% 100% NOTE: the setting of DIP3=ON is Immediate if 6→4=OFF. recommended for overhead and NOTE: the setting of DIP3=OFF sectional doors, and condomi- and 6→4=OFF is recommended nial entrances.

  • Page 11: Signals

    Signals Flashing POWER 24 V power supply Indicates that at least one of the safety con- Safety test failure (terminal 41). tacts is open. Operations count performed (only when control panel is switched on): = 1000 operations = 10000 operations Activated at every command and adjustment to the dip-switch and jumper.

  • Page 12: Radio

    Radio The control panel is equipped with a radio receiver with a frequency Receiver of 433.92 MHz. The antenna consists of a rigid wire, 173 mm long, connected to the ANT 10 s clamp. It is possible to increase the range of the radio by connecting the antenna of the flashing lights, or by installing the tuned BIXAL antenna.

  • Page 13: Start-Up

    8. Starting • Bridge the NC safety contacts with a jumper. • Before starting up, check the application type selected (see JR6 jumper). • Any limit switches installed must be adjusted so that they are triggered near the mechanical opening and closing end stops. Set TM=MAX. NOTE: limit switches must be kept pressed until the operation has been completed.

  • Page 14: Troubleshooting

    Troubleshooting Problem Possible causes Remedy Automation does not open or close. No power. Check that the control panel is (POWER led off). powered correctly. Short circuited accessories. Disconnect all accessories from (POWER led off). terminals 0-1 (voltage must be 24 V=) and reconnect one at a time.

  • Page 15: Application Example For Sliding Doors And Gates

    10. Example applications for sliding door and gates When control panel is used for sliding automations ope- rations: - set JR6=OFF; - set TM=MAX; - select the proper opening direction by means of DIP2. DIP2=OFF (Example 1). Connect opening and closing limit <MAX switches N.C.

  • Page 16: Application Example For In-Parallel Automations

    11. Example of automation in parallel It is possible to command two automations [A] and [B] side by side, making the connections indicated in figure. Commands 1-5 and the remote control (with DIP1=ON) are equivalent to a total opening command. To manage both automations with a single remote control, do not use the radio receivers on the control panels, but insert a BIXLR22 receiver.

  • Page 17: Application Example For Barriers

    12. Application example for barriers When control panel is used for barriers operations: - set RF=CT-5 (MAX); - set TM=MAX; - set JR6=ON; - select the proper opening direction by means of DIP2. (Example 1). Connect opening and closing limit DIP2=OFF switches N.C.

  • Page 18: Application Example For Sectional Overhead Doors

    14. Application example for sectional overhead doors (Example 1) When the control panel is used in applications for sectional automations: 6>4 2 3 4 TC TM - set TM=MAX; 12 0 11 - connect opening and closing limit switches N.C. contacts to terminals 0-11-12: 11 0 1 5 6 8 9 41 - select the opening control by means of DIP1=ON;...
  • Page 19 All rights related to this material are the exclusive property of Entrematic Group AB. Although the contents of this publication have been compiled with the greatest possible care, Entrematic Group AB cannot accept liability for any damage that might arise from errors or omissions in this publication.
