Ditec EL34

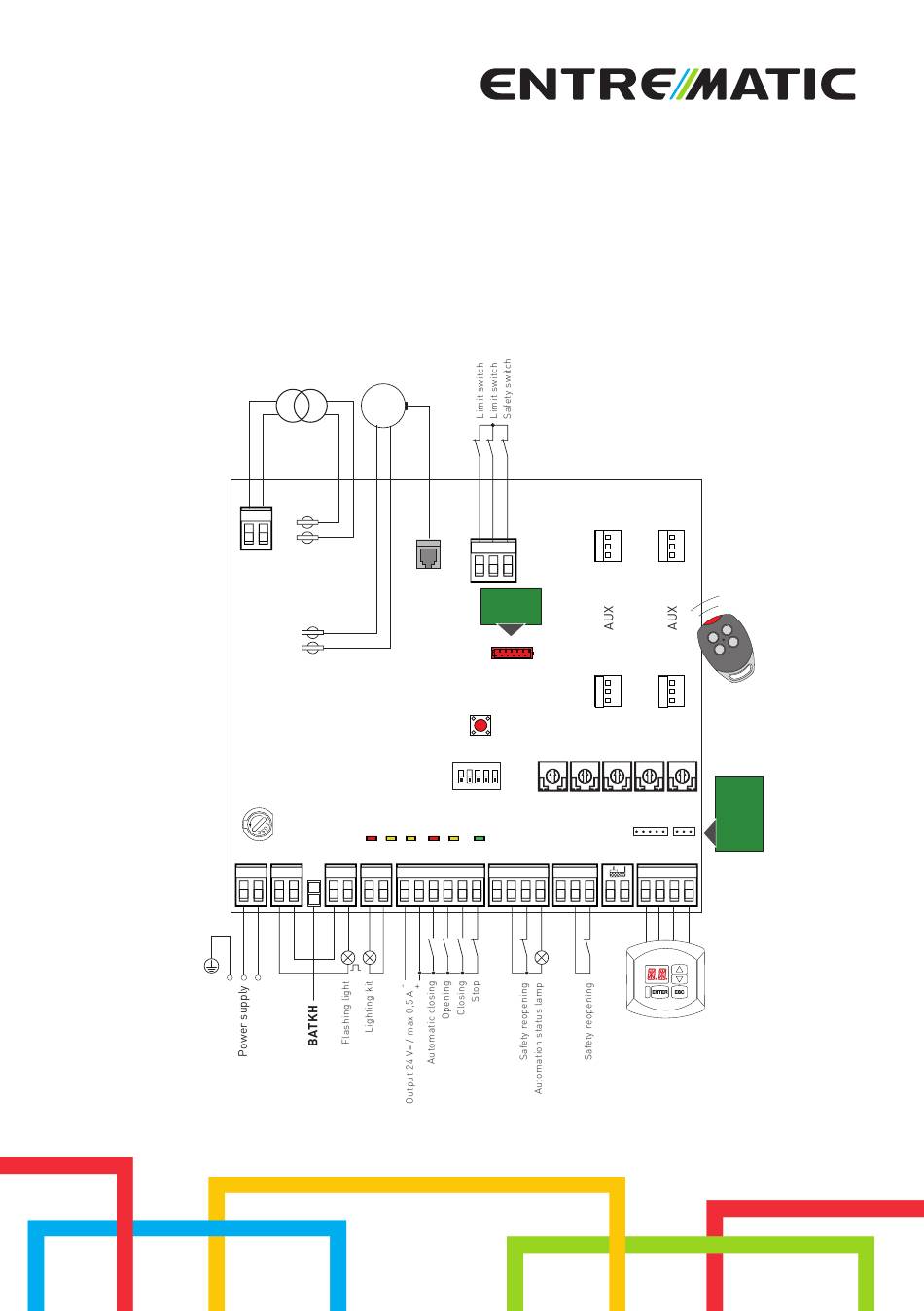

Control panel installation manual for QIK80EH barrier
(Original instructions)
Transformer
TRF
F1
L N
C NO
Motor
24V=
24V~
ENC
+
M
-
ON
1
POWER
SIG
12
11
SA
IN
ALARM
14 0
+G2-
0 1 2 3 4 9
BAT
www.ditecentrematic.com
12
11
0
BIXMR2
COM
PRG
VA
VC
TC
R1
2 3 4 5
0 1 G1 G3
0 1 8
0 1 21 22
IP2152EN
EL34
GOL4
CB
GOLR
RDX
MD2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Entrematic Ditec EL34
Summary of Contents for Entrematic Ditec EL34
- Page 1 Ditec EL34 IP2152EN Control panel installation manual for QIK80EH barrier (Original instructions) Transformer Motor 24V= EL34 24V~ BIXMR2 GOL4 GOLR 2 3 4 5 POWER ALARM C NO 14 0 +G2- 0 1 2 3 4 9 0 1 G1 G3...
-
Page 2: Table Of Contents
All the rights concerning this material are the exclusive property of Entrematic Group AB. Although the con- tents of this publication have been drawn up with the greatest care, Entrematic Group AB cannot be held responsible in any way for any damage caused by mistakes or omissions in this publication. -
Page 3: General Safety Precautions
1. General safety precautions “Important instructions for installation safety. Incorrect installation can cause serious injury” This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. Read the instructions carefully before installing the product. -
Page 4: Ec Declaration Of Conformity
2. EC Declaration of Conformity The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Land- skrona, Sweden, declares that the Ditec EL34 type control panel complies with the conditions of the following EC directives: EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC R&TTE Directive 1999/5/EC... -
Page 5: Commands
4. Commands Command Function Description N.O. AUTOMATIC Permanently closing the contact enables automatic closing. CLOSING N.O. OPENING With DIP1=ON, closing the contact activates an opening opera- tion. STEP-BY-STEP With DIP1=OFF, closing the contact activates an opening or clos- ing operation in the following sequence: opening-stop-closing- opening. -
Page 6: Outputs And Accessories
5. Outputs and accessories Output Value - Accessories Description Accessories power supply. Power supply output for external accessories, including automa- 24 V 0,5 A tion status lamps. The control panel is fitted with two housings for plug-in cards such as radio receivers, magnetic loops, etc. AUX1 SOFA1-SOFA2 Operating of the plug-in card is selected using DIP1. -
Page 7: Settings
Output Value - Accessories Description Barrier operation. The batteries are kept charged when the power supply is on. If the power supply is off, the panel is powered by the batteries until the power is re-establish or until the battery voltage drops below the BATKH safety threshold. -
Page 8: Dip-Switches
6.2 Dip-switches Description DIP1 Command functions 1-3. Step-by-step. Opening. N.B.: also sets operating of the plug-in cards connected on AUX1, AUX2 and RDX. DIP2 Selecting opening direction. Opening to the right. Opening to the left. The opening direction is intend- ed by viewing the automation from the side being examined. -
Page 9: Radio
7. Radio Receiver 10 s The control panel is equipped with a radio receiver with a frequency of 433.92 MHz. The antenna consists of a rigid wire, 173 mm long, connected to the ANT clamp. It is possible to increase the range of the radio by connecting the antenna of the flashing lights, or by installing the tuned BIXAL antenna. -
Page 10: Jumper
8. Start-up WARNING: The operations in point 5 are performed without safety devices. The trimmers can only be adjusted with the automation idle. The automation automatically slows when approaching the stops. • Make a jumper for NC safety contacts. • Move the bar into the opening and closing position by hand. -
Page 11: Troubleshooting
9. Troubleshooting Problem Possible causes Operation The automation does not open No power. Check that the control panel is pow- or close. (POWER ALARM LED off). ered correctly. Short circuited accessories. Disconnect all accessories from ter- (POWER ALARM LED off). minals 0-1 (a voltage of 24V= must be present) and reconnect them one at a time. -
Page 12: Example Of Application For Parallel Automations
10. Example of application for parallel automa- tions With these settings, an obstacle during closing will cause both barriers to reopen. An obstacle during opening will cause only the barrier involved to stop. 2 3 4 5 2 3 4 5 0 1 2 3 4 9 0 1 G1 G3 0 1 8... -
Page 13: Example Of Application For Automations With Two-Way Interlocking Device Without Pres
11. Example of application for automations with two-way interlocking device without presence detection With these connections and settings, command 1-3 starts an opening operation of barrier A (or B) which closes after the time set with TC. When time TO elapses, barrier B will open and will close after the time set with TC. - Page 14 12. Example of application for automations with one-way interlocking device with presence detection With these connections and settings, command 1-3 starts an opening operation of barriers. Automatic closing will only be enabled when the vehicle activates the detection device. Limit switch Limit switch Limit switch Limit switch...
- Page 15 13. Example of application for automations with two-way operating mode with vehicle direc- tion detection. With these settings, the control panel recognises vehicles as they enter and disa- bles the AUX1 command for the set period TO; The counter starts when command 1-8 is released, after command 1-3 is given.
- Page 16 Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.ditecentrematic.com...
