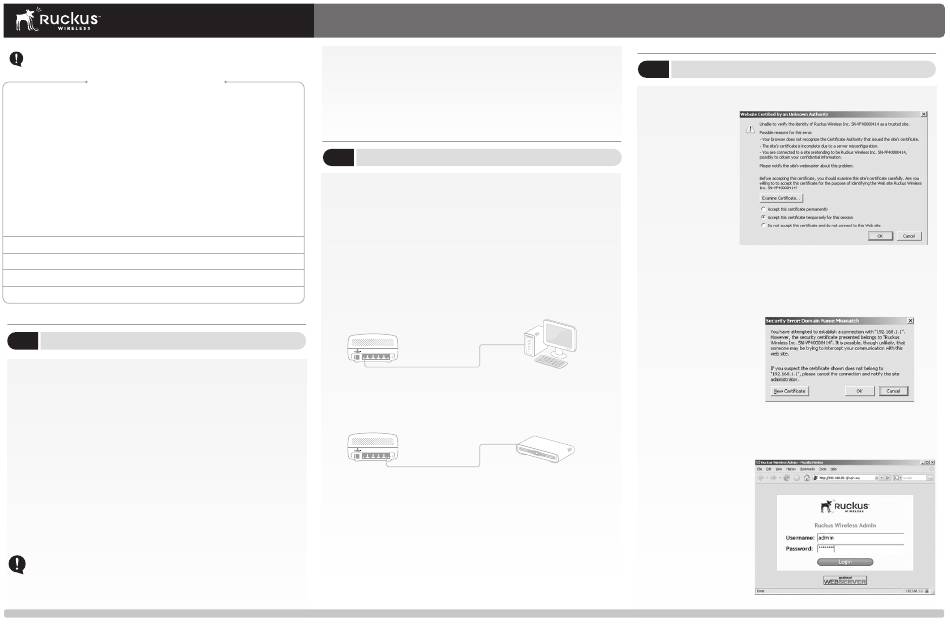

Ruckus Wireless MediaFlex NG Quick Installation Manual

Quick Installation Guide
IMPORTANT: The full Ruckus Wireless MediaFlex NG User Manual is
available at: http://support.ruckuswireless.com/documents
WHAT'S INSIDE THE BOX
• Ruckus VF2825 5-port multimedia wireless router
• AC power adapter
• Category 5 Ethernet cable
• Quick installation guide (this document)
• SupportMinds support card (for additional technical support)
BEFORE YOU BEGIN
Your Ruckus MediaFlex NG is a full-function wireless router and has a basic default
configuration (see table). However, if you wish to change any of the default parameters
such as SSID (network name), encryption type, encryption key, password, etc., you
must log into the device.
PLEASE NOTE: If you have a connection that requires you to configure a static IP address
or a type of connection that requires a PPPoE username and password, you must log into
the Ruckus MediaFlex NG SETTINGS -> NETWORK to configure these parameters.
Network Name (SSID)
Security
IP Addressing 192.168.20.1 (router LAN ports)
Username/Password Username: admin
1
PREPARE YOUR COMPUTER
Perform one of the following procedures on your PC/laptop based on the
operating system you are running:
Windows 2000:
1. Click START and choose SETTINGS -> NETWORK AND DIAL-UP
CONNECTIONS to open the control panel. When the Network and
Dial-up Connections dialog box appears, proceed to Step 2.
Windows XP:
1. Click START and choose SETTINGS -> CONTROL PANEL. (Note: If the
"PICK A CATEGORY" dialog box appears, click "Switch to Classic View".)
2. Within the CONTROL PANEL dialog box, double-click NETWORK
CONNECTIONS.
3. Within the NETWORK CONNECTIONS dialog box, right-click on the
LOCAL AREA CONNECTION icon and choose Properties.
ALERT! Make sure you do not open the Properties dialog box for the
wireless network.
MediaFlex NG
4. Within the LOCAL AREA NETWORK CONNECTION dialog box, scroll
down to Internet Protocol (TCP/IP) and double-click on it to bring up the
Properties for this setting.
5. Select the radio button marked OBTAIN an IP ADDRESS AUTOMATICALLY
then click OK to close the dialog box. Then click OK to close the LOCAL
AREA CONNECTIONS Properties dialog box.
2
CONNECT THE RUCKUS MEDIAFLEX NG TO YOUR PC
Before beginning this step, ensure that your PC is configured to obtain an
IP address automatically (see Step 1) and that you have the setup information
for your specific type of Internet connection (e.g., PPPoE or DHCP). If not,
contact your ISP to request the settings (e.g., PPPoE login/password or static
IP address).
V54-HOME001
1.
Power off all network hardware, including your broadband gateway, PCs,
cable or DSL modems.
Disabled
192.168.0.1 (router WAN port)
2. Connect one end of an Ethernet cable to the LAN port labeled "1" on the
back of the Ruckus MediaFlex NG and connect the other end of the cable
Password: password
to your PC.
3. Connect another Ethernet cable from the WAN port (the farthest right) on
the Ruckus MediaFlex NG to your cable or DSL modem.
4. Power on your cable or DSL modem.
5. Connect the power cable to the Ruckus MediaFlex NG.
6.
After approximately 60 seconds, check to see that the far two left LEDs
on the Ruckus MediaFlex NG are illuminated solid green (if not, repeat
Step 2).
802.11 Wireless Multimedia Router
b/g
MediaFlex
MediaFlex modem
3
CONFIGURE THE RUCKUS MEDIAFLEX NG
1. Open your Web
brower and enter:
http://192.168.20.1
into the address
field (bar).
2. Depending on the
type of browser
used, a "Certificate
Warning" dialog
box may appear,
click OK to proceed
3. A second "Domain
Warning" dialog box
PC
may appear, click OK
to proceed.
DSL
4.
A Ruckus log-in
page will appear.
To proceed, enter
"admin" in the user
field and "password"
in the password field
(omitting quotation
marks).
Model VF2825
