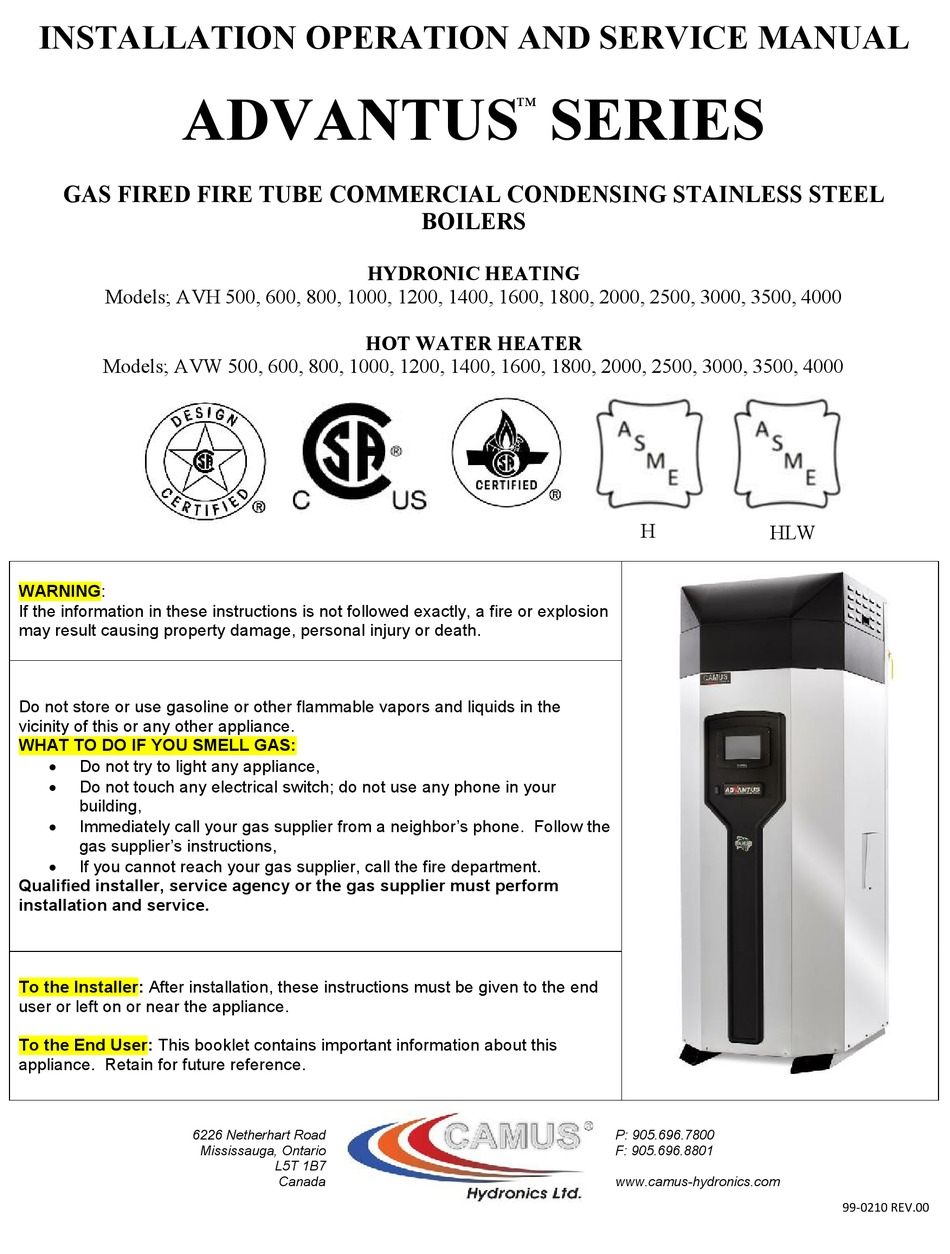

INSTALLATION OPERATION AND SERVICE MANUAL
ADVANTUS SERIES
GAS FIRED FIRE TUBE COMMERCIAL CONDENSING STAINLESS STEEL
Models; AVH 500, 600, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3000, 3500, 4000
Models; AVW 500, 600, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2500, 3000, 3500, 4000
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance,
Do not touch any electrical switch; do not use any phone in your
building,
Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions,
If you cannot reach your gas supplier, call the fire department.
Qualified installer, service agency or the gas supplier must perform
installation and service.
To the Installer: After installation, these instructions must be given to the end
user or left on or near the appliance.
To the End User: This booklet contains important information about this
appliance. Retain for future reference.
6226 Netherhart Road
HYDRONIC HEATING
HOT WATER HEATER
Mississauga, Ontario
L5T 1B7
Canada
™
BOILERS
H
HLW
P: 905.696.7800
F: 905.696.8801
www.camus-hydronics.com
99-0210 REV.00
