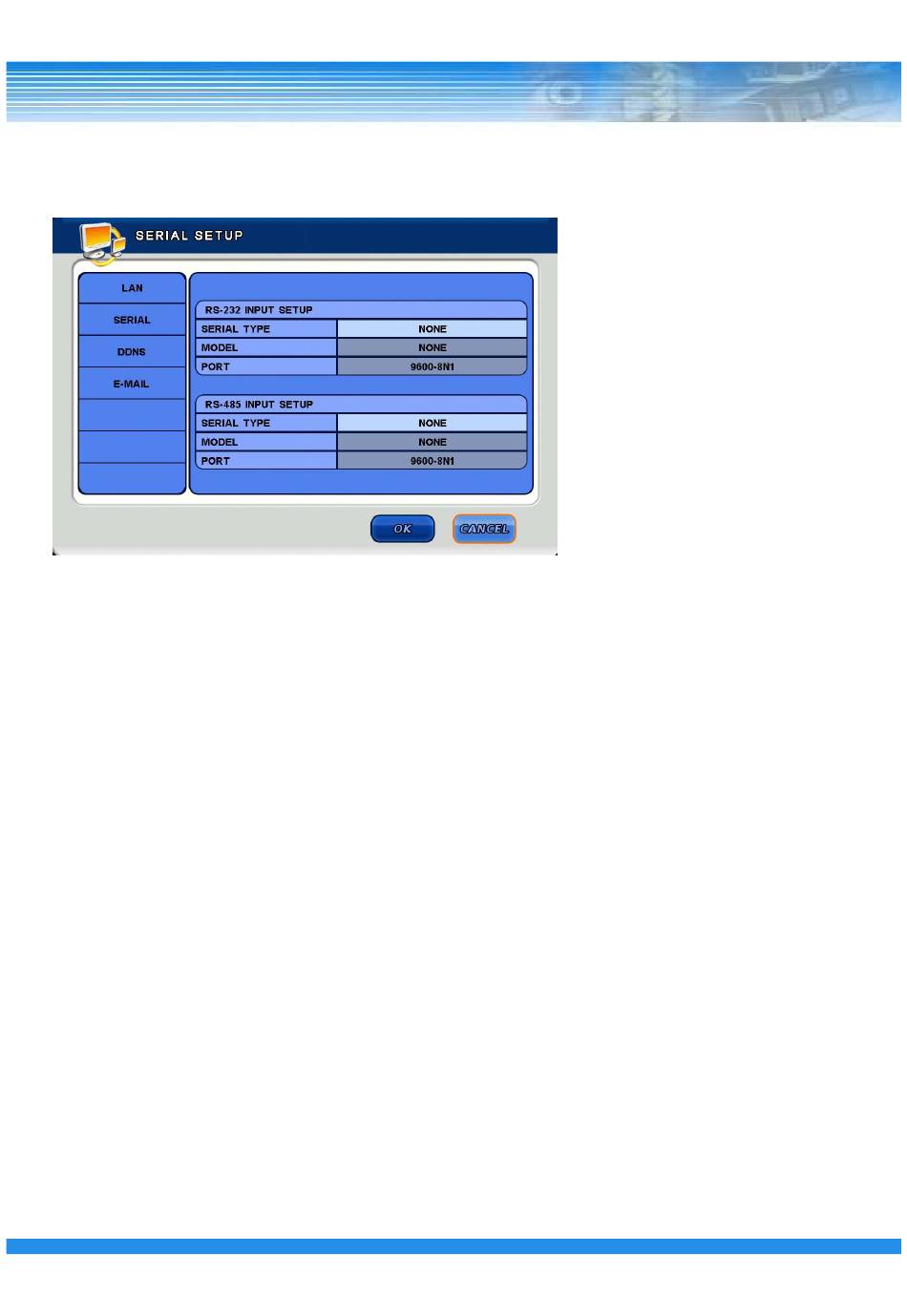

5.5.2 SERIAL

[RS-232 INPUT SETUP]
▪ SERIAL TYPE : Select external device.
▪ MODEL : Select the protocol to use.
▪ PORT : Select the Baud Rate / DATA bit / Parity / Stop Bit.
[RS-485 INPUT SETUP]
▪ SERIAL TYPE : Select external device.
▪ MODEL : Select the protocol to use.
▪ PORT : Select the Baud Rate / DATA bit / Parity / Stop Bit.
49
