Panduit PANTHER LS8E Quick Reference Card

P T LS8E
™
AN HER
Quick Reference Card
Printer Tech Support – 866-871-4571
Rev. 3 – 02/06/15
LS8E Display Screen
1) Caps Lock 6) Mode 5) Line size
Indicator Indicator Indicator
2) Label
Lines
3) Page
Indicator
4) Rotation and
Justification
Indicator

LS8E Tools Menu

• Serialization
• Symbol
• Data List
• Bar Code
• Date
• Time

LS8E Printer and Accessories

Part No. Description
LS8E-KIT Includes LS8E printer, 1 cassette of
S100X150VAC, 6 AA batteries, rigid carrying
case, LS8-PCKIT, LS8-IB, LS8-WS, and
printed operator's manual in English.
LS8E Includes LS8E printer, 1 cassette of
S100X150VAC, and 6 AA batteries
LS8E-ACS* 120 VAC power adapter for North America
LS8E-ACA* 120 - 240 VAC power adapter for Australia
LS8E-ACC* 120 - 240 VAC power adapter for China
LS8E-ACE* 120 - 240 VAC power adapter for Europe
LS8E- 120 - 240 VAC power adapter for the United
ACU* Kingdom
LS8-PCKIT Includes USB cable and CD with
P T L
™ software and LS8 operator's
AN HER INK
manual.
LS8-IB Protective impact bumper
LS8-WS Wrist strap
LS8-CLN Cleaning kit
*Cannot be used to charge batteries
P1 ™ Label Cassettes
• Print self-laminating labels, heat shrink tubing,
die-cut component labels, and continuous
tapes
• Fast loading cassettes include labels and ribbon
• Automatic cassette recognition adjusts printer
settings upon insertion
• Integrated memory device saves last legend
used for later recall and records number of
labels remaining
1

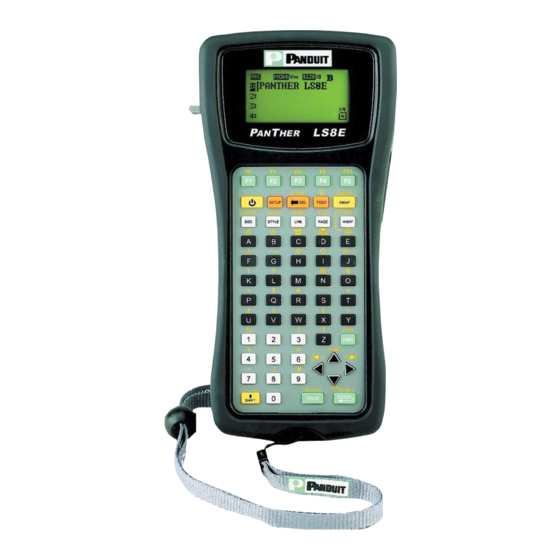

LS8E Keypad Functions

14) Delete
1) Setup
2) Power
3) Size
4) Letters
5) Numbers
6) Shift 7) Space
5
P1 ™ Label Cassettes
Label Example Part
Material No.
Self- S100X150VAC
Laminating
Vinyl*
Heat Shrink H000X044H1C
Polyolefin^
Vinyl Cloth N100X125CBC
Adhesive C200X100YJC
Polyester
Non- C390X030Y1C
Adhesive
Polyester
Polyolefin T031X000FJC-BK
Colored T100X000VXC-BK
Vinyl*
* Available in a variety of colors.
^ Available in white and yellow.
2
Text Font Size
Point Size Print Sample
13) Feed
4
ABC
6
ABC
12) Print
8
ABC
10
ABC
11) Insert
Tools
12
ABC
16
ABC
ABC
24
ABC
36
10) Label
Mode
AB
48
9) Arrows
8) Enter
6

Getting Started

Typical
• Remove battery door on back of printer.
Application
• Install 6 AA batteries according to the molded
Wire/Cable indicators in the battery compartment.
marking
Do not install batteries incorrectly. Doing so
Wire/Cable
may cause damage to the printer electronics.
marking
When replacing batteries, replace all 6 of them
at the same time.
Wire/Cable
marking
• Reinstall the battery door.
General
• Remove cassette door on back of printer.
component
• Install the label cassette. Press firmly to lock
labeling
cassette in place. The printer will power on
Network
automatically.
systems
• Reinstall cassette door.
component
• Move print head latch to locked position.
labeling
Network
You are now ready to begin printing!
systems
component
labeling and
terminal block
labeling
Safety/Facility
identification
Cutter Button
3
Point Size
A
72
Text Font Style
NORMAL
NORMAL + UNDERLINED
BOLD
BOLD + UNDERLINED
Change text style for all characters at once or just
for characters to be inserted next.
7
Print Head Latch
4
Print Sample
8
