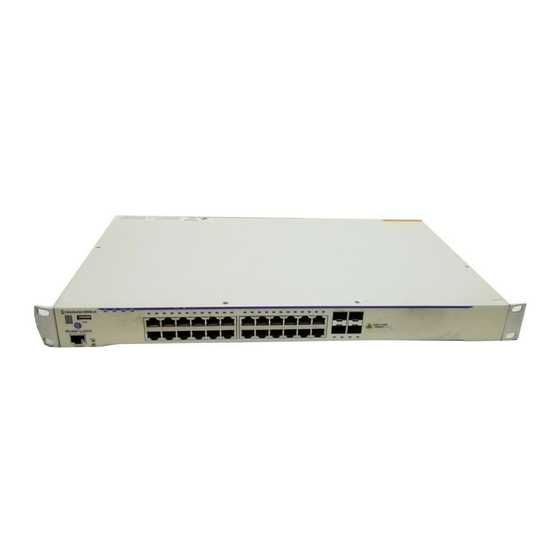

20 x 10/100/1000 + 4 x combo gigabit sfp + 2 x 10 gigabit sfp+
Hide thumbs Also See for OmniSwitch 6850E:
Table of Contents

Advertisement

Quick Links

See also: Manual
This release notes accompany release 6.4.6.R01 software for the OmniSwitch 6850E/6855/9000E
hardware. The release notes provides important information on individual software features and
hardware modules for the current release and related previous releases. Since much of the information
in this release notes is not included in the hardware and software user manuals, it is important that you
read all sections of this document before installing new hardware or loading new software.
Note: The OS6400 is not supported in Release 6.4.6.R01.
ATTENTION: Please refer to the
information prior to upgrading or incorporating a switch with AOS release 6.4.6.R01.
OmniSwitch AOS 6.4.6.R01 Release Notes
Part Number 032886-10 Rev. A
Release Notes
OmniSwitch 6850E/6855/9000E
6.4.6.R01 Prerequisite
Release 6.4.6.R01
section for important release specific
Page 1 of 80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OmniSwitch 6850E and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel-Lucent OmniSwitch 6850E

Summary of Contents for Alcatel-Lucent OmniSwitch 6850E

  • Page 1 OmniSwitch 6850E/6855/9000E Release 6.4.6.R01 This release notes accompany release 6.4.6.R01 software for the OmniSwitch 6850E/6855/9000E hardware. The release notes provides important information on individual software features and hardware modules for the current release and related previous releases. Since much of the information in this release notes is not included in the hardware and software user manuals, it is important that you read all sections of this document before installing new hardware or loading new software.

  • Page 2: Table Of Contents

    Appendix B: AOS 6.4.6.R01 Auto-FPGA Upgrade Instructions (OS6850E Only) ....... 51 Appendix C: AOS 6.4.6.R01 Downgrade Instructions ................59 Appendix D: Required Minimum Uboot for Modules with New Flash Component ......67 Appendix E: Previous Release Features and Enhancements ..............69 Page 2 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 3: Related Documentation

    November 2013 Related Documentation This release notes should be used in conjunction with the OmniSwitch 6850E, 6855, and 9000E user manuals. The following are the titles and descriptions of the user manuals that apply to this release. User manuals can be downloaded at: http://enterprise.alcatel-lucent.com/?dept=UserGuides&page=Portal...
  • Page 4 November 2013 AOS Release 6.4.6.R01 Release Notes • Upgrade Instructions for 6.4.6.R01 Provides instructions for upgrading the OmniSwitch 6850E, 6855, and 9000E to 6.4.6.R01 (Included in this document). • Technical Tips, Field Notices Contracted customers can visit our customer service website at: service.esd.alcatel-lucent.com.

  • Page 5: System Requirements

    System Requirements Memory Requirements • OmniSwitch 6850E Series Release 6.4.6.R01 requires 512 MB of SDRAM and 128 MB of flash memory. This is the standard configuration shipped. • OmniSwitch 6855 Series Release 6.4.6.R01 requires 256 MB of SDRAM and 128 MB flash memory.
  • Page 6 6.4.5.398.R02 6.4.5.398.R02 OS6850E-C24/P24/C48/P48 (10 or 11) OS6850E-U24X (7 or 8) Note: CPLD version 17 is shipped for OS6850E-C24/P24/C48/P48 by factory default. CPLD version 12 is shipped for OS6850E-U24X by factory default. OmniSwitch 6850E with OS-BPS Release Miniboot.uboot UBoot CPLD 6.4.6.125.R01 6.4.5.398.R02...

  • Page 7: Supported Hardware/Software Combinations

    OS6850E-P24X 902935 supported supported supported OS6850E-48 902938 supported supported supported OS6850E-P48 902932 supported supported supported OS6850E-48X 902939 supported supported supported OS6850E-P48X 902933 supported supported supported OS6850E-U24X 902940 supported supported supported OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 7 of 80...

  • Page 8: New Hardware Supported

    Transceiver Now supported on OS9-XNI-U12E, OS6850E , OS6850E-U24X. iSFP-GIG-EZX Transceiver Now supported on OS9-GNI-U24E, OS6850E, OS6850E-U24X. iSFP-GIG-BX-D/U Transceiver Now supported on OS9-GNI-U24E, OS6850E, OS6850E-U24X. iSFP-10G-ER Transceiver Now supported on OS9-XNI-U12E, OS6850E, OS6850E-U24X. Page 8 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 9: R01 New Software Features And Enhancements

    - Case sensitive MAC address Base - HIC HTTPS Web redirection Base VRF Features : - IP Helper per-VLAN / per-VRF Base Application Fluency : - mDNS Relay Base - VDI Support Base OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 9 of 80...
  • Page 10 - Clearpass and Access Guardian Integration Base - Change of Authorization (CoA) - Port Bounce and URL redirect Additional Features: - 802.1q Capability on NNI ports Base - Autoboot Interruption 6850E/6855 Base - Control packet tunneling enhancement Base Page 10 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 11 PoE class in which the powered device is detected. • If the port is manually configured with a maximum power value, the powered device cannot receive more power than the maximum configured value. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 11 of 80...
  • Page 12 It is recommended to create a back-up of the configuration file before using this feature. If remote access to the switch is lost (i.e Telnet, SSH, Webview) contact customer support to restore the access. Note: This feature applies to the primary console port, the secondary port remains active. Page 12 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 13: Monitoring/Troubleshooting Features

    RADIUS Server, these octets are converted into multiples of 4GB and will be sent in Acct-Input- Gigawords (type-52) and Acct-Output-Gigawords (type -53) attributes. For every 4GB traffic, the value is incremented and the remaining amount of traffic is displayed in Acct-Input-Octets and Acct-Output-Octets attribute. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 13 of 80...
  • Page 14 (for example, within the company network or out on the Internet), multicast address boundaries can be configured. AOS supports configuration of multicast route boundaries for the entire multicast group including scoped multicast addresses (224.0.0.0 through 239.255.255.255). Page 14 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 15 Maximum bandwidth policies are applied to source (ingress) ports and/or flows. This applies to flows that involve more than one port. Based on the rate limit mode set on the port group, the maximum bandwidth is applied. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 15 of 80...
  • Page 16 Bonjour messages to the WLAN controller thus preventing flooding of the mDNS frames. Note: mDNS relay is only supported for wirless clients. Wired clients are not supported. Page 16 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 17 November 2013 Bring Your Own Device (BYOD) The Alcatel-Lucent OmniSwitch implementation of BYOD leverages the Aruba ClearPass Policy Manager (CPPM) and Access Guardian features on the OmniSwitch. It allows guest acces or onboarding of both wired or wireless devices such as employee, guest, employee owned or silent devices through an OmniSwitch edge device with ClearPass as a RADIUS server or RADIUS proxy.
  • Page 18 The standard VLAN configuration (both untagged and 802.1q tagged association) is now allowed on an NNI interface binded with a service VLAN. The binding of service VLAN to NNI interface is now allowed when the interface (physical or linkagg) is already tagged with a standard VLAN. Page 18 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 19 Note : Hardware tunneling is supported only if the action (peer/tunnel/drop) is set for all the packet types pertaining to the tunnel grouping. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 19 of 80...

  • Page 20: Snmp Traps

    An entConfigChange notification is generated when a conceptual row is created, modified, or deleted in one of the entity tables. aipAMAPStatusTrap The status of the Alcatel-Lucent Mapping Adjacency Protocol (AMAP) port changed. aipGMAPConflictTrap This trap is not supported. policyEventNotification The switch notifies the NMS when a significant event happens that involves the policy manager.
  • Page 21 This trap is sent whenever a managed interface MAU enters the jabber state. sessionAuthenticationTrap An authentication failure trap is sent each time a user authentication is refused. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 21 of 80...
  • Page 22 6400 The element identified by alaStack- 6850 MgrSlotNINumber will enter the pass through 6850E mode because its operational slot was cleared 6855 with immediate effect. Page 22 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 23 When an LPS port joins or is enabled after the Learning Window is expired, the MAC address learning on the port will be disabled, and this trap is generated as a notification. vRtrIsisDatabaseOverload This notification is generated when the system OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 23 of 80...
  • Page 24 0 LSP is received that has no matching protocols supported. vRtrIsisAdjacencyChange A notification sent when an adjacency changes state, entering or leaving state up. The first 6 bytes of the vRtrIsisTrapLSPID are the SystemID of the adjacent IS. Page 24 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 25 The OS6400 will not generate new ARP request for new nexthops. ndpMaxLimitReached This IPv6 Trap is sent when the hardware table has reached the maximum number of entries supported. The OS6400 will not generate new OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 25 of 80...
  • Page 26 9000E This trap is sent when the value of aluLicenseTimeRemaining becomes 0 (zero) for a demo licensed application. This notification is Page 26 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 27 This trap is sent when the agent has finished processing an SDP state change event, and that the operating status of all the affected SDP Bindings has been updated accordingly. unused unused unused OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 27 of 80...
  • Page 28 This trap is sent when given port of the link aggregation goes to reserved state. esmViolationRecoveryTimeout This trap is sent when a user port is re-enabled after an esm viola-tion recovery timeout. Page 28 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 29 This trap is sent when at least one of the HIC servers comes UP. alaLldpTrustViolation This trap is sent when there is an LLDP Trust Violation, and gives the reason for the violation. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 29 of 80...
  • Page 30 This trap is sent when any further temperature increase will cause POE power budget rampdown. alaDBChange alaStackMgrIncompatibleLicenseTrap This trap is snt when the license information for a slot is not the same as the primary element license information Page 30 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 31 This trap is sent when the STP status for some VLANs on the Virtual Fabric Link is in a blocking state. multiChassisLoopDetected OS9000E This trap is sent when a loop is detected over the multi-chassis aggregates. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 31 of 80...
  • Page 32 Reserved51 esmPollBasedLinkScanTrap Started polling based link scanning on the slot. Suspected spurious link change interrupts. multiChassisConsisFailureRecovered OS9000E Trap indicating the system has recovered from a multi-chassis inconsistency between the local and peer switches. Page 32 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 33 OS6850E This trap is sent when an element of the stack enters into Protection state. alaStackSplitRecoveryTrap OS6850E This trap is sent when an element of the stack recovers from the Protection state. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 33 of 80...

  • Page 34: Unsupported Software Features

    These features are not supported in AOS Release 6.4.6.R01: Feature Platform Software Package OSPF Database Overflow (RFC 1765) base Authenticated VLANs OS9000E base Legacy VLAN Stacking Mode base Binding Rules OS9000E base Page 34 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 35: Unsupported Cli Commands

    OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 35 of 80...
  • Page 36 Tunneling L2 Protocols ethernet-service uni-profile P l2-protocol [STP | GVRP]peer Page 36 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 37: Open Problem Reports And Feature Exceptions In Release 6.4.6.R01

    The problems listed here include problems known at the time of the product’s release. Any problems not discussed in this section should be brought to the attention of the Alcatel-Lucent Technical Support organization as soon as possible. Please contact customer support for updates on problem reports (PRs) where no known workaround was available at the time of release.
  • Page 38 There is no known workaround at speed SFP on combo ports back to back and the port this time. speed is configured to 100mbps. After saving the configuration and rebooting the port speed returns to 1-Gig. Page 38 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 39 All insertions of NI modules cannot be followed by another hot swap activity until the OK2 LED on the inserted NI blinks green. Hot Swap Feature Exceptions for OmniSwitch 6850E/6855 • When removing modules from the stack (powering off the module and/or pulling out its stacking cables), the loop back stacking cable must be present at all times to guarantee redundancy.
  • Page 40 AOS Release 6.4.6.R01 Release Notes • All insertions of stack elements must be done one at a time and the inserted element must be fully integrated and operational as part of the stack before inserting another element. Page 40 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 41: Technical Support

    AOS Release 6.4.6.R01 Release Notes November 2013 Technical Support Alcatel-Lucent technical support is committed to resolving our customer’s technical issues in a timely manner. Customers with inquiries should contact us at: Region Phone Number North America 800-995-2696 Latin America 877-919-9526...

  • Page 42: Appendix A: Aos 6.4.6.R01 Upgrade Instructions

    Instructions OmniSwitch Upgrade Overview This section documents the 6.4.6.R01 upgrade requirements for the following OmniSwitch models: • OmniSwitch 6850E • OmniSwitch 6850E with OmniSwitch BPS • OmniSwitch 6855 • OmniSwitch 9000E Prerequisites This instruction sheet requires that the following conditions are understood and performed, BEFORE upgrading: •...
  • Page 43 OS6850E-U24X) need not upgrade FPGA/CPLD version when upgrading to AOS 6.4.6.RO1. Note: A minimum uboot/miniboot version is required to support the autoboot interupt feature in 6.4.6 R01, contact customer support for more details. Version Requirements – Upgrading to AOS Release 6.4.6.R01 OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 43 of 80...
  • Page 44 FPGA OmniSwitch 6850E K2os.img, Kadvrout.img kuboot.bin K2Efpga.upgrade_kit Kbase.img, Kencrypt.img, Keni.img, kminiboot.uboot Ksecu.img OmniSwitch 6855 K2Ios.img, Kadvrout.img, Kbase.img, kuboot.bin Kencrypt.img, Keni.img, Ksecu.img kminiboot.uboot OmniSwitch 9000E Jadvrout.img, Jbase.img, Jencrypt.img miniboot.uboot Jfpga.upgrade_kit Jeni.img, Jos.img, Jsecu.img u-boot.bin Page 44 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 45 Having a mix of FPGA/CPLD in the same stack or chassis is supported. • An OmniSwitch 6850E-U24X with CPLD version 8 will require a hard reboot (the switch must be physically powered down and back up) for any CPLD upgrade to take affect.
  • Page 46 ‘all’ parameter as shown below. Enter the following to begin the FPGA upgrade for all the elements of a stack. -> update fpga ni all The stack will upgrade the FPGA and reboot. Page 46 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 47 If you have a single CMM enter: -> copy working certified If you have redundant CMMs enter: -> copy working certified flash-synchro Proceed to to verify the upgrade procedure. Verify The Update OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 47 of 80...
  • Page 48 The display below shows a successful image file upgrade. -> show microcode Package Release Size Description ------------+---------------+--------+----------------------------- Kbase.img 6.4.6.125.R01 15510736 Alcatel-Lucent Base Software K2os.img 6.4.6.125.R01 2511585 Alcatel-Lucent OS Keni.img 6.4.6.125.R01 5083931 Alcatel-Lucent NI software Ksecu.img 6.4.6.125.R01...
  • Page 49 Power Control Checksum: 0x66b7, CPU Model Type Motorola MPC8248, MAC Address: 00:e0:b1:d3:09:01, ASIC - Physical 1: BCM56514_A0, FPGA - Physical 1: 0012/00, UBOOT Version : 6.4.5.398.R02, UBOOT-miniboot Version : 6.4.5.398.R02, POE SW Version : OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 49 of 80...
  • Page 50 These names and files will differ based on the type of switch and upgrade requirements. Issue the following command to remove the upgrade files. -> rm K2Efpga.upgrade_kit -> rm kuboot.bin -> rm kminiboot.uboot Page 50 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 51: Appendix B: Aos 6.4.6.R01 Auto-Fpga Upgrade Instructions (Os6850E Only)

    WARNING: Do not proceed until all the above prerequisites have been met and understood. Any deviation from these upgrade procedures could result in the malfunctioning of the switch. All steps in these procedures should be reviewed before beginning. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 51 of 80...
  • Page 52 OS6850E Auto-FGPA Upgrade Requirements These tables list the required Uboot/Miniboot, FPGA, and AOS combinations for upgrading an OmniSwitch 6850E. The Uboot/Miniboot versions for the associated AOS Release must at least be the miminum versions listed below. NOTE: In most cases an FPGA/CPLD or miniboot/uboot upgrade is not required when upgrading to 6.4.6.R01.
  • Page 53 Appendix A for the alternate upgrade procedure. • An OmniSwitch 6850E-U24X with CPLD version 8 will require a hard reboot (the switch must be physically powered down and back up) for any CPLD upgrade to take affect.
  • Page 54 1. Use the editor on the OmniSwitch or any text editor create and FTP the AlcatelDebug.cfg file to the /flash/working directory on the switch. 2. Certify and synchronize the CMMs. Contents of AlcatelDebug.cfg file: debug set auto_update_fpga_copper 17 debug set auto_update_fpga_u24x 12 debug set auto_update_fpga_retry 1 Page 54 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 55 DO NOT INTERRUPT the upgrade process until it is complete. Interruption of the process will result in an unrecoverable failure condition. 5. Reboot the switch. This will update both the Uboot/Miniboot and AOS. -> reload working no rollback-timeout OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 55 of 80...
  • Page 56 The display below shows a successful image file upgrade. -> show microcode Package Release Size Description ------------+---------------+--------+----------------------------- Kbase.img 6.4.6.125.R01 15510736 Alcatel-Lucent Base Software K2os.img 6.4.6.125.R01 2511585 Alcatel-Lucent OS Keni.img 6.4.6.125.R01 5083931 Alcatel-Lucent NI software Ksecu.img 6.4.6.125.R01...
  • Page 57 Power Control Checksum: 0x66b7, CPU Model Type Motorola MPC8248, MAC Address: 00:e0:b1:d3:09:01, ASIC - Physical 1: BCM56514_A0, FPGA - Physical 1: 0012/00, UBOOT Version : 6.4.5.398.R02, UBOOT-miniboot Version : 6.4.5.398.R02, POE SW Version : OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 57 of 80...
  • Page 58 These names and files will differ based on the type of switch and upgrade requirements. Issue the following command to remove the upgrade files. -> rm K2Efpga.upgrade_kit -> rm kuboot.bin -> rm kminiboot.uboot -> rm /flash/working/AlcatelDebug.cfg -> rm /flash/certified/AlcatelDebug.cfg Page 58 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 59: Appendix C: Aos 6.4.6.R01 Downgrade Instructions

    WARNING: Do not proceed until all the above prerequisites have been met and understood. Any deviation from these downgrade procedures could result in the malfunctioning of the switch. All steps in these procedures should be reviewed before beginning. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 59 of 80...
  • Page 60 AOS 6.X.X Downgrade Files Uboot/Miniboot FPGA OmniSwitch 6850E K2os.img, Kadvrout.img kuboot.bin K2Efpga.upgrade_kit Kbase.img, Kencrypt.img, Keni.img, kminiboot.uboot Ksecu.img OmniSwitch 6855 K2Ios.img, Kadvrout.img, Kbase.img, Kencrypt.img, Keni.img, Ksecu.img OmniSwitch 9000E Jadvrout.img, Jbase.img, Jencrypt.img Jeni.img, Jos.img, Jsecu.img Page 60 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 61 1. Downgrade the FPGA/CPLD, if required. (switch/stack automatically reboots) 2. Downgrade the Uboot/Miniboot (if required) and AOS images (Reboot required) 3. Verify the downgrade and remove the downgrade uboot/miniboot and CPLD files from the switch. OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 61 of 80...
  • Page 62 ‘all’ parameter as shown below. Enter the following to begin the FPGA downgrade for all the elements of a stack. -> update fpga ni all The stack will downgrade the FPGA and reboot. Page 62 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 63 -> reload working no rollback-timeout 6. Once the switch reboots, certify the downgrade: If you have a single CMM enter: -> copy working certified If you have redundant CMMs enter: -> copy working certified flash-synchro OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 63 of 80...
  • Page 64 The display below shows a successful image file downgrade. -> show microcode Package Release Size Description ------------+---------------+--------+----------------------------- Kbase.img 6.4.5.402.R02 15510736 Alcatel-Lucent Base Software K2os.img 6.4.5.402.R02 2511585 Alcatel-Lucent OS Keni.img 6.4.5.402.R02 5083931 Alcatel-Lucent NI software Ksecu.img 6.4.5.402.R02 597382 Alcatel-Lucent Security Management Page 64 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 65 Power Control Checksum: 0x66b7, CPU Model Type Motorola MPC8248, MAC Address: 00:e0:b1:d3:09:01, ASIC - Physical 1: BCM56514_A0, FPGA - Physical 1: 0008/00, UBOOT Version : 6.4.5.398.R02, UBOOT-miniboot Version : 6.4.5.398.R02, POE SW Version : OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 65 of 80...
  • Page 66 These names and files will differ based on the type of switch and downgrade requirements. Issue the following command to remove the downgrade files. -> rm K2Efpga.upgrade_kit -> rm kuboot.bin -> rm kminiboot.uboot Page 66 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...

  • Page 67: Appendix D: Required Minimum Uboot For Modules With New Flash Component

    Please review the upgrade instructions prior to upgrading to AOS Release 6.4.6.R01. Note: If one of the modules listed below is downgraded to an unsupported Uboot version it must be returned to Alcatel-Lucent for repair. Identifying the New Modules: New 9000 level part number as listed below.
  • Page 68 Identifying a module with an incorrect uboot In the event that a module is mistakenly downgraded use the error log information below to help identify it. The module must be returned to Alcatel-Lucent for repair. OK1/OK2 LEDs The OK1 and OK2 LEDs will be off.

  • Page 69: Appendix E: Previous Release Features And Enhancements

    - Increase system name to 254 base - Improved Captive Portal Performance 6850E/6855/9000E base Metro Ethernet Features: - L2 control protocol (SW version) enhancement base - CPE Test Head 6400/6850E/6855- base OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 69 of 80...
  • Page 70 - Configurable reauthentication / refresh timer secu - LPS sticky mode without learning windows 6850E/6855/9000E secu VRF Features : - VRF Route Leak 6850E/6855/9000E base - PIM SSM static map 6850E/6855/9000E base Page 70 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 71 - Minimum LAG size base LLDP - Rogue Detection base 6850E base OmniSwitch 6850E Stack Mode In 6850 Mode – Supports same software features as OS6850 In 6850E Mode – Supports same software features as 6855-U24X (VRF/egress policies) Power Over Ethernet...
  • Page 72 November 2013 AOS Release 6.4.6.R01 Release Notes Feature Platform Software Package Spanning Tree - STP Loop Guard base VLAN-based Ingress Source Filtering / Dynamic base ARP Inspection base Web Cache Communication Protocol (WCCP) Page 72 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 73 - Non-unicast Load Balancing on Link Aggregation base - Active-Stand by Dual Home LinkAgg base LLDP Network Policies base - Voice Vlan Support base - Voice Application Support base MAC-Forced Forwarding (RFC 4562) base OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 73 of 80...
  • Page 74 Security - BPDU Shutdown Auto-Recovery Timer base - Admin User Remote Access Restriction Control base Storm Control - Extended Flood Control Metering for Unknown base Unicast, Multicast and Broadcast base USB Support Page 74 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 75 - G.8032 Ethernet Ring Protection OS9000E base - IPsec Support for IPv6 OS9000E base/encrypt - IPsec Support for OSPF3 OS9000E base/encrypt - IPsec Support for RIPng OS9000E base/encrypt - IPv6 Unique Local IPv6 Unicast OS9000E base OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 75 of 80...
  • Page 76 BGP Graceful Restart OS6850/OS6855/OS9000/9000E advanced routing BGP4 OS6850/OS6855/OS9000/9000E advanced routing BPDU Shutdown Ports base Command Line Interface (CLI) base DHCP - Option-82 base - Option 82 – Port-based format OS6400/OS6850/OS6855 base - DHCP Relay base Page 76 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 77 IPsec Support for OSPF3 OS6850/OS6855/OS9000/OS9000E base / encrypt IPsec Support for RIPng OS6850/OS6855/OS9000/OS9000E base / encrypt IPv6 -Unique Local IPv6 Unicast Addresses OS6850/OS6855/OS9000/OS9000E advanced routing -IPv6 Scoped Multicast Addresses OS6850/OS6855/OS9000/OS9000E advanced routing OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 77 of 80...
  • Page 78 - Client base - Server base OSPFv2 OS6850/OS6855/OS9000/9000E advanced routing OSPFv3 OS6850/OS6855/OS9000/9000E advanced routing Pause Control/Flow Control base Port Mapping – Unknown Unicast Flooding base Partitioned Switch Management base Pause Control/Flow Control base Page 78 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
  • Page 79 - Disable MAC learning per VLAN OS6400/OS6855-U24X/OS9000E base - Disable MAC learning per port base Spanning Tree base SSH Public Key Authentication base Switch Logging base Syslog to Multiple Hosts base Text File Configuration base OmniSwitch 6850E/6855/9000E------ Release 6.4.6.R01 Page 79 of 80...
  • Page 80 - UDP/DHCP Relay VRRP Global Commands OS6850/OS6855/OS9000/OS9000E base VRRPv2 OS6850/OS6855/OS9000/OS9000E base VRRPv3 OS6850/OS6855/OS9000/OS9000E base Web-Based Management (WebView) base Webview/SNMP support for BGP IPv6 OS6850/OS6855/OS9000/OS9000E advanced routing Extensions Windows Vista for WebView base Page 80 of 80 OmniSwitch 6850E/6855/9000E—Release 6.4.6.R01...
