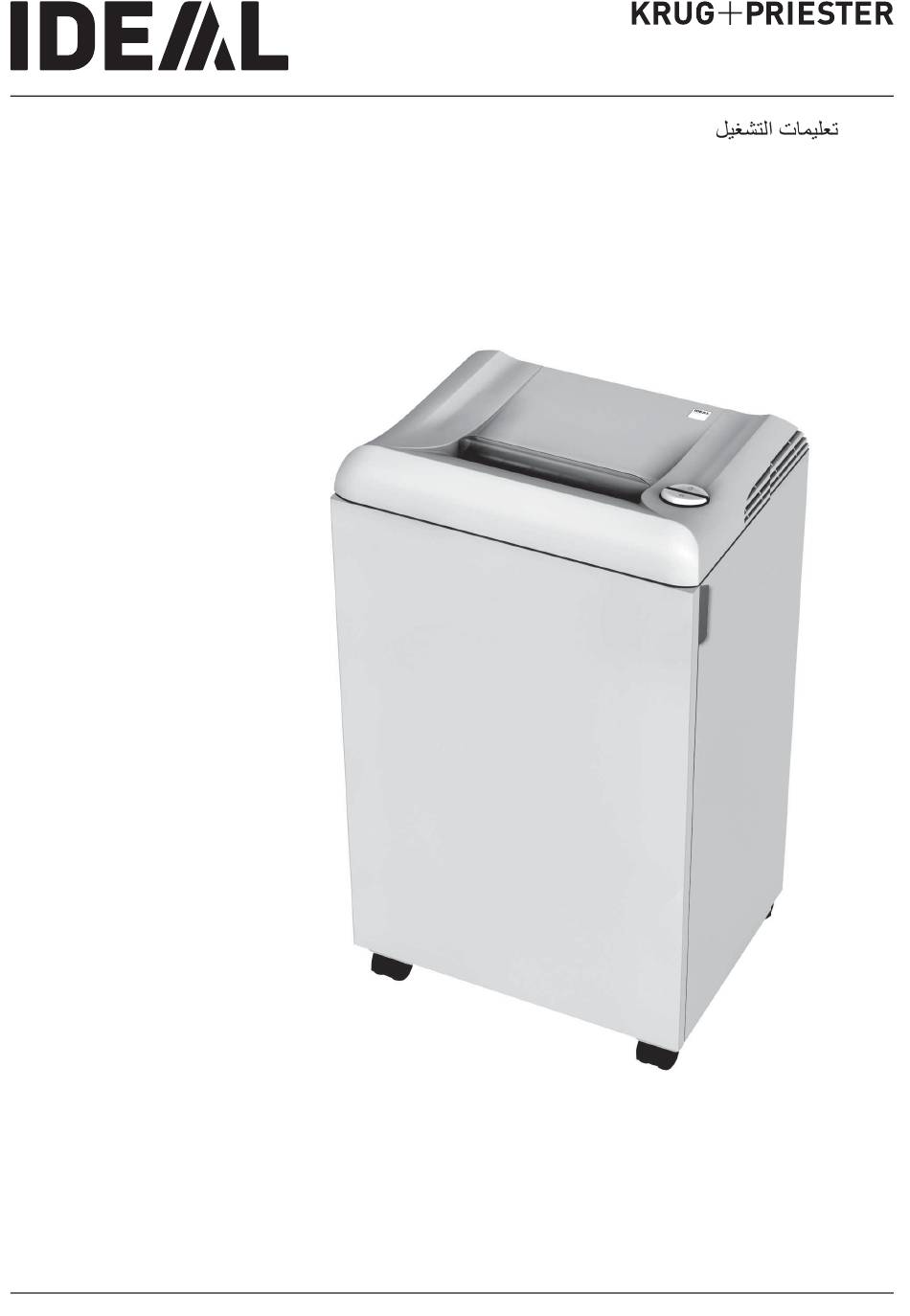

- Page 1 آ ﻟ ﺔ إ ﻓ ﻨ ﺎ ء ا ﻟ ﻤ ﻠ ﻔ ﺎ Document Shredders Operating Instructions IDEAL 2360 IDEAL 2360 CC IDEAL 2360 MC IDEAL 2360 SMC IDEAL 2503 IDEAL 2503 CC www.ideal.de...
- Page 2 Krug & Priester GmbH & Co. KG, Balingen warrants for at least 15 years, from date of production, the availability of spare parts for this paper shredder. For security levels P-1 to P 5 (according to DIN 66399) Krug & Priester grant a lifelong warranty against any breakage on the cutting shafts (see page 3) defi...
- Page 3 • • • تاميلعتلل قباطملا مادختسالا Intended use .. آﻟﺔ ﺗﻣزﯾﻖ اﻟورق ھذه ﻣﺧﺻﺻﺔ ﻟﻔرم اﻟورق . أﻋﻣدة اﻟﻘطﻊ اﻟﻣﻘواة اﻟﻣﺻﻧوﻋﺔ ﺑﺎﻟﻛﺎﻣل ﻣن اﻟﻔوﻻذ ﻏﯾر ﺣﺳﺎﺳﺔ ﻟﻠﻛﻣﯾﺎت اﻟﻘﻠﯾﻠﺔ ﻣن ﻣﺷﺎﺑك اﻟورق واﻟدﺑﺎﺑﺑﯾس. ﻻ ﯾﺳري ذﻟك ﻋﻠﻰ اﻟﻣودﯾﻼت اﻟﻣزودة ﺑﻘﺎطﻊ ﻣم أو أﺻﻐر. ﻓﻲ ھذه اﻟﺣﺎﻟﺔ ﯾﺟب ﺗﻔرﯾﻎ اﻟورق اﻟﻣراد ﻓرﻣﮫ ﻣن ﺟزﯾﺋﺎت...
- Page 4 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ Please read these operating instructions before putting the machine into operation and observe the safety precautions. The operating instructions must always be available. Long hair can become entangled in cutting head! Do not reach into the feed-opening of the cutting head! - 4 -...
- Page 5 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ Take care of ties and other loose pieces of clothing! Be careful of loose jewellery! Children must not operate the machine! - 5 - - 5 -...
- Page 6 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ !ﺗﺧﻠص ﻣن اﻟﺷواﺣن اﻟﺻﻐﯾرة / اﻟﺑطﺎرﯾﺎت Do not destroy accumulators/batteries! ! ةلباقلا داوملا عم ذاذرلا مادختسا مدع نيعتي قئاثولا فالتإ ةلآ نم برقلاب لاعتشالل Do not use any spray cans with fl...
- Page 7 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ The door must be closed when operating the document shredder! Ensure free access to mains 230V / 10A min. 120V / 15A min. ON/OFF ...
- Page 8 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ Automatic standby that switches off after 15 minutes. The machine can be switched off at any time by pressing the switch. Green LED control light is off.There will be no power consumption any more.
- Page 9 • • • Safety precautions إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ Do not operate the machine without the safety fl ap (A). - 9 - - 9 -...
- Page 10 • • • Installation ا ﻟ ﺘ ﺮ ﻛ ﻴ IDEAL 2360 Open the door and put the machine onto the cabinet so that the control panel is facing the door. Beware of fi ngers. Risk of injury! - 10 -...
- Page 11 • • • Installation ا ﻟ ﺘ ﺮ ﻛ ﻴ IDEAL 2503 Open the door, put the machine onto the cabinet and release. (See picture on the left). Beware of fi ngers! Risk of injury! Insert the enclosed plastic bag. - 11 - - 11 -...
- Page 12 • • • Installation ا ﻟ ﺘ ﺮ ﻛ ﻴ Close the door. Plug into the wall socket. - 12 -...
- Page 13 • • • Operation ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م Press the rocker switch (1.): green light is on, the machine is now ready for operation. Starts automatically when paper is inserted (2.). Automatic standby that switches off after 15 minutes.
- Page 14 • • • Operation ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م Stops automatically when door is opened Symbols fl ash alternatively. Stops automatically when shred bin ops automatically when shred bin is full. Empty the bin when "bin full" indicator lights.
- Page 15 • • • Operation ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م Stops automatically if too much paper is inserted. Automatic reverse if paper jams (Symbol "ON/OFF" fl ashes). If required: Press the rocker switch "R" and remove paper. (Machine runs for a short time in reverse, if required repeat several times).
- Page 16 • • • Operation ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م Reset by pressing the rocker switch Re-feed the paper in smaller quantities Automatic stop if safety flap (A) is opened (symbols flash alternatively). Close the safety flap and press the rocker switch , paper is shredded.
- Page 17 • • • Maintenance and cleaning ا ﻟ ﺼ ﻴ ﺎ ﻧ و ا ﻟ ﻌ ﻨ ﺎ ﻳ Straight cut No. 9000 611 If the sheet capacity reduces or after the shred bin is emptied oil the shredding mechanism! (see picture) With straight cut use the oiler (A) With particle cut use the oiler or or oil sheets (B)
- Page 18 • • َ ح ت • َ لة م ُ أعطال م Possible malfunctions Machine will not start Is the machine plugged in? Is the rocker switch pressed? The green light rocker switch is ON? (1.). Insert paper (2.). - 18 -...
- Page 19 َ ح ت • • َ لة م ُ أعطال م • Possible malfunctions Feed the paper into the centre of the feed opening? (photo cell) (A) Door open? Shred bin full? - 19 - - 19 -...
- Page 20 • • َ ح ت • َ لة م ُ أعطال م Possible malfunctions Safety fl ap open? Machine will not stop. Remove plug. Clean the photo cell (A) with a small brush. - 20 -...
- Page 21 َ ح ت • • َ لة م ُ أعطال م • Possible malfunctions Machine stops. Overload protection. Please let the machine cool down. • Symbols and "R" fl ash alternatively. • Symbol lights green, machine is ready for operation. - 21 - - 21 -...
- Page 22 • • َ ح ت • َ لة م ُ أعطال م Possible malfunctions أﻟم ﺗﺳﺎﻋدﻛم أي ﻣن اﻟﺣﻠول اﻟﻣذﻛورة أﻋﻼه؟ اﻻﺗﺻﺎل: اﻟﺧدﻣﺔ www.krug-priester.com • service@krug-priester.com • Did none of the specifi ed solutions help Service you with your problem? ...
- Page 23 IDEAL 2360, IDEAL 2503 9000 611 IDEAL 2360, IDEAL 2503 Environmentally friendly oil No. 9000 611 IDEAL 2360 CC, MC, SMC, IDEAL 2503 CC IDEAL 2503 CC No. 9000 631 IDEAL 2360, MC, SMC, IDEAL 2503 CC Oil sheets (18 Sheets) No.
- Page 24 IDEAL 2503, IDEAL 2465 EBA 1824 S IDEAL 2404 Do not shred paper clips and CD/DVD with model IDEAL 2360 CC and IDEAL 2360 MC and IDEAL 2360 SMC! To destroy CDs/DVDs IDEAL model 2465 and 2503, 4 mm is the suitable one.
- Page 25 • • • Technical Information ﻣ ﻌ ﻠ ﻮ ﻣ ﺎ ت ﻓ ﻨ ﻴ ﺔ 2014/30/EU 2014/35/EU This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2014/35/EU and 2014/30/EU. Sound level information: The sound level at the work place is less than the ISO 7779 standard’s maximum permissible level of <...
- Page 26 • • • Technical Information ﻣ ﻌ ﻠ ﻮ ﻣ ﺎ ت ﻓ ﻨ ﻴ ﺔ ةكرش ىدلKrug + Priester :ةيلاتلا تاداهشلا • قفو ةدوجلا ةرادإ ماظن DIN EN ISO 9001:2015 • قفو ةئيبلا ةرادإ ماظن DIN EN ISO 14001:2009 •...
- Page 27 • • • Technical Information ﻣ ﻌ ﻠ ﻮ ﻣ ﺎ ت ﻓ ﻨ ﻴ ﺔ Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material...
- Page 28 EC-declaration of conformity - Herewith we declare that GS- IDENT. No. UL-IDENT. No. 2360; 2360 CC; 2360 MC; 2360 SMC ID No. 11236001 ID No. 10236001 2503; 2503 CC; ID No. 11250203 ID No. 10250203 - complies with the following provisons applying to it 2014/30/EU: EMV Electromagnetic compatibility directive 2014/35/EU...
- Page 29 Remarks: - 29 - - 29 -...
- Page 30 Remarks: - 30 -...
- Page 31 Remarks: - 31 - - 31 -...
- Page 32 IDEAL • Made in Germany آ ﻟ ﺔ إ ﻓ ﻨ ﺎ ء ا ﻟ ﻤ ﻠ ﻔ ﺎ • • Document Shredders • • • • Trimmers and Guillotines • • Krug & Priester GmbH & Co KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) IDEAL 01-2016 30.10.2018 zm...
