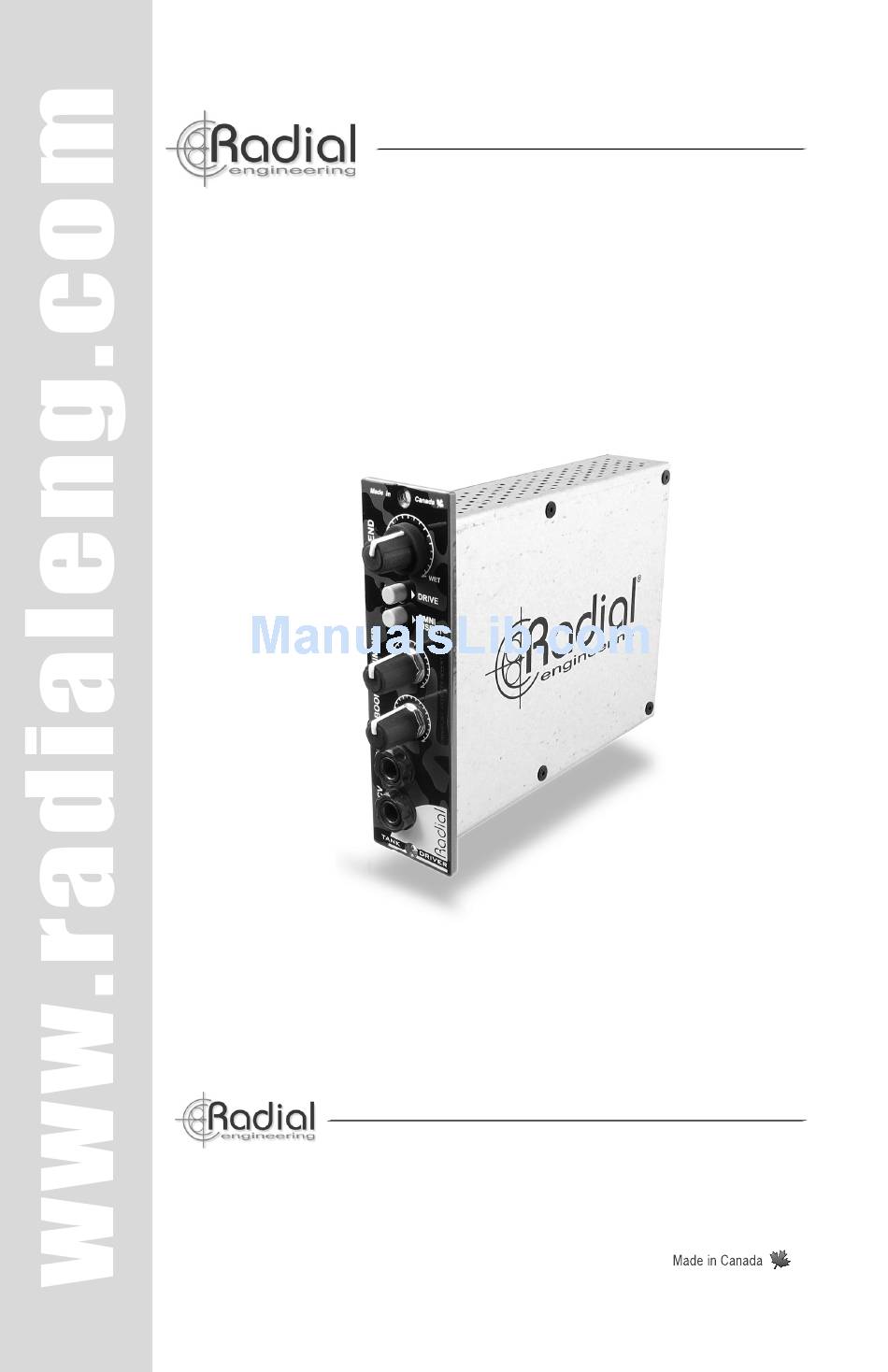

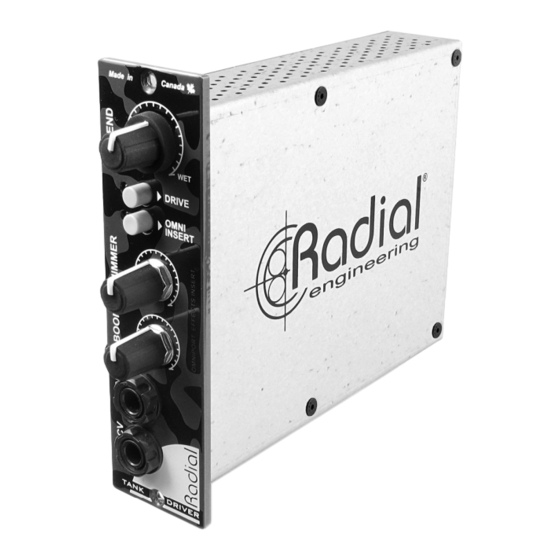

Page 1: User Guide
® True to the Music ™ TankDriver 500 Series Module User Guide ® True to the Music www.radialeng.com Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam British Columbia, Canada, V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 email: info@radialeng.com... -
Page 2: Table Of Contents
® ™ Radial TankDriver 500 User Guide Table of Contents ............Page Feature Set ..............1 Overview ................ 2 Getting Started ............... 2 Connecting A Reverb Tank ..........3 Specifi cations ..............4 Block Diagram ..............5 Warranty ............Back cover Congratulations and thank you for investing in what will possibly be one of the most fun products you have ever owned! No, not because of what it does on its own, but what you could potentially do as you experiment with the effects you will create trying various reverb... -
Page 3: Feature Set
7. OMNIPORT: Alternate send and receive ¼” TRS insert connection for a reverb tank. Available when installed in a Radial Workhorse. Rear Panel Radial Engineering Ltd. TankDriver™ 500 Module... -
Page 4: Overview
TankDriver’s input. The TankDriver will produce a balanced line output that can be connected to additional modules for further processing before connecting to the recording system. Mic/Inst. Preamp TankDriver Recorder Playback TankDriver Recorder Radial Engineering Ltd. TankDriver™ 500 Module... -
Page 5: Connecting A Reverb Tank
¼” TRS insert cable. This cleans up the front panel and allows permanent connection to a studio patchbay. Send - effect input Tip - Send 1/4" TRS Ring - Return Return - effect output Insert Cable: ¼” TRS to RCA Radial Engineering Ltd. TankDriver™ 500 Module... -
Page 6: Specifi Cations
® True to the Music RADIAL TANKDRIVER 500 SPECIFICATIONS Circuit Type: Class-A, transformer coupled Current Draw: 60mA, +/-16VDC (maximum draw) Frequency Response: 20Hz ~ 20KHz +/-1.0dB Input Impedance: 600 Ohms Maximum Input: +11dB Send Gain To Tank: Normal Drive: +10dB @ 4kHz... -
Page 7: Block Diagram
® True to the Music Radial Engineering Ltd. TankDriver™ 500 Module... - Page 8 THREE YEAR TRANSFERABLE LIMITED WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi nish and wear and tear on components under normal use) for a period of three (3) years from the original date of purchase.
