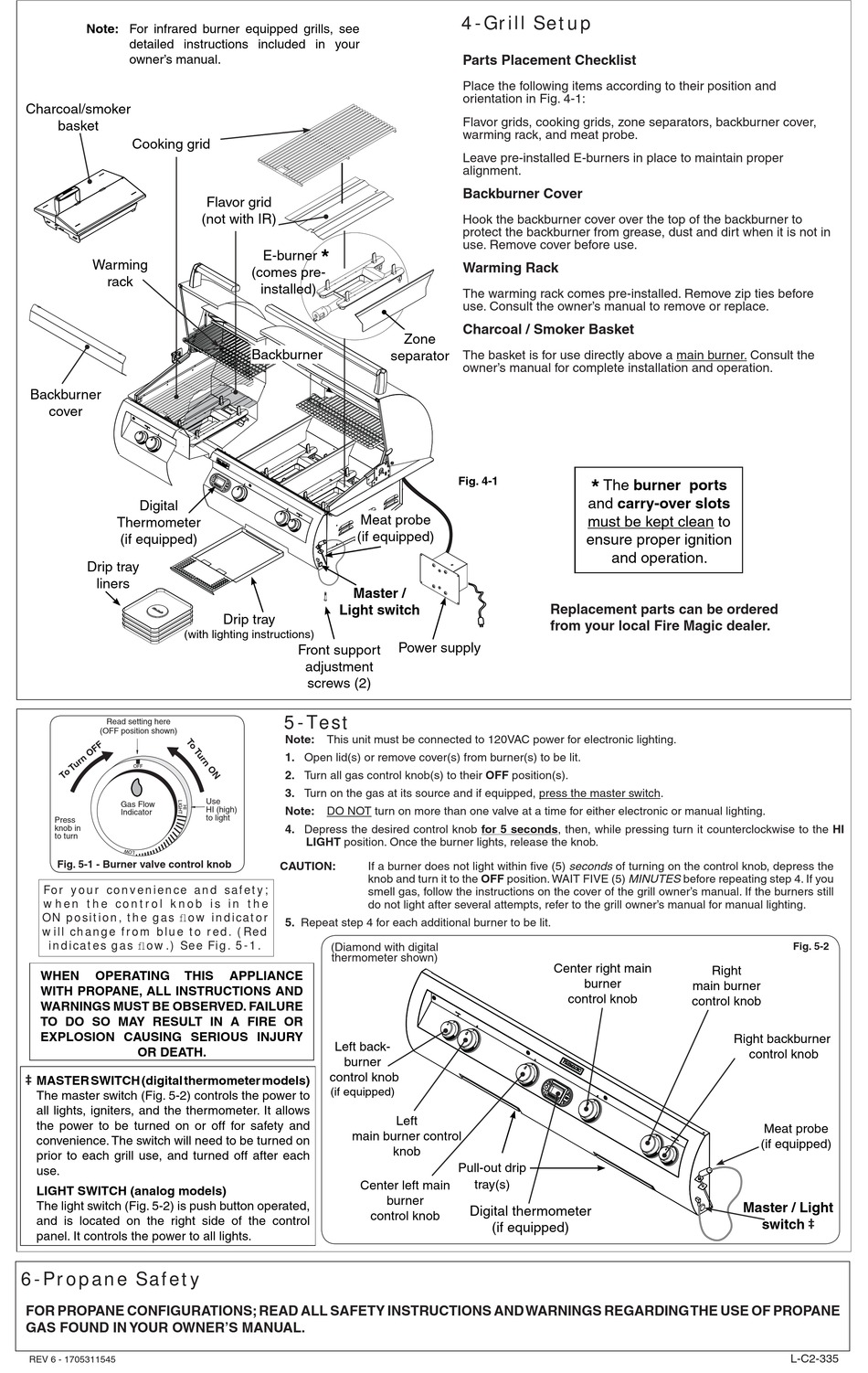

Grill Setup; Test; Propane Safety - FireMagic Echelon Diamond "A" Series Quick Start Manual

Note: For infrared burner equipped grills, see
detailed instructions included in your
owner's manual.
Charcoal/smoker
basket
Cooking grid
Warming
rack
Backburner
cover
Digital
Thermometer
(if equipped)
Drip tray
liners
(with lighting instructions)
Read setting here
Read setting
(OFF position shown)
here
OFF
Gas Flow
Indicator
Press
knob in
to turn
Fig. 5-1 - Burner valve control knob
For your convenience and safety;
when the control knob is in the
ON position, the gas fl ow indicator
will change from blue to red. (Red
indicates gas fl ow.) See Fig. 5-1.
WHEN OPERATING
WITH PROPANE, ALL INSTRUCTIONS AND
WARNINGS MUST BE OBSERVED. FAILURE
TO DO SO MAY RESULT IN A FIRE OR
EXPLOSION CAUSING SERIOUS INJURY
OR DEATH.
‡
MASTER SWITCH (digital thermometer models)
The master switch (Fig. 5-2) controls the power to
all lights, igniters, and the thermometer. It allows
the power to be turned on or off for safety and
convenience. The switch will need to be turned on
prior to each grill use, and turned off after each
use.
LIGHT SWITCH (analog models)
The light switch (Fig. 5-2) is push button operated,
and is located on the right side of the control
panel. It controls the power to all lights.

6-Propane Safety

FOR PROPANE CONFIGURATIONS; READ ALL SAFETY INSTRUCTIONS AND WARNINGS REGARDING THE USE OF PROPANE
GAS FOUND IN YOUR OWNER'S MANUAL.
REV 6 - 1705311545
Flavor grid
(not with IR)
*
E-burner
(comes pre-
installed)
Backburner
Light switch
Drip tray
Front support
adjustment
screws (2)

5-Test

Note: This unit must be connected to 120VAC power for electronic lighting.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source and if equipped, press the master switch.
Use HIGH to
LIGHT
HI (high) Note: DO NOT turn on more than one valve at a time for either electronic or manual lighting.
to light
4. Depress the desired control knob for 5 seconds, then, while pressing turn it counterclockwise to the HI
LIGHT position. Once the burner lights, release the knob.
CAUTION:
5. Repeat step 4 for each additional burner to be lit.
(Diamond with digital
thermometer shown)
THIS APPLIANCE
Left back-
burner
control knob
(if equipped)

4-Grill Setup

Parts Placement Checklist
Place the following items according to their position and
orientation in Fig. 4-1:
Flavor grids, cooking grids, zone separators, backburner cover,
warming rack, and meat probe.
Leave pre-installed E-burners in place to maintain proper
alignment.
Backburner Cover
Hook the backburner cover over the top of the backburner to
protect the backburner from grease, dust and dirt when it is not in
use. Remove cover before use.
Warming Rack
The warming rack comes pre-installed. Remove zip ties before
use. Consult the owner's manual to remove or replace.
Charcoal / Smoker Basket
Zone
separator The basket is for use directly above a main burner. Consult the
owner's manual for complete installation and operation.
Fig. 4-1
Meat probe
(if equipped)
Master /
Power supply
If a burner does not light within fi ve (5) seconds of turning on the control knob, depress the
knob and turn it to the OFF position. WAIT FIVE (5) MINUTES before repeating step 4. If you
smell gas, follow the instructions on the cover of the grill owner's manual. If the burners still
do not light after several attempts, refer to the grill owner's manual for manual lighting.
Left
main burner control
knob
Pull-out drip
tray(s)
Center left main
burner
Digital thermometer
control knob
(if equipped)
* The burner ports
and carry-over slots
must be kept clean to
ensure proper ignition
and operation.
Replacement parts can be ordered
from your local Fire Magic dealer.
Center right main
Right
burner
main burner
control knob
control knob
Fig. 5-2
Right backburner
control knob
Meat probe
(if equipped)
Master / Light
‡
switch
