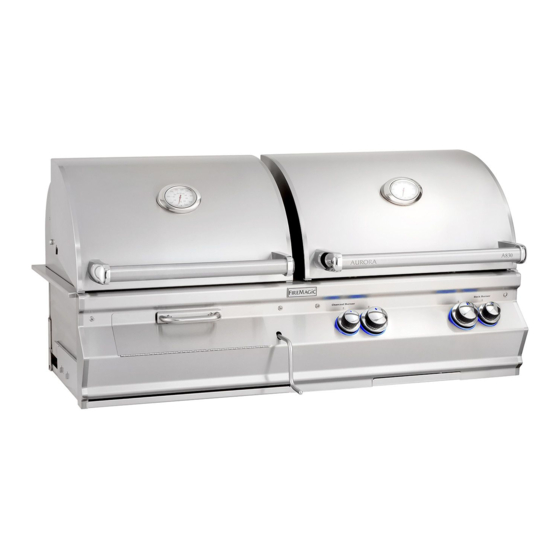

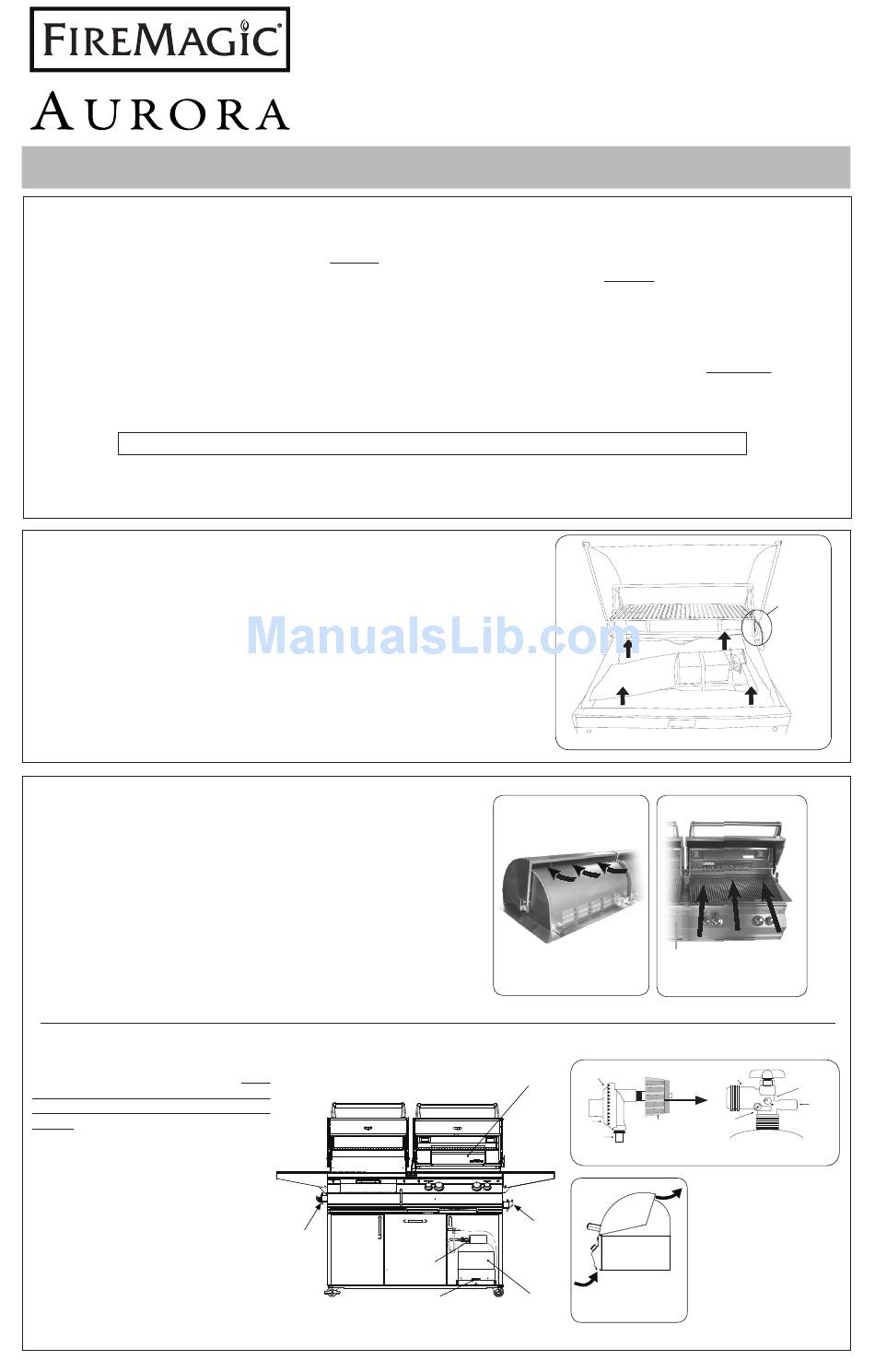

FireMagic Aurora series Quick Start Manual

IMPORTANT: You must read the installation and owner's manual provided with the grill.
1-Safety
CAUTION: WHEN INSTALLING AND OPERATING THIS APPLIANCE,
YOUR OWNER'S MANUAL MUST BE OBSERVED.
OR EXPLOSION CAUSING PROPERTY DAMAGE, BODILY INJURY, OR DEATH.
This grill must be installed in accordance with local codes and ordinances, or, in the absence of local codes, with either the latest National Fuel Gas Code (ANSI
Z223.1/NFPA 54), and Natural Gas and Propane Storage and Handling Installation Code (CSA-B149.1).
This appliance and its individual shutoff valves must be disconnected from the gas-supply piping system when testing the system at pressures in excess of ½ psig.
This appliance must be isolated from the gas-supply piping system by closing its dedicated manual shutoff valve during any pressure testing of the gas-supply
system at pressures up to and including ½ psig.
This grill is designed for outdoor use only. DO NOT use this grill inside a building, garage, enclosed area, or under overhead combustible construction.
DO NOT use this grill in or on a recreational vehicle or boat.
A minimum 5 foot clearance is required between the cooking surface and the overhead construction.
Installation must be performed by a qualified professional ser vice technician.
Installation must be performed by a qualified professional ser vice technician.
2-Unpacking
Carefully unpack the grill, removing all packing material and protective film (including the clear
film on the drip tray). Verify that all parts have arrived undamaged by consulting the parts list
in the owner's manual. Remove foam packed hardware from oven area. (See Fig. 2-1.)
Consult the parts list in the owner's manual. If any parts are missing or damaged, immediately
contact the Fire Magic dealer before beginning installation.
3-Installation
Location
Locate the grill on a flat level surface. Refer to the INSTALLATION
REQUIREMENTS section of your grill owner's manual for complete details.
CAUTION: Wind blowing into or across the rear oven lid vent (Fig.
3-1) can cause poor performance and/or dangerous
overheating. Orient the grill so that the prevailing wind
blows toward the front of the grill (Fig. 3-2).
CAUTION: To prevent dangerous overheating, the rear of the unit must have
a minimum clearance of 4" from any non-combustible wall.
Connect Gas supply
These quick start instructions assume a
propane cylinder configured unit.
main instructions for natural gas
or household propane configured
units.
Place approved propane 20 lb cylinder in
tank tray and lock holder in position (Fig. 3-3).
Connect quick coupler hose and regulator
supplied with unit to propane cylinder (Fig.
3-4).
Turn all burner control knobs to the OFF
position. Open the main cylinder valve. Then
carefully check all gas connections for leaks
with a brush and half-soap/half-water solution
before lighting. NEVER USE A MATCH OR
OPEN FLAME TO TEST FOR LEAKS.
Proper grill airflow must be maintained as
shown in Fig. 3-5.
REV 1 - 1804201455
Stand Alone Outdoor
Combo Grill Quick Start Guide
INSTALLER: Leave these instructions with consumer.
See
Tool
holder
CONSUMER: Retain for future reference.
ALL INSTRUCTIONS AND WARNINGS IN
FAILURE TO DO SO MAY RESULT IN A FIRE
INCORRECT
Rear oven lid vent
YOU MUST PROTECT
REAR OVEN VENT FROM
PREVAILING WIND
Fig. 3-1
Backburner
cover (if
equipped)
Paper towel
holder
Quick
coupler
Propane
Tank tray
cylinder (tank)
latch
Fig. 3-3
Lift out foam packed hardware
Fig. 2-1
CORRECT
PLACE GRILL SO PREVAILING
WIND BLOWS TOWARD FRONT
OF GRILL
Fig. 3-2
Brass Acme
Regulator
thread fitting
Liquid level
Vent
indicator
Hand nut with
Hose (optional)
Acme thread
Fig. 3-4 Type I Acme thread quick coupler
To connect the regulator/
hose assembly to the
propane-gas cylinder
valve fitting: Press the
hand nut on the regulator
over the Acme thread fitting
on the cylinder valve. Turn
the hand nut clockwise to
engage the threads and
Ventilation diagram
tighten until snug.
Fig. 3-5
Remove plastic
zip-ties
Hand wheel
QCC
Type 1
valve
U
L
Pressure
relief
valve
L-C2-480
