FabiaTech FX5632 Series Users Quick Reference

Version 1.0
1. Brief
The FX5632x is a compact size embedded system with Intel Pentium-M/Celeron-M processor board
inside. This user's quick reference provides the I/O outlets description and their pin assignment.

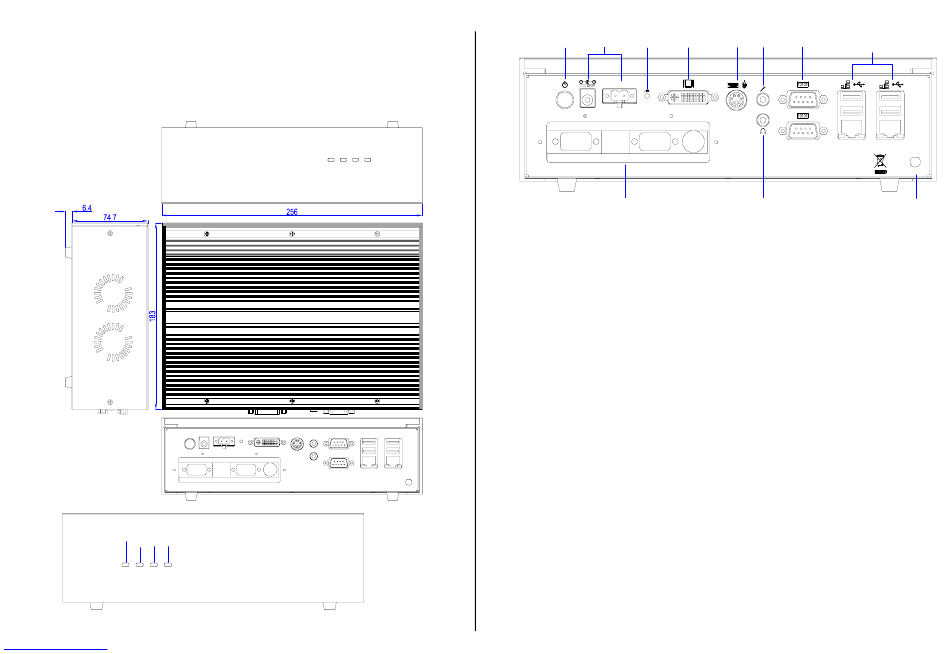

2. Dimensions (in mm) and Front/Rear Panel Information
GIGA GIGA
POWER
LAN2 LAN1
HDD
www.fabiatech.com
FX5632 Series User's Quick Reference
(Front Panel)
SWITCH DC IN 12~24V RESET
DC12~24V
PCI
3. Packing List
1 FX5632x embedded system.
1 AC to DC power adapter and 1 AC power code cable.
1 3-end keyboard and mouse adapter cable.
1 DVI to CRT adapter cable.
1 pack of 2.5" hard disk installation kit with fixed screws and a 2-pin apartable terminal block.
1 compact disc includes software utility and 1 hard copies of this quick reference.
4. Features
* Processor Board
Intel Pentium-M or Celeron-M processor with 512MB DDR-RAM.
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
4 USB, 2 RS-232, and PS/2 compatible keyboard/Mouse ports.
1 mini-PCI socket for mini-PCI I/O modules, especially for WLAN modules with Antenna fix hole.
1 DVI connector with CRT signals and 2 Audio connectors for Earphone and Microphone.
1 free PCI slot for Add-On cards.
1 DC-In jack connector/terminal block with 1 power and 1 reset push button switches.
1 power LED, 1 HDD/CF access LED, and 2 LAN LEDs.
* Storage Bay
1 CompactFlash slot with ejector.
One 2.5" hard disk space.
* Power requirement
FX5632: +12 ~ +24V DC with 15% tolerance, 34VA maximum with 2.5" HDD & 19V input voltage.
FX5632A: +12 ~ +24V DC with 15% tolerance, 42VA maximum with 2.5" HDD & 19V input voltage.
* Dimensions
183mm(D) x 256mm(W) x 75mm(H)
COM
DVI(CRT) MOUSE/KB MIC
1
1
/
2
EAR-PHONE
(Rear Panel)
©2007 FabiaTech Corporation
Page 1/3
GIGA LAN
USB
2
Antenna
ANTENNA
