FabiaTech FX5327 Series Users Quick Reference

Version 1.1

1. Brief

The FX5327x is a compact size embedded system with Intel® N3160™ processor board inside. This
user's quick reference provides the I/O outlets description and their pin assignment.

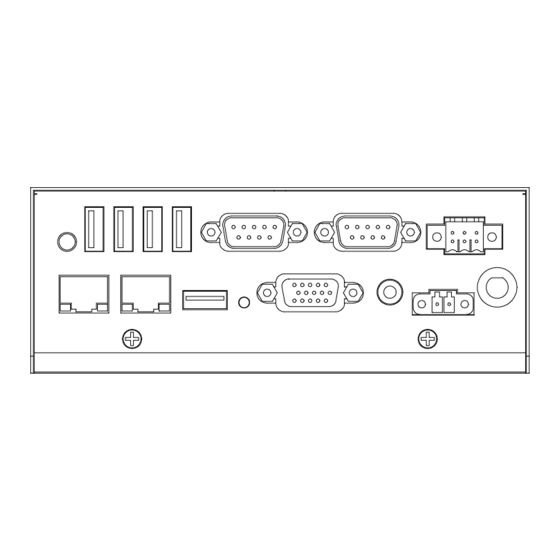

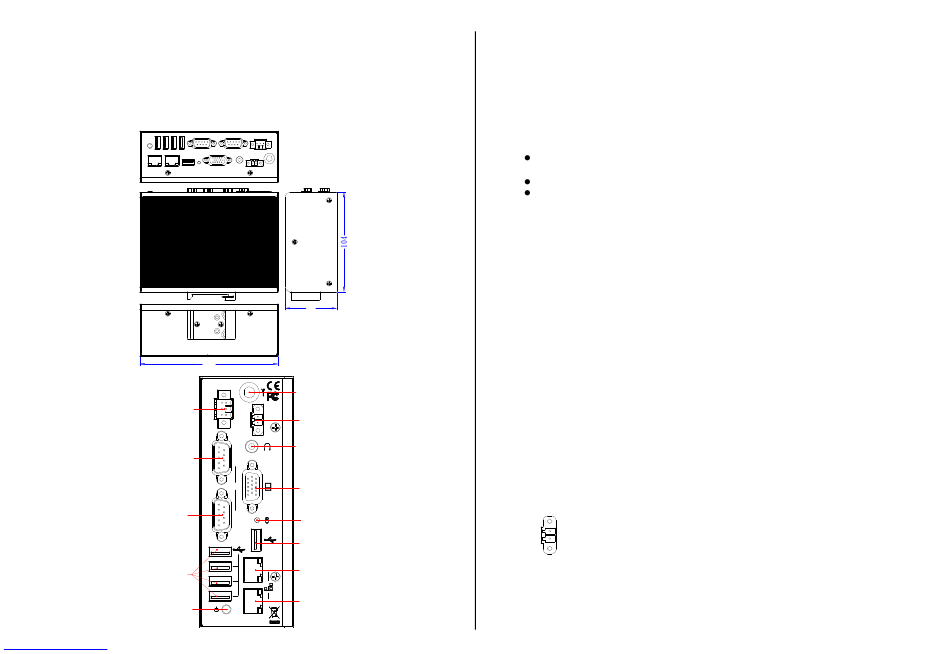

2. Dimensions (in mm) and Front Panel Information

DIGITAL I/O
COM2/CAN
COM1
USB
POWER
BUTTON
www.fabiatech.com
FX5327 Series User's Quick Reference
54
145
DC ANTENNA
12~40V
-
+
1 1
DC IN
0 0 +
9~32V
DC IN
-
DO DI
EAR-PHONE
CAN
/
2
COM CRT
1
HDD
USB
2
LAN2
LAN1
1

3. Packing List

A. Standard Items
1 FX5327x embedded system.
1 pack of 2 apartable terminal blocks, 2-pin for power input and 6-pin for isolated digital I/Os.
1 pack of Din-rail kit.(1 piece of metals with 2 screws)
1 pack of (4+2) screws for 2.5" SATA HDD installation and mini-card installation.
1 compact disc includes software utilities and manuals.
B. Optional Items
Half size mini PCIe module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N:
0606010028G)
Panel back mounting kit #1 (FX5311K1, 1 piece of metal with 2 screws, P/N: 0606010019G)
Panel back mounting kit #2 (FX5407K3, 2 pieces of metal with 12 screws, P/N: 0606010038R)

4. Features

* Processor Board
Intel® N3160™ (1.6GHz to 2.24GHz, 4C/4T, 2MB Cache, 1600MHz FSB, 6 Watts) low power
processor with 4GB (4GB maximum) DDR3L RAM.
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports with LEDs.
5 USB (V3.0*1), 1 RS-232, and 1 RS-232/CAN serial ports.
1 VGA and 1 Audio (Earphone) connectors,
1 terminal block for power input and 1 power button.
1 terminal block for 4 isolated digital I/Os.
1 HDD/CFast access LED and 1 antenna installation hole.
* Storage Bay
1 CFast socket and 1 SD socket.
1 mini PCIe socket with 1 SIM socket.
One 2.5" SATA hard disk space.
* Power requirement
+9 ~ +32V DC, 2.1A maximum (1.1A typical) with 19V input voltage.
* Dimensions
104.0mm(D) x 54.0mm(W) x 145.0mm(H) without Din-rail kit.

5. I/O outlets and LED Indicators

A. Power Connector (DC +9 to +32V, 50W minimum)
+
DC IN
-
9V~32V
Terminal Block
B. LAN LED Indicators (RJ45)
The LAN port is a RJ45 connector with 2 LEDs. The orange LED indicates data is accessing and
the green LED indicates on-line status.
