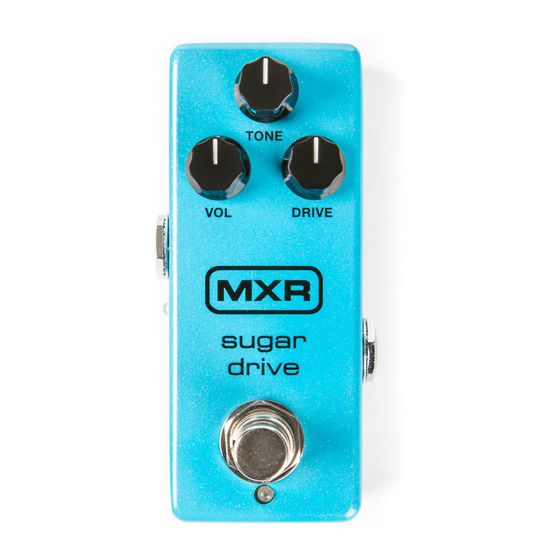

- Page 1 M294 Sugar Drive ™ Based on a rare and mythical overdrive pedal, the Sugar Drive provides a diverse range of clear and transparent tones, from sauced up boosting to rich overdrive. jimdunlop.com/m294 92503021625REVA...
- Page 2 (indicated by blue LED) 5 FOOTSWITCH toggles effect on/bypass (blue LED indicates on) By default, the M294 is set to true bypass switching For buffered bypass switching, set the BUFFER switch to its RIGHT position. M294 | Sugar Drive 2...
-
Page 3: Basic Operation
Basic Operation Power The MXR Sugar Drive is powered by the included Dunlop ECB003 9-volt adapter or the DC Brick™ and Iso-Brick™ power supplies. Operation 1 Start with all controls at 12 o’clock. 2 Turn the effect on by depressing the FOOTSWITCH. -
Page 4: Specifications
-20 dB @ 3 kHz Current Draw 18.5 mA @ 9 VDC Power Requirements 9 VDC (ECB003 AC adapter) Throughput Gain up to +50 dB @ 1kHz All measurements made at 1 kHz, speed at mid position. M294 | Sugar Drive 4...
