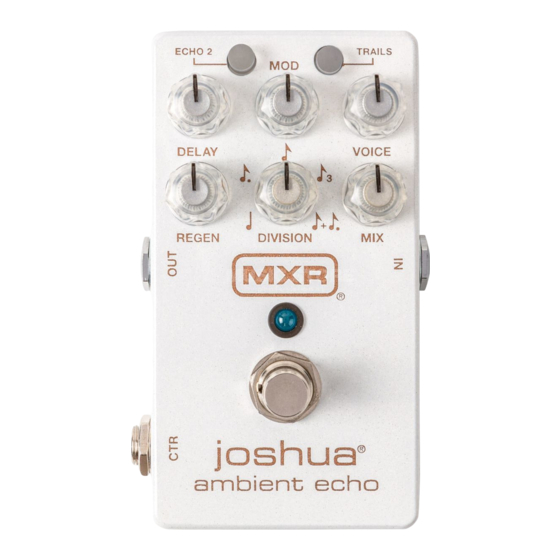

The MXR Joshua Ambient Echo is a one-stop shop
sunk deep into iconic soundscapes, from tonal trips
out of the '60s and '70s to the ethereal ambience
of the '80s soundscapes. Once upon a time, it took
a whole rack processor to get these tones, but this
pedal comes with everything you need to capture that
distinct tonal palette in a modern and user-friendly
format—and it's already dialed in and ready to go.
jimdunlop.com/m309
Advertisement
Table of Contents
Related Manuals for mxr Joshua Ambient Echo
Summary of Contents for mxr Joshua Ambient Echo
- Page 1 Joshua Ambient Echo ® The MXR Joshua Ambient Echo is a one-stop shop sunk deep into iconic soundscapes, from tonal trips out of the ’60s and ’70s to the ethereal ambience of the ’80s soundscapes. Once upon a time, it took...
-
Page 2: External Controls
7 VOICE knob adjusts mix of -1, +1, and +2 octave signal blend 8 MOD knob adjusts intensity of modulation MIX knob adjusts overall volume of effect signal 10 DIVISION knob selects ratio of primary echoes to the tempo M309 | MXR Joshua Ambient Echo 2 ®... -
Page 3: Basic Operation
Run a cable from your instrument to the Joshua Ambient ® ® Echo’s INPUT jack and run another cable from the Joshua (300mA) and can be powered by the Dunlop ECB003 9-volt adapter or the MXR Iso-Brick Pro, Ambient Echo’s OUTPUT jack to your amplifier. ®... -
Page 4: Advanced Operation
USE AN OFF-BOARD TAP SWITCH TO CONTROL TEMPO An off-board tap switch such as the M231 MXR TRS Split + Tap can be used to control the tempo of echoes. First, set the CTR switch to its TAP/EXP (left) position Next, run a standard mono patch cable from the tap switch’s... -
Page 5: Advanced Settings
RESTORE DEFAULTS To return all parameters to their default settings, simply press and hold ECHO 2 and TRAILS buttons for five seconds—the main LED will flash to confirm. M309 | MXR Joshua Ambient Echo 5 ® ®... -
Page 6: Specifications
Specifications Input Impedance 1MΩ Output Impedance 100 Ω Maximum Input Level +5 dBV Noise Floor -97 dBV Current Draw 300 mA Power Supply 9 volts DC M309 | MXR Joshua Ambient Echo 6 ® ®...
