Mxr M82 bass envelope filter - Music Pedal Manual

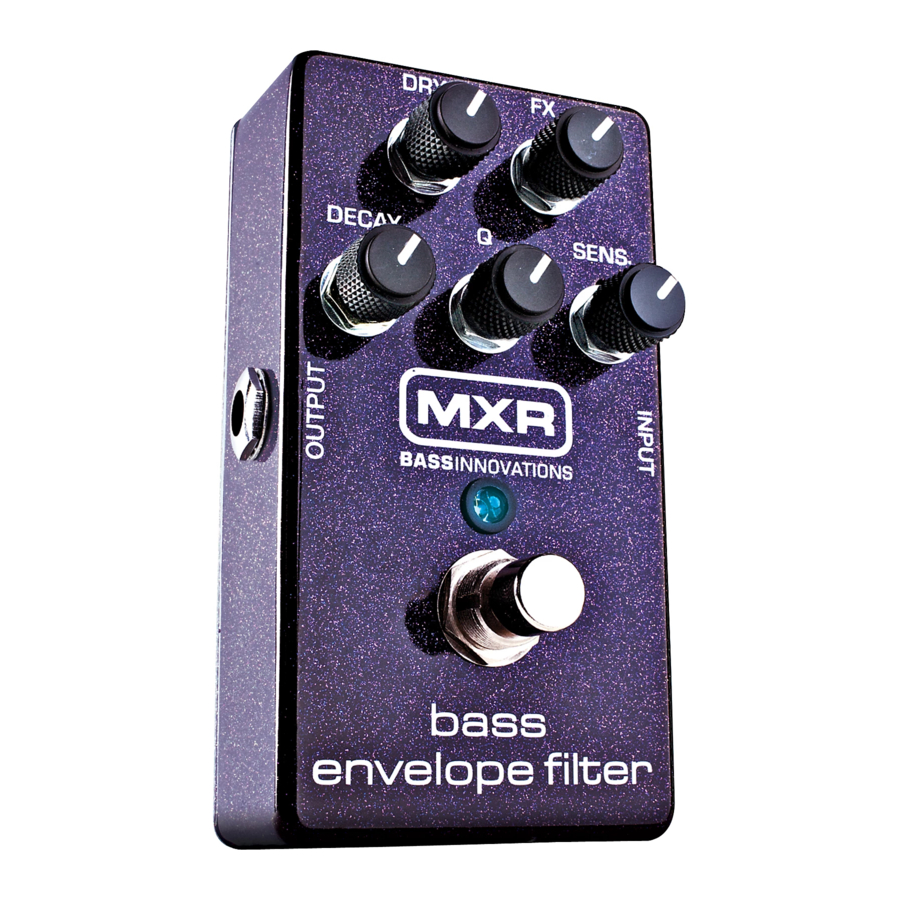

DESCRIPTION
- Classic envelope filter sounds
- All-analog circuitry for rich, organic tone
- Separate DRY and FX level controls for preserving low end
- True bypass
POWER
The MXR Bass Envelope Filter is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick ™ power supply.
CONTROLS
- DRY knob controls volume of unaffected signal
- FX knob controls volume of envelope filter signal
- DECAY knob sets envelope filter's decay stop frequency
- Q knob controls intensity of effect
- SENS. knob adjusts the sensitivity of envelope filter to your attack
- FOOTSWITCH toggles effect on/bypass (blue LED indicates on)
DIRECTIONS
- Run a cable from your bass to the Bass Envelope Filter's INPUT jack and run another cable from the Bass Envelope Filter's OUTPUT jack to your amplifier.
- Start with all controls at 12 o'clock.
- Turn the effect on by depressing the footswitch.
- Rotate the DRY knob clockwise to increase volume of unaffected signal or counterclockwise to decrease it.
- Rotate the DECAY knob clockwise to raise decay stop frequency or counterclockwise to lower it.
- Rotate the Q knob clockwise to increase intensity of effect or counterclockwise to decrease it.
- Rotate the SENS. knob clockwise to increase envelope filter's sensitivity to your attack or counterclockwise to decrease it.
SAMPLE SETTINGS
*ADJUST SENS. AS NEEDED TO ALLOW FOR INSTRUMENT OUTPUT LEVEL VARIATIONS
SPECIFICATIONS
| Input Impedance | 1 MΩ |
| Output Impedance | 100 Ω |
| Max Input Level* | -15 dBV |
| Max Output Level | +8 dBV |
| Noise Floor* | -94 dBV |
| Filter Sweep (fc) | 76 Hz to 3.2 kHz |
| Sensitivity Range | 46 dB |
| Max Sensitivity at 500 Hz | |
| f c = 3.2 kHz | -23 dBV |
| f c = 100 kHz | -39 dBV |
| Decay Stop Freq. | 76 Hz to 1.3 kHz |
| Filter Gain at fc | |
| Q Min, f c = 76 Hz | +8 dB |
| Q Max, f c = 76 Hz | +18 dB |
| Q Min, f c = 3.2 kHz | +8 dB |
| Q Max, f c = 3.2 kHz | +26 dB |
| FX Range** | -∞ to 0 dB |
| Dry Range | -∞ to +6 dB |
| Bypass | True Hardwire |
| Current Draw | 6 mA |
| Power Supply | 9 volts DC |
*A-weighted, all controls at mid position.
** Relative to filter gain
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722
FAX: 1-707-745-2658
